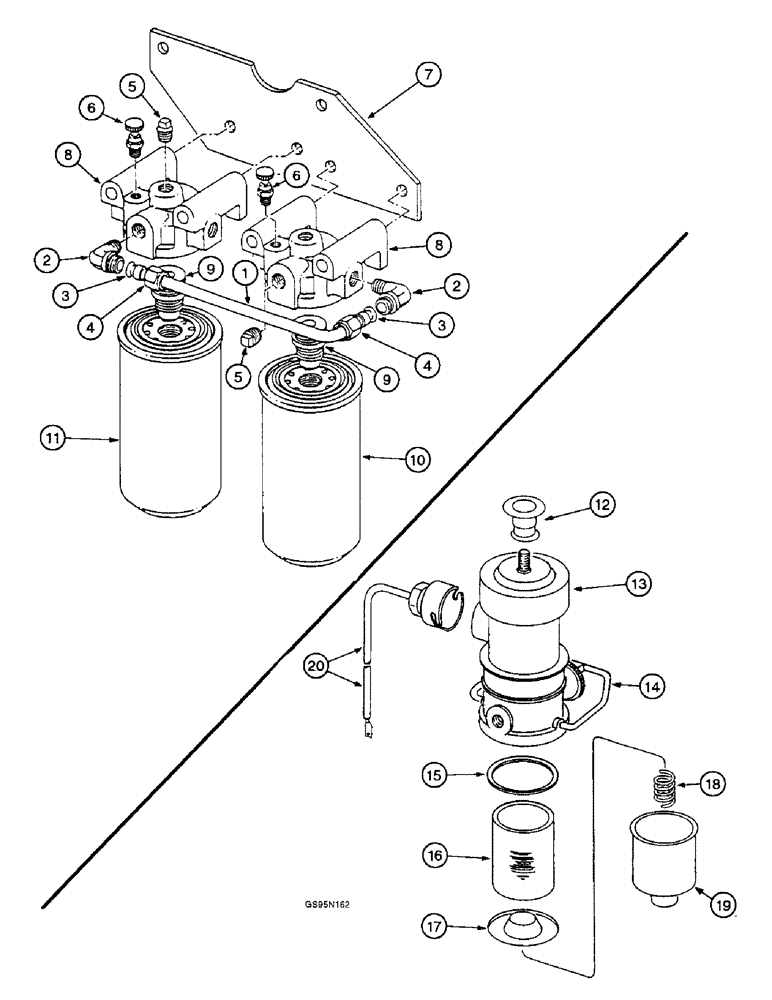

Запчасти Case IH D-236 (4-38) - FUEL FILTER, SPIN-ON TYPE / ELECTRIC FUEL PUMP

1

670149C11

TUBE

- primary filter to final filter

1шт.

2

222-4047

ELBOW

- 90 degree compression x 3/8 tube OD x 1/4 inch PT, primary filter outlet (Replaces elbow 606845C1)

2шт.

3

222-104

SLEEVE,3/8" Tube

- tube, 3/8 inch OD (Replaces sleeve 265204R1)

2шт.

4

222-114

NUT,5/8"-24

NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1)

2шт.

5

221-841

PLUG

- hex socket, 1/4 inch PT (Replaces plug 444654)

1шт.

6

39677DA

VALVE

- bleeder

1шт.

7

670259C1

BRACKET - filter mounting, no longer available

1шт.

8

612277C2

FILTER HEAD

HEADER ASSEMBLY - filter, Includes: Ref. 9

2шт.

9

612275C1

RETAINER - header, no longer available

2шт.

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch (Replaces bolt 186285)

4шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened (Replaces washer 103341)

4шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 102635) 3/8"-16, G5

4шт.

10

702252C1

FILTER

- final fuel, no longer used, order filter 702253C1

1шт.

10

702253C1

FILTER CARTRIDGE

FILTER - final fuel, will work for filter 702142C1 (Replaces filter 702252C1)

1шт.

11

A184772

FILTER, ELEMENT

FILTER - primary fuel, will work for filter 702250C1 (Replaces filter 625625C1)

1шт.

11

A184773

SEPARATOR

FILTER - primary fuel, will work for filters 702251C1 and 625628C1 (Replaces filter 625627C1)

1шт.

891588C91

PUMP

ASSEMBLY - electric, 12 volt (Replaces pump assembly 306274R91), Includes: Ref. 12 - 20

1шт.

12

313602R1

COVER - rubber pulse chamber, no longer available

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - pump, order pump assembly 891588C91

1шт.

14

313603R91

BAIL - pump

1шт.

15

313604R1

GASKET

- fuel pump, no longer available

1шт.

16

313606R1

FILTER CARTRIDGE

FILTER - fuel bowl

1шт.

17

313607R1

BASE

- fuel bowl, no longer available

1шт.

18

313608R1

SPRING - fuel filter base, no longer available

1шт.

19

313605R1

BOWL - fuel filter pump

1шт.

20

306396R1

CONNECTOR - terminal, no longer available

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

2шт.

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

(Replaces screw 180034) Hex, 1/4"-20 x 1 1/2", G5

1шт.

425-114

NUT,1/4"-28, G5

- hex jam, 1/4 inch NC

1шт.
