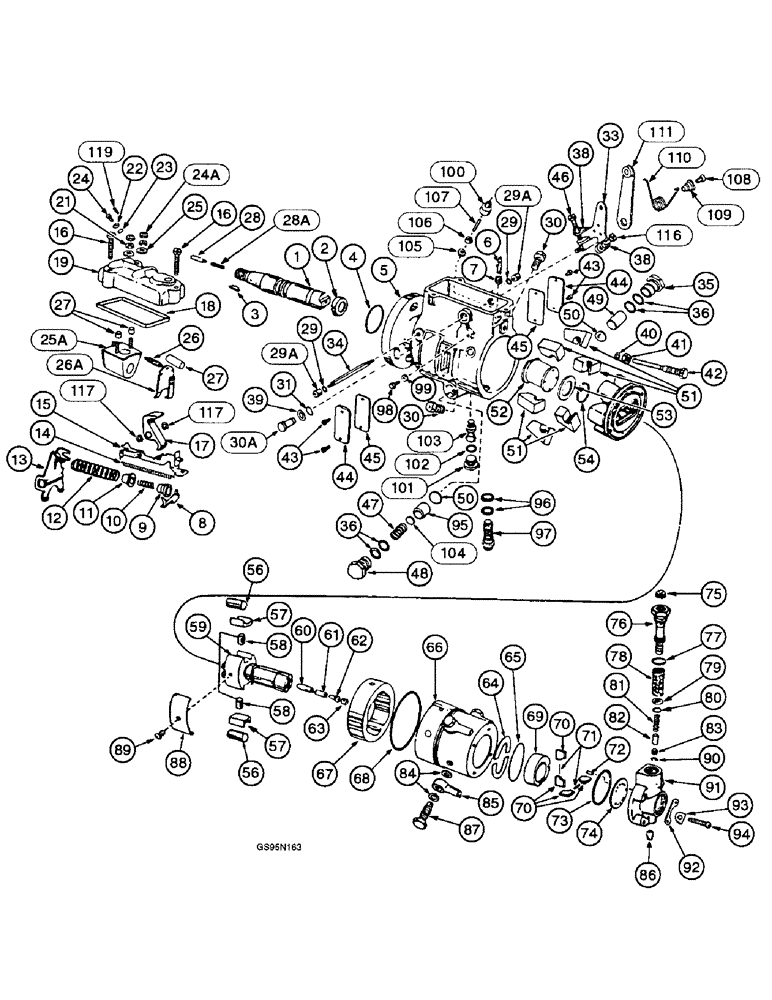

Запчасти Case IH D-236 (4-20) - FUEL INJECTION PUMP

749546C91

PUMP ASSEMBLY - fuel injection, remanufactured for 702154C91 (North America only), no longer available

1шт.

702154C91

PUMP ASSEMBLY - fuel injection, new, no longer available

1шт.

749549C91

PUMP ASSEMBLY - fuel injection, remanufactured for 619601C91 (North America only), used with 315 combines, no longer available

1шт.

619601C91

PUMP ASSEMBLY - fuel injection, new, 315 combines, Includes: Ref. 1 - 119, no longer available

1шт.

1

A44710

SHAFT

- drive (Replaces shaft 304715R1)

1шт.

2

R14711

SEAL

- oil, drive shaft (Replaces seal 313288R1)

2шт.

3

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

(Replaces key 124546) #6, 5/32" x 5/8", HT

1шт.

4

238-5215

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- 1-1/16 ID x 1/8 inch (Replaces seal 304720R1)

1шт.

5

702858C91

HOUSING

ASSEMBLY - pump, Includes: Ref. 5A

1шт.

5a

619449C1

BUSHING

- housing (Not Shown), no longer available

2шт.

6

304746R1

VALVE SPRING

SPRING - metering valve

1шт.

7

615773C1

VALVE - metering, used with pump 702154C91, no longer available

1шт.

7

313673R1

LOCK VALVE

VALVE - metering, used with pump 619601C91

1шт.

313286R1

WASHER

SHIM - metering valve

1шт.

8

324188R91

ARM

- metering valve

1шт.

9

368015R1

RETAINER - idling spring

1шт.

10

304810R1

SPRING

- idling, no longer available

1шт.

11

367998R1

GUIDE

- idling spring

1шт.

12

606450C1

SPRING - governor control, pump 702154C91, no longer available

1шт.

12

307814R1

SPRING - governor control, pump 619601C91

1шт.

13

321367R1

ARM

- governor

1шт.

14

367995R1

VALVE SPRING

SPRING - governor linkage

1шт.

15

702350C1

LINKAGE

HOOK - governor linkage

1шт.

16

319674R1

SCREW

- cover hold-down, no longer available

3шт.

319676R1

WASHER

- cover screw

3шт.

138534

LOCK WASHER,Int Tooth, #10

WASHER - lock, cover screw (Replaces washer 111545)

3шт.

17

304794R1

LEVER

- throttle shaft

1шт.

627313C91

SOLENOID

RELAY - injection pump

1шт.

313676R92

COVER

AND SOLENOID ASSEMBLY - injection pump, Includes: Ref. 18 - 27A

1шт.

18

368012R1

SEAL

RING - seal, control cover

1шт.

19

308614R1

COVER - control

1шт.

21

308618R1

NUT - contact screw retaining

2шт.

22

395-31022

WASHER,#10

- low idle screw hole plug, flat, 7/32 x 1/2 x 1/16 inch, used with pump 702154C91

1шт.

22

304728R1

WASHER

- low idle screw hole plug, used with pump 619601C91

1шт.

23

304721R1

SEAL

- low idle screw hole plug (Replaces seal 304729R1)

1шт.

24

217920

COVER

SCREW - low idle hole plug, pump 702154C91, no longer available

1шт.

24a

321314R3

NUT

- lock, terminal contact, no longer available

2шт.

25

308617R1

WASHER - contact screw

2шт.

25a

691360C91

SWITCH

FRAME - solenoid (Replaces frame 321695R92)

1шт.

26

308616R1

VALVE SPRING

SPRING - shut-down coil, no longer available

1шт.

26a

308615R91

LEVER

ARM - shut-down

1шт.

27

1807718C1

TUBE

- cover, insulating (Replaces tube 308619R1)

2шт.

27a

603103C1

SLEEVE - shut-down coil arm spring, no longer available

1шт.

28

304716R1

KNOB

BUTTON - thrust

1шт.

28a

G48502

SPRING

- thrust button (Replaces spring 304717R1)

1шт.

29

304721R1

SEAL

- pivot shaft

2шт.

29a

368018R1

NUT

- pivot shaft retaining

2шт.

30

368810R1

SCREW - head locking

2шт.

30a

691424C1

SHAFT - shut off (Replaces shaft 615828C1)

1шт.

31

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Throttle shaft

2шт.

33

691471C1

SHAFT

- throttle (Replaces shaft 702393C1)

1шт.

34

368016R1

SHAFT

- governor arm pivot

1шт.

35

319728R1

PLUG - piston hole power, no longer available

1шт.

36

319687R1

WIPER SEAL

- advance piston hole plug

4шт.

38

51200274

NUT

- idle adjusting (Replaces nut 368009R1)

2шт.

39

R22936

WASHER

- throttle shaft seal (Replaces washer 319744R1)

2шт.

40

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Guide stud (Replaces seal 352219R1)

1шт.

41

304742R1

NUT

- governor idling spring guide stud

1шт.

42

304793R1

STUD

- governor idling spring

1шт.

43

134213

SCREW,Sl Oval Hd, #8 - 32 x 5/16"

- cover

4шт.

44

304740R1

COVER ASSY

COVER - timing line

2шт.

45

51200272

GASKET

- cover (Replaces gasket 367979R1)

2шт.

46

627588C1

SCREW - high idle adjusting, pump 702154C91, no longer used

1шт.

46

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- high idle adjusting, pump 619601C91

1шт.

47

304799R1

SPRING - outer advance

1шт.

48

319684R1

PLUG - piston hole spring, no longer available

1шт.

49

1802902C1

PISTON

- power (Replaces piston 338980R1)

1шт.

50

368035R1

WASHER

- advance slide

2шт.

51

319669R1

WEIGHT

- governor

6шт.

52

321369R1

ARM

SLEEVE - governor thrust, no longer available

1шт.

53

368342R1

THRUST WASHER

- governor sleeve thrust

1шт.

54

100-1193

SNAP RING,#93, Ext

Ring, Snap, , governor cage (Replaces ring 368345R1) #93, Ext

1шт.

55

627946C91

RETAINER

- governor weight, not shown (Replaces retainer 702586C91)

1шт.

56

368805R1

ROLLER

- plunger cam

2шт.

57

368804R1

SHOE (ASSY)

SHOE - cam roller

2шт.

304718R91

ROTOR

HEAD AND ROTOR ASSEMBLY - hydraulic, Includes: Ref. 58 - 66

1шт.

58

317898R1

PLUNGER - rotor, for rotors marked with letter A, no longer available

2шт.

58

317897R1

PLUNGER - rotor, for rotors marked with letter B, no longer available

2шт.

58

317896R1

PLUNGER - rotor, for rotors marked with letter C

2шт.

58

317895R1

PLUNGER - rotor, for rotors marked with letter D, no longer available

2шт.

59

NSS

NOT SOLD SEPARAT

ROTOR - order head and rotor assembly 304718R91

1шт.

60

606141C1

LOCK VALVE

VALVE - distributor rotor delivery

1шт.

61

606144C1

VALVE SPRING

SPRING - distributor rotor delivery valve

1шт.

62

606145C1

LOCK ASSY

STOP - distributor rotor delivery valve

1шт.

63

317901R1

CAPSCREW,3/25" x 7/32"

SCREW - delivery valve retaining

1шт.

64

613560C1

RING

- cam

1шт.

65

1807682C1

SEAL

- hydraulic head (Replaces seal 368337R1)

1шт.

66

NSS

NOT SOLD SEPARAT

HEAD - hydraulic, order head and rotor assembly 304718R91

1шт.

67

304800R1

WASHER

RETAINER - distributor rotor

2шт.

68

304801R1

RING

- distributor rotor retainer

1шт.

69

304745R1

GUIDE

LINER - transfer pump

1шт.

70

619761C1

BLADE

- transfer pump (Replaces blade 346728R1)

4шт.

71

346724R1

SPRING

- transfer pump blade

2шт.

72

368812R1

DOWEL

PIN - roll, end plate

1шт.

73

367982R1

O-RING,0.154" Width

SEAL - transfer pump, no longer available

1шт.

74

346725R1

PLATE ASSY.

PLATE - thrust

1шт.

75

346705R91

PLUG

- end plate adjusting

1шт.

76

615442C1

SLEEVE CYLINDER

SLEEVE - end plate, no longer available

1шт.

77

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, End plate sleeve (Replaces seal 368030R1)

1шт.

78

A43870

FILTER, FUEL

ELEMENT - filter (Replaces element 346708R1)

1шт.

79

A43871

SEAL

- element (Replaces seal 346709R1)

1шт.

80

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, End plate sleeve

1шт.

81

613556C1

VALVE SPRING

SPRING - regulating

1шт.

82

367988R1

PLUNGER

PISTON - regulating

1шт.

83

615142C1

SEAL

SEAL - regulating piston

1шт.

84

367984R1

SEALING WASHER

WASHER - fuel line connector screw

12шт.

85

REF

INSTRUCTION

CONNECTOR - injection pipe, furnished as part of injection pipe

1шт.

86

615695C1

PLUG

- end plate pipe, also order seal 340214R1 below (Replaces plug 346712R1)

1шт.

86a

340214R1

SEAL

- end plate plug, not shown

1шт.

87

73613

SCREW

- fuel line connector (Replaces screw 367983R1)

6шт.

88

304797R1

VALVE SPRING

SPRING - leaf

1шт.

89

368806R1

SCREW - leaf spring adjusting

1шт.

90

D61943

SNAP RING,0.25", Int, #25

Ring, Snap, (replaces ring 346731R1) 0.25", Int, #25

1шт.

91

346704R1

PLATE ASSY.

PLATE - end

1шт.

92

615489C1

LOCK ASSY

STRAP - end plate

2шт.

93

615733C1

CLIP

- end plate screw

4шт.

94

615491C1

SCREW

- end plate

4шт.

95

615772C1

PISTON - spring, used with pump 702154C91, no longer available

1шт.

95

319686R1

PISTON ASSY

PISTON - spring, used with pump 619601C91, no longer available

1шт.

96

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Head locating screw

2шт.

97

1802904C1

SCREW

- head locating (Replaces screw 319679R1)

1шт.

98

20789R1

SCREW - torque screw hole plug, 1/4 NF x 1/2 inch, no longer used

1шт.

99

324791R1

SEAL ASSY.

WASHER - torque screw hole plug

1шт.

100

313287R1

COVER ASSY

CAP - torque screw

1шт.

101

1805552C1

PLUG

- advance screw hole (Replaces plug 319688R1)

1шт.

102

319689R1

WIPER SEAL

- advance screw hole plug

1шт.

103

347316R1

SCREW

- cam advance

1шт.

104

372618R1

SHIM

- advance spring

4шт.

105

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Torque screw (Replaces seal 352219R1)

1шт.

106

321313R1

NUT

- torque screw

1шт.

107

321312R1

CAPSCREW,1/4" x 1 31/64"

SCREW - torque

1шт.

108

217921

SCREW - throttle lever spring, no longer available

1шт.

109

G49621

RETAINER

- throttle lever spring (Replaces retainer 304743R1)

1шт.

110

G48505

SPRING

- throttle lever (Replaces spring 304739R1)

1шт.

111

304738R91

LEVER

- throttle

1шт.

116

368008R1

SCREW,Drilled Sl Hex, #10 - 32 x 1.53"

- low idle adjusting, pump 702154C91

1шт.

116

627588C1

SCREW - throttle lever stop, pump 619601C91, no longer used

1шт.

117

313690R1

LOCK ASSY

CLIP - shaft retainer

2шт.

119

304788R1

SET SCREW

- low idle adjusting, used with pump 619601C91

1шт.

51200274

NUT

- low idle adjusting screw (Replaces nut 368009R1)

1шт.

606491C1

PLATE ASSY.

PLATE - name

1шт.

168-1

DRIVE SCREW,Rnd Hd, #10 x 1/8"

- name plate, drive, round head, No. 10 x 1/8 inch

2шт.

12736D

ELECTRICAL WIRE

WIRE - enclosed seal, lead pump and sealing

6шт.

279673R91

WASHER

TORQUE - injection pump torque screw

1шт.

266758R91

CABLE PULLING GRIP

CABLE - ground, shut-off terminal to front cover mounting, no longer available

1шт.
