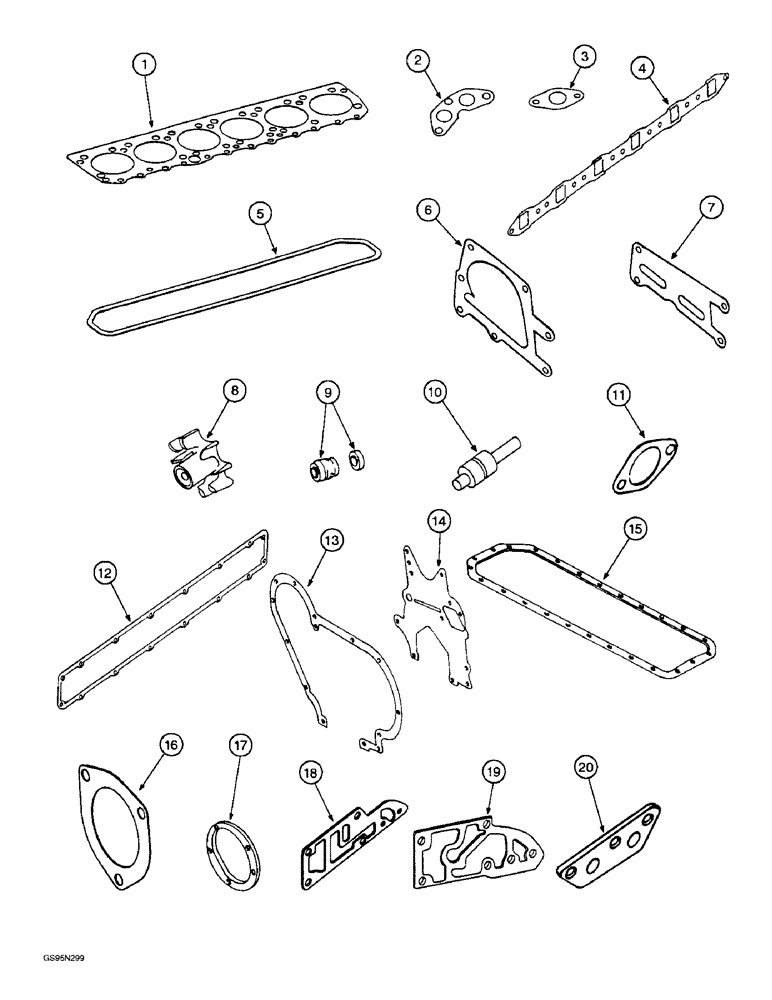

Запчасти Case IH D-236 (4-16) - SHORT BLOCK ENGINE, CLIPS, SERVICE KITS

749569C91

ENGINE - block, short, remanufactured (North America only), component parts do not apply to the remanufactured assembly, no longer available

1шт.

1928055C1

CORE-ENGINE

RETURN NUMBER - use this part number to return engine for credit when using a remanufactured assembly

1шт.

684286C91

ENGINE - block, short, new, consists of camshaft with gear and bearings, connecting rods, crankcase, crankshaft and related parts, oil pump, pistons and sleeves, no longer available

1шт.

365584R1

CLIP

- cable, oil pressure switch cable

1шт.

384559R1

CLIP

- front cover plate

1шт.

362667R1

CLIP

CLAMP - retainer, crankcase front plate

1шт.

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, cable harness

1шт.

134403A1

GASKET KIT

KIT - gasket, valve grinding (Replaces kit 310446R95), Includes: Ref. 1 - 5

1шт.

1

134400A1

CYLINDER HEAD GASKET

- cylinder head (Replaces gasket 601509C1)

1шт.

2

278314R1

MANIFOLD GASKET

- exhaust manifold, center

2шт.

3

278313R3

MANIFOLD GASKET

- exhaust manifold, end

2шт.

4

305804R1

MANIFOLD GASKET

- intake manifold

1шт.

278280R2

GASKET

- thermostat housing

1шт.

5

278308R3

GASKET,1.19mm Thk

- valve cover

1шт.

446210

WASHER

- valve cover

4шт.

374544R94

KIT

- water pump service, Includes: Ref. 6 - 10

1шт.

6

69674R1

GASKET

- water pump plate

1шт.

7

69676R2

GASKET

- water pump

1шт.

8

387931R1

TORQ CONV IMPELLER

IMPELLER - water pump

1шт.

9

687161C92

KIT

- seal, water pump

1шт.

102069H

RING

- bearing retainer

1шт.

327316R1

SNAP RING,1.188", Int, #118

Ring, Snap, , brg 1.188", Int, #118

1шт.

73296R93

SEAL

- water pump

1шт.

10

376602R91

BEARING ASSY,30mm OD x 110.69mm L

SHAFT - water pump

1шт.

530035R91

PACKAGE

KIT - crankcase gasket, no longer available as a kit, order components (Replaces kit 332652R91), Includes: Ref. 11 - 20 & Parts on Figure 4-18

1шт.

11

369981R1

GASKET

- breather pipe flange

1шт.

12

278268R1

GASKET

- crankcase front cover

1шт.

13

278265R1

GASKET

- crankcase front plate

1шт.

14

369984R1

GASKET

- crankcase oil pan

1шт.

15

278347R1

GASKET

- injection pump adapter

1шт.

16

278270R3

GASKET

- injection pump gear cover

1шт.

17

349039R1

GASKET

- lubricating oil filter base

1шт.

18

601790C2

GASKET

- lubricating oil filter base

1шт.

3405HA

GASKET

- lubricating oil pressure relief valve plug

1шт.

19

349038R2

MANIFOLD GASKET

- oil cooler manifold

1шт.

20

304854R1

RING

GASKET - oil filter case

1шт.
