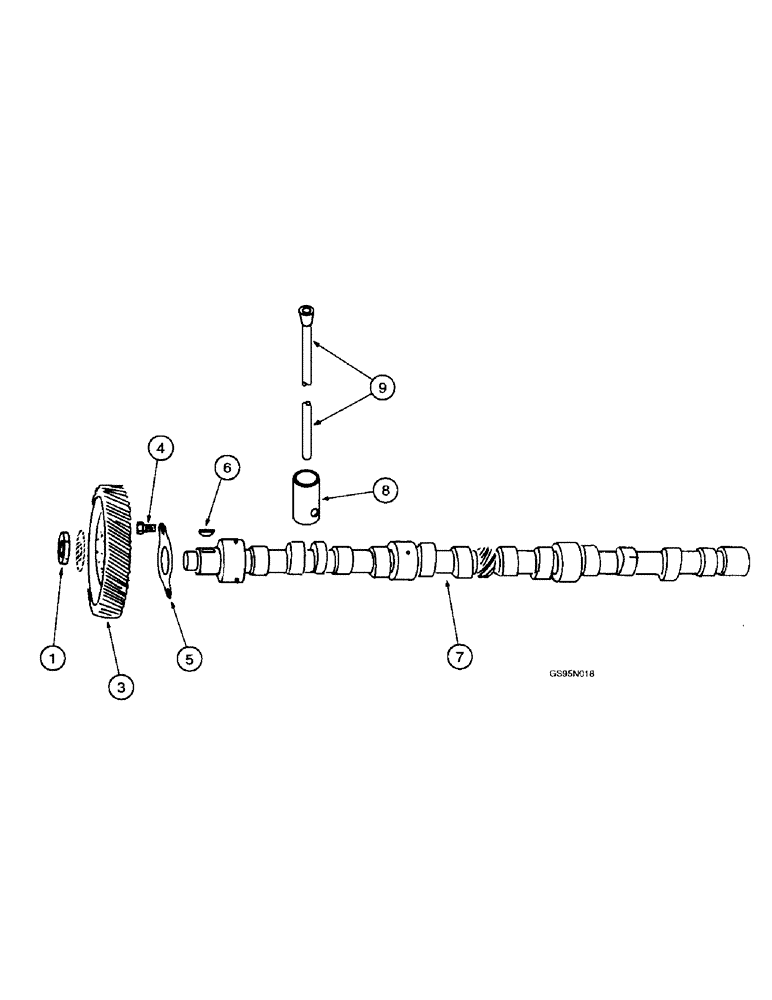

Запчасти Case IH D-236 (4-12) - CAMSHAFT AND RELATED PARTS

1

16026DB

NUT

- camshaft gear

1шт.

3

312500R1

PINION

GEAR - camshaft

1шт.

4

26309R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex lock, 3/8 NC x 3/4 inch, camshaft thrust plate

2шт.

5

35650HA

FLANGE

PLATE - camshaft thrust

1шт.

6

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

1шт.

7

367229R1

SHAFT

CAMSHAFT - engine

1шт.

8

684729C1

TAPPET

- valve (Replaces tappet 75524R3)

12шт.

9

164436R91

PUSH ROD

ROD - valve push

12шт.
