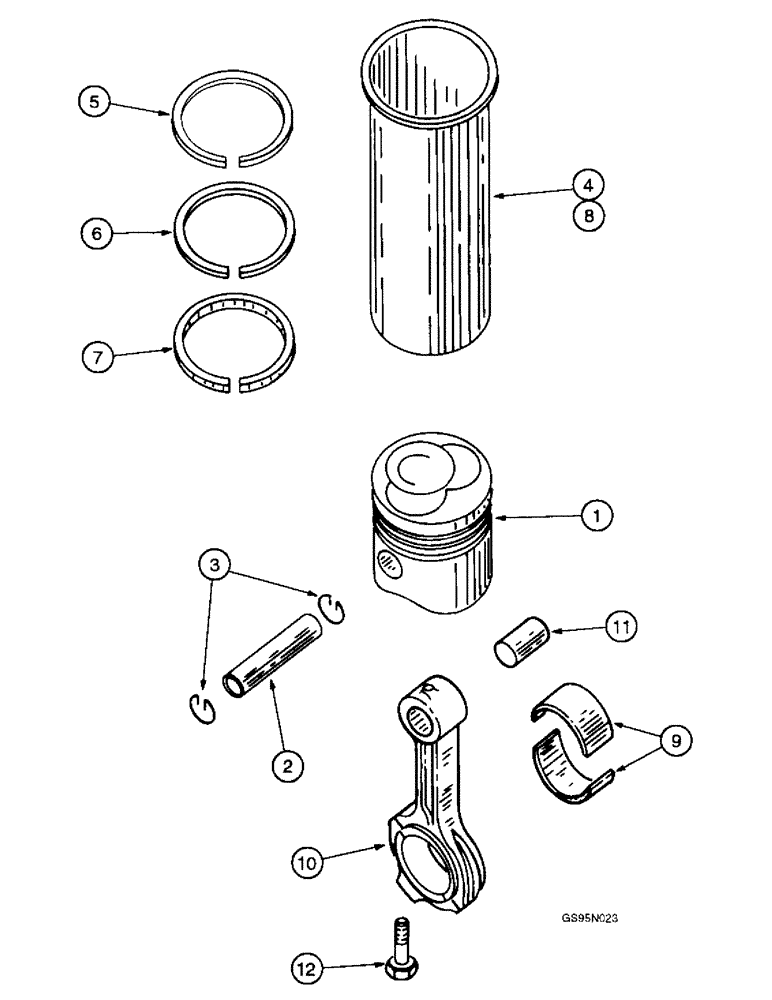

Запчасти Case IH D-236 (4-10) - CONNECTING RODS & SLEEVE SETS, MACHINES W/ENGINE S/N 16621 & AFTER

612016C91

SLEEVE CYLINDER

PISTON ASSEMBLY - includes cylinder sleeve, Includes: Ref. 1 - 7

6шт.

1

306275R4

PISTON

- SS marking

1шт.

2

332436R1

PIN,28.57mm OD x 17.48mm L

- piston, standard

1шт.

3

100-21112

SNAP RING,1.125", Int, #112

Ring, Snap, , Piston pin (Replaces ring 338835R1) 1.125", Int, #112

2шт.

4

609028C1

SLEEVE

- cylinder, standard

1шт.

680035C91

RING, SET

KIT - piston ring, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

RING - compression piston, top or first groove, order kit 680035C91

1шт.

6

NSS

NOT SOLD SEPARAT

RING - compression piston, second groove, order kit 680035C91

1шт.

7

NSS

NOT SOLD SEPARAT

RING - oil regulating piston, order kit 680035C91

1шт.

8

612000C1

SLEEVE

- cylinder, 0.002 oversize

6шт.

8

612001C1

SLEEVE

- cylinder, 0.010 oversize

6шт.

367630R91

KIT - bearing, connecting rod, standard, Includes: Ref. 9, no longer available, order bearings separately

1шт.

9

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING - connecting rod, standard, two halves

6шт.

377285R91

KIT

- bearing, connecting rod, 0.002 undersize, Includes: Ref. 9, no longer available, order bearings separately

1шт.

9

367632R11

BEARING ASSY

BEARING - connecting rod, 0.002 undersize, two halves

6шт.

376665R91

BEARING

KIT - bearing, connecting rod, 0.010 undersize, Includes: Ref. 9, no longer available, order bearings separately

1шт.

9

376666R11

BEARING ASSY

- connecting rod, 0.010 undersize, two halves

6шт.

376667R91

KIT

- bearing, connecting rod, 0.020 undersize, Includes: Ref. 9, no longer available, order bearings separately

1шт.

9

376668R11

CONN. ROD SHELL

BEARING - connecting rod, 0.020 undersize, two halves

6шт.

372443R91

KIT

- bearing, connecting rod, 0.030 undersize, Includes: Ref. 9, no longer available, order bearings separately

1шт.

9

367631R11

BEARING ASSY

- connecting rod, 0.030 undersize, two halves

6шт.

10

735237C91

REMAN-CONNECTING ROD

ROD ASSEMBLY - connecting, remanufactured (North America only), component parts do not apply to the remanufactured assembly

6шт.

1928147C1

CORE-ROD CONNECTING

RETURN NUMBER - use this part number to return rods for credit when using a remanufactured assembly

6шт.

10

306280R12

ROD, CONNECTING

ROD ASSEMBLY - connecting, new, Includes: Ref. 11, 12

6шт.

10

735237C91

REMAN-CONNECTING ROD

Reman for New PN 306280R12

6шт.

10

1928147C1

CORE-ROD CONNECTING

Return Number

6шт.

11

306708R1

BUSHING,28.28mm ID x 31.89mm OD x 33.33mm L

- piston pin

1шт.

12

316366R1

BOLT,3/8" - 24 x 2"

- connecting rod

2шт.
