Запчасти Case IH 6TAA-9004 350HP (10.001.AB) - CYLINDER BLOCK - ENGINE BLOCK HEATERS (10) - ENGINE

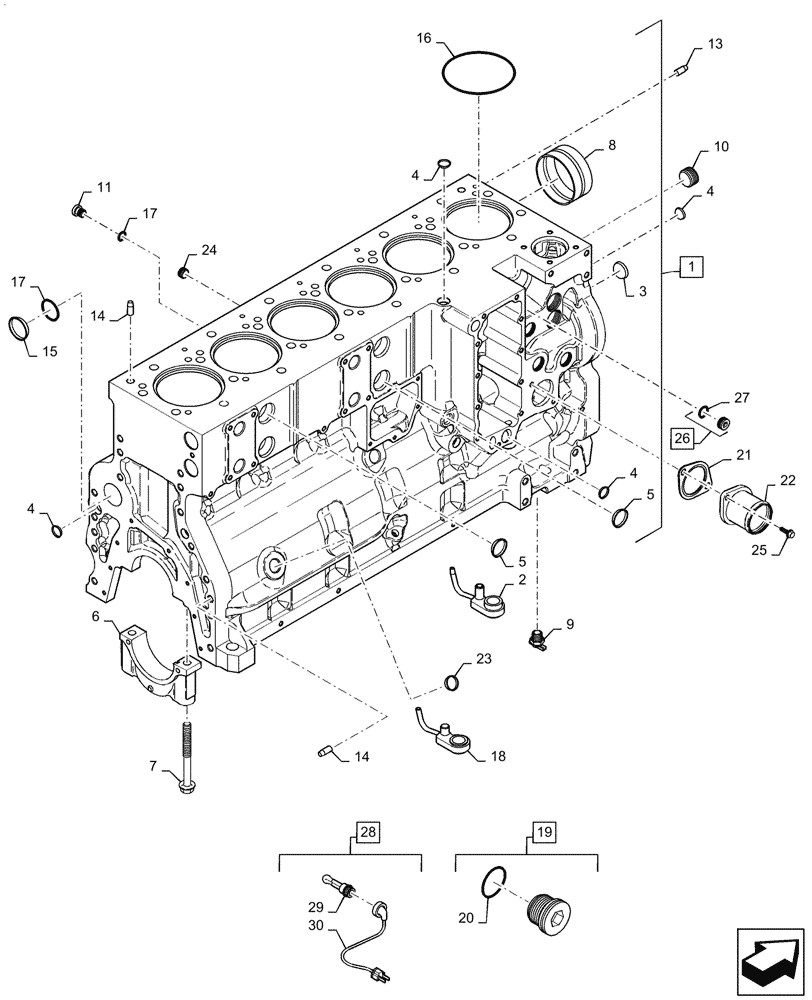

Схема запчастей Case IH 6TAA-9004 350HP - (10.001.AB) - CYLINDER BLOCK - ENGINE BLOCK HEATERS (10) - ENGINE
3
22
23
25
8
15
6
5
17
27
14
24
13
18
19
11
10
16
29
17
21
4
4
4
1
7
28
14
26
20
9
5
2
4
30

Артикул

Название

Примечание

Количество

87603080

BASIC ENGINE

Service, Tier 3

1шт.

See Note, Less, Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injector Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler

1шт.

Basic engines and reman engines are generic engines, all parts are not supplied with the engines. Check the configuration of the engine being removed, with the configuration of the engine being installed. For any components not supplied with the engine being installed, reuse those parts from the engine that has just been removed. Do not return the old engine, until the unit is reassembled

1шт.

7088

1шт.

87603080R

REMAN-BASIC ENGINE

7088 Tier 3

1шт.

87603080C

CORE-BASIC ENGINE

Return Number

1шт.

87537667

BASIC ENGINE

Service, Tier 3

1шт.

See Note, Less, Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injector Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler

1шт.

Basic engines and reman engines are generic engines, all parts are not supplied with the engines. Check the configuration of the engine being removed, with the configuration of the engine being installed. For any components not supplied with the engine being installed, reuse those parts from the engine that has just been removed. Do not return the old engine, until the unit is reassembled

1шт.

5088

1шт.

87537667R

REMAN-BASIC ENGINE

5088, Tier 3

1шт.

87537667C

CORE-BASIC ENGINE

Return Number

1шт.

87351542

BASIC ENGINE

Service, Tier 3

1шт.

See Note, Less, Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler

1шт.

Basic engines and reman engines are generic engines, all parts are not supplied with the engines. Check the configuration of the engine being removed, with the configuration of the engine being installed. For any components not supplied with the engine being installed, reuse those parts from the engine that has just been removed. Do not return the old engine, until the unit is reassembled

1шт.

6088

1шт.

87351542R

REMAN-BASIC ENGINE

6088, Tier 3

1шт.

87351542C

CORE-BASIC ENGINE

Return Number

1шт.

87544189

SHORT ENGINE

1шт.

7088

1шт.

87544189R

REMAN-SHORT ENGINE

7088 AXIAL-FLOW COMBINE (NA) (4/07-)

1шт.

87544189C

CORE-SHORT ENGINE

Return Number

1шт.

87390942R

REMAN-SHORT ENGINE

For AFX5088 And AFX6088

1шт.

87390942C

CORE-SHORT ENGINE

1шт.

87390942

SHORT ENGINE

1шт.

5088, 6088

1шт.

1

84165305

CYLINDER BLOCK

Short, Inc 2 - 8

1шт.

Stripped Short Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings

1шт.

2

87739191

NOZZLE

6шт.

7088

1шт.

2

87673839

NOZZLE

6шт.

5088, 6088

1шт.

3

A77586

PLUG

28.9 mm

3шт.

4

A77506

PLUG

21 mm

4шт.

5

J905401

PLUG

35 mm

4шт.

6

87444056

BEARING CAP,159 mm OD x 34 mm

Main Bearing

7шт.

7

87444059

BOLT

M14 x 128

14шт.

8

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

7шт.

87338079

KIT

Inc 9 - 20

1шт.

9

217-103

COCK, DRAIN

1/4 PT

2шт.

10

86625135

PLUG,1" - 11-1/2 NPT

1шт.

11

J678923

PLUG,M10 x 1

10 mm, Inc 12

6шт.

12

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

4шт.

14

J901846

PIN,12.01mm OD x 24mm L

8шт.

15

41-3044

PLUG,Exp, 2 3/4"

2шт.

16

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

6шт.

17

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 mm ID

2шт.

18

87739191

NOZZLE

6шт.

19

J678921

PLUG

14 mm, Inc 20

1шт.

20

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

21

J945603

GASKET,1.65mm Thk

Water Inlet

1шт.

22

J913030

FITTING

Water Inlet

1шт.

23

A77530

PLUG

1-13/64 OD

4шт.

24

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

7шт.

25

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

26

313244A1

PLUG

Hex Socket, 22 mm, Inc 27

2шт.

27

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 ID x 2.2 mm

1шт.

28

310493A1

KIT

Engine Block Heater, 120 Volt, Inc 36 - 37

1шт.

29

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72")

1шт.

30

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

310494A1

KIT

Coolant Heater, 240V, Inc 36 - 37

1шт.

29

J913112

WIRE HARNESS

305 mm (12")

1шт.

30

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

31

J900956

PLUG

(Not Shown)

3шт.

32

87338185

BOLT

(Not Shown)

1шт.

33

87337018

BOLT

(Not Shown)

6шт.

34

J678923

PLUG,M10 x 1

(Not Shown)

6шт.

35

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

(Not shown)

1шт.

36

J678921

PLUG

(Not Shown)

1шт.

37

J678912

O-RING,2.2mm Thk x 11.3mm ID

(Not Shown)

1шт.

38

J909025

FLANGE BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

M8 x 1.25 x 55 (Not Shown)

6шт.

39

87708865

PLUG,M42 x 2

42 mm (Not Shown)

1шт.

7088

1шт.

40

217-441

PLUG,Hex Soc, 3/4" - 14 NPTF

(Not Shown)

5шт.

41

87428566

PIPE FITTING

(Not Shown)

1шт.

Выбрано товаров: 76
