Запчасти Case IH 6TAA-9004 350HP (10.210.AF[03]) - FUEL, DRAIN (10) - ENGINE

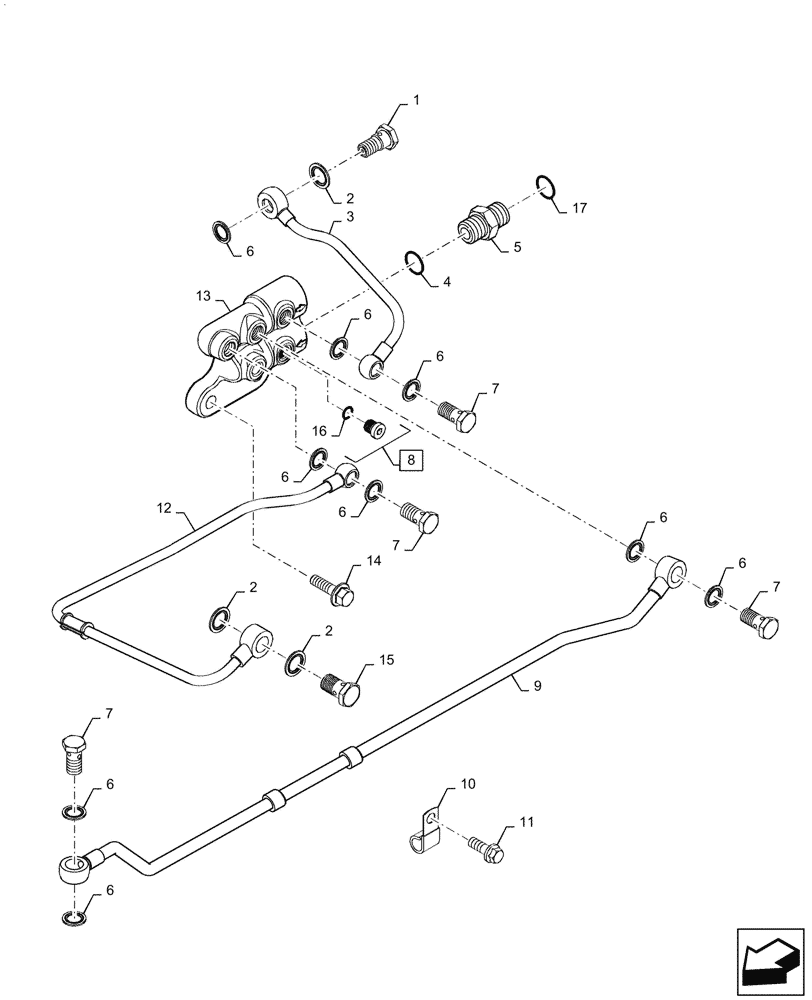

Схема запчастей Case IH 6TAA-9004 350HP - (10.210.AF[03]) - FUEL, DRAIN (10) - ENGINE
16
4
7
6
10
6
2
6
6
2
6
6
1
5
6
11
7
3
6
6
15
12
7
7
8
2
9
13
17
14

Артикул

Название

Примечание

Количество

1

87346562

CHECK VALVE,M12 x 1.5

1шт.

2

87417767

SEALING WASHER,13.67mm ID x 22.35mm OD x 1.27mm Thk

3шт.

3

87350046

FUEL TUBE,0.31" OD

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

1шт.

6

87346600

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

9шт.

7

J903035

BANJO BOLT

M12 x 1.50 x 24

4шт.

8

J678923

PLUG,M10 x 1

Inc 16

1шт.

9

87350033

FUEL TUBE

1шт.

10

87350023

CLIP

1шт.

11

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

12

87350034

FUEL TUBE,0.31" OD

1шт.

13

87350030

CONNECTING BLOCK

1шт.

14

87349727

BOLT

M10 x 1.50 x 35

2шт.

15

J924725

BANJO BOLT,M14 x 1.5 x 26mm

M14 x 1.50 x 26

1шт.

16

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Выбрано товаров: 17
