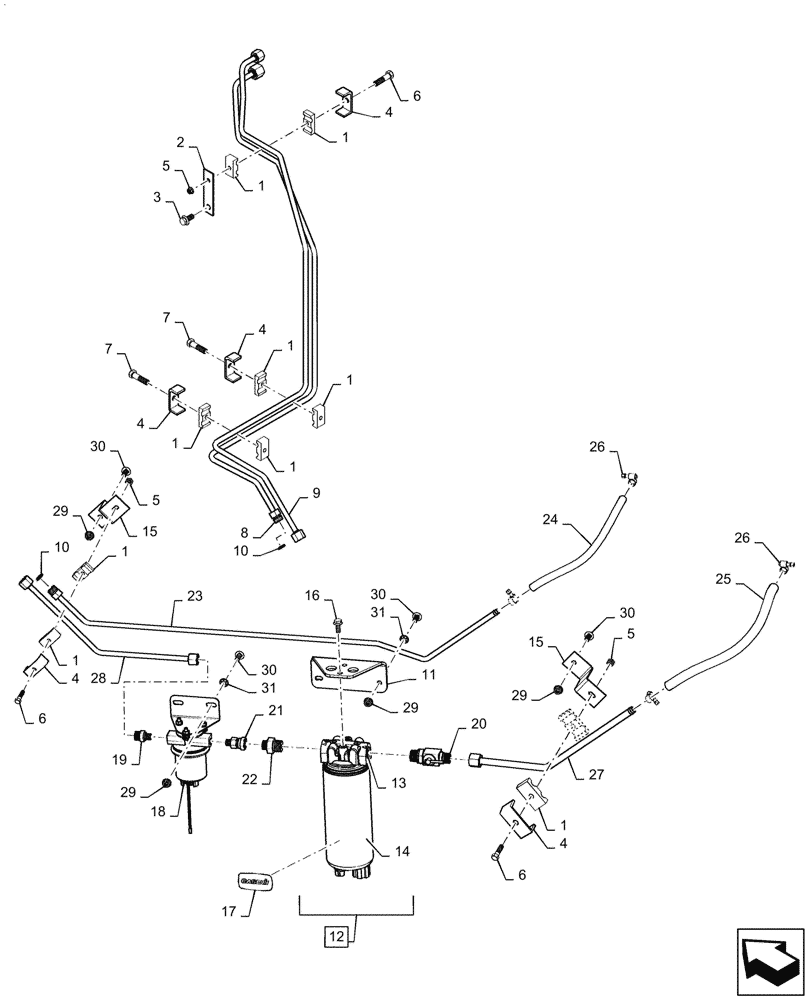

Запчасти Case IH 6TAA-8304 305HP (10.210.AF[01]) - FUEL, SUPPLY AND RETURN (10) - ENGINE

1

430357

CLAMP

Fuel Tubes

10шт.

2

1330564C1

PLATE

Fuel Line

1шт.

3

409-7612

BOLT,3/8"-16 x 1.09" OAL

Fuel Line Plate

1шт.

4

431941

SUPPORT

Fuel Line Clamp

5шт.

5

86050300

FLANGE NUT,M6 x 1.0, Cl 10

3шт.

6

87670759

FLANGE BOLT,M6 x 1.0 x 46.6mm, Cl 10.9

3шт.

7

87670760

FLANGE BOLT,M6 x 56.6mm, Cl 10.9

2шт.

8

87670384

FUEL TUBE,9.53 mm OD x 487.4 mm L

Fuel Supply

1шт.

9

87670385

FUEL TUBE,9.53 mm OD x 872.4 mm L

Fuel Return

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

11

87316348

BRACKET

Fuel Filter

1шт.

12

87302103

FILTER ASSY

Fuel, Inc 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

HEAD, Fuel Filter

1шт.

14

87307432

FUEL FILTER

Spin-On

1шт.

15

87727868

BRACKET

Fuel Line Supply

2шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

17

87679098

DECAL,37mm x 70mm

CIH Filter

1шт.

18

87756610

FUEL PUMP

1шт.

19

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

1шт.

20

87639522

SHUT-OFF VALVE

1шт.

21

87643580

HYD CONNECTOR

1шт.

22

201-139

HYD CONNECTOR,11/16"-16 ORFS x 7/8"-14 ORB

1шт.

23

87670382

FUEL TUBE,9.53 mm OD x 635.9 mm L

Fuel Return Tank

1шт.

24

NSS

NOT SOLD SEPARAT

Fuel Return Tank, Cut From Bulk 3/8 Fuel Hose

1шт.

25

NSS

NOT SOLD SEPARAT

Fuel Supply Tank, Cut From Bulk 1/2 Fuel Hose

1шт.

26

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

4шт.

27

87670381

FUEL TUBE,12.70 mm OD x 333.91 mm L

Fuel Supply Tank

1шт.

28

87670383

FUEL TUBE,9.53 mm OD x 335.5 mm L

Fuel Supply

1шт.

29

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

30

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

6шт.

31

1955188C1

PUSH-ON NUT

4шт.
