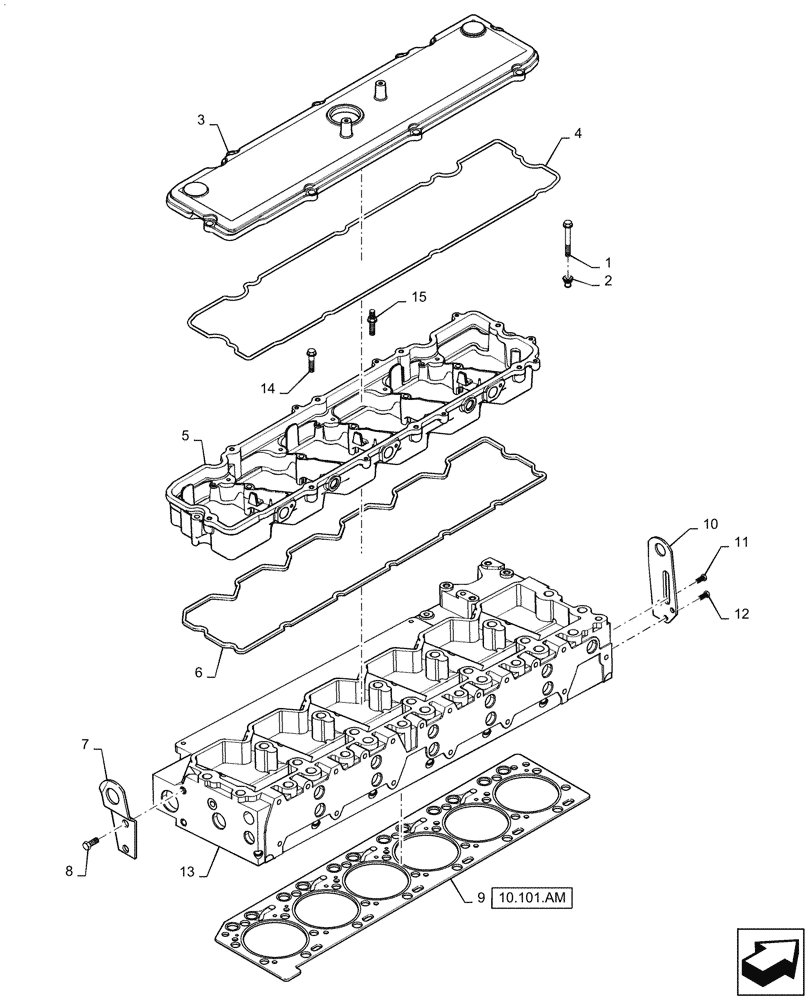

Запчасти Case IH 6TAA-8304 275HP (10.101.AA) - CYLINDER HEAD AND COVER (10) - ENGINE

1

J900632

FLANGE BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

7шт.

2

87342136

ISOLATOR

8шт.

3

87345871

VALVE COVER

1шт.

4

87345861

GASKET,3.2mm Thk

1шт.

5

87344767

HOUSING

Rocker

1шт.

6

87344755

GASKET

Rocker Lever Housing

1шт.

7

87564629

BRACKET

Lift, Front

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

9

87737237

CYLINDER HEAD GASKET,1.81mm Thk

Standard

1шт.

10

87340301

LIFTING EYE

Rear

1шт.

11

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

12

87340324

BOLT

1шт.

13

87653057

HEAD ASSY.

with Valves

1шт.

6088, 7088

1шт.

13

84283167R

REMAN-CYLINDER HEAD

6088, 7088, Reman For New P/N 87653057

1шт.

13

84283167C

CORE-CYLINDER HEAD

Return Part Number

1шт.

13

87673421

HEAD ASSY.

with Valves

1шт.

5088

1шт.

13

84233778R

REMAN-CYLINDER HEAD

Reman for New PN 87673421

1шт.

13

84233778C

CORE-CYLINDER HEAD

Return Part Number

1шт.

14

845-8075

BOLT,Hvy Hex, M8 x 75mm, Cl 8.8

7шт.

15

87340279

SCREW,Hex Flg, M8 x 1.25 x 35mm

1шт.
