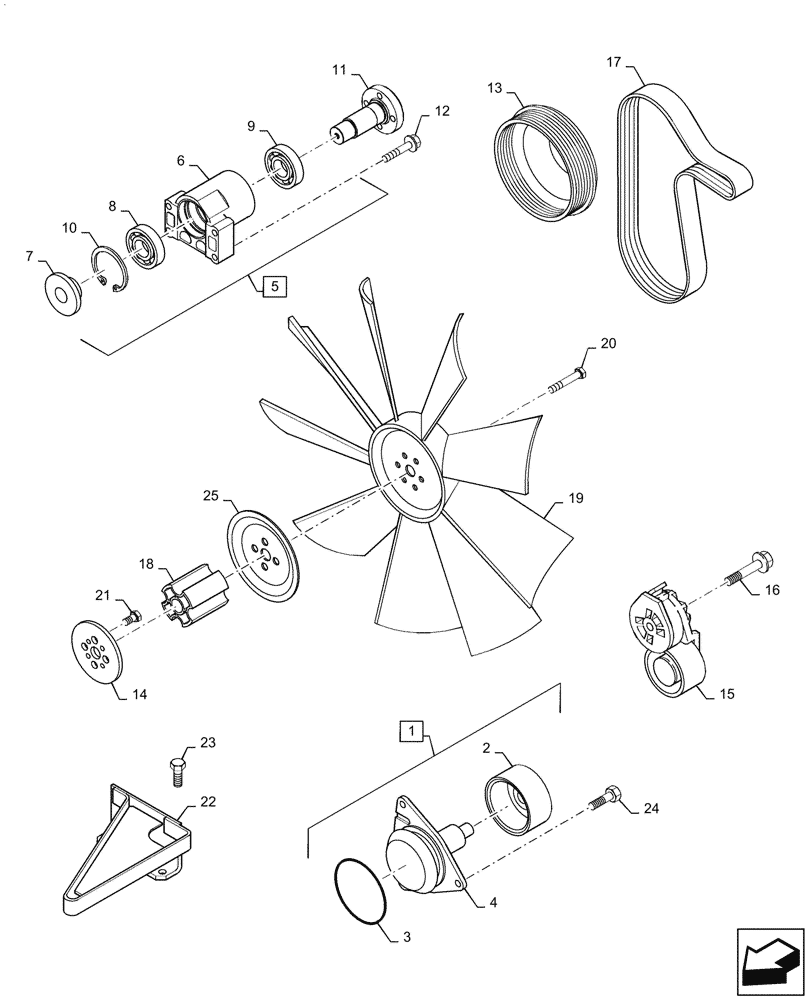

Запчасти Case IH 6TAA-8304 275HP (10.414.BC) - WATER PUMP SYSTEM (10) - ENGINE

1

87308650

KIT, WATER PUMP REPA

Incl 2 - 4

1шт.

87308650R

REMAN-WATER PUMP

5088, 6088 Both AXIAL-FLOW COMBINE (NA), 7088 (NA) (4/07-)

1шт.

87308650C

CORE-WATER PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY

1шт.

3

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

PUMP

1шт.

5

87408931

SUPPORT

Fan, Incl 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

HUB

1шт.

7

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

8

NSS

NOT SOLD SEPARAT

BEARING, BALL

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING, BALL

1шт.

10

NSS

NOT SOLD SEPARAT

SNAP RING

1шт.

11

NSS

NOT SOLD SEPARAT

HUB

1шт.

12

854-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

4шт.

13

84244661

PULLEY,235.65mm OD

Accessory Drive

1шт.

14

431716A1

PULLEY,147mm OD

Fan

1шт.

15

87317615

BELT TENSIONER

1шт.

16

J282433

FLANGE BOLT,Hex, M10 x 1.5 x 85mm

1шт.

17

87755884

V-BELT,3.56 mm W x 2005.00 mm L

1шт.

18

A184751

SPACER,Fan, 74/75mm Thk

75 mm

1шт.

19

87305330

FAN

9 Blade

1шт.

7088

1шт.

19

87313617

FAN,9 Blades, 762mm OD

9 Blade

1шт.

5088, 6088

1шт.

20

87695415

BOLT,Hex, M10 x 100mm, Cl 10.9

Hex, M10 x 100, 10.9

4шт.

21

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

4шт.

22

87411538

GUIDE

Engine Fan Belt

1шт.

23

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

24

87351192

BOLT

3шт.

25

87573769

SHIELD

Fan Hub

1шт.

26

84141599

MOUNT

Pulley Scraper, Not Shown, See page 50.200.11

1шт.
