(10.210.AF[02]) - FUEL FILTER - PUMP, TRANSFER

Запчасти Case IH 6TAA-8304 275HP (10.210.AF[02]) - FUEL FILTER - PUMP, TRANSFER (10) - ENGINE

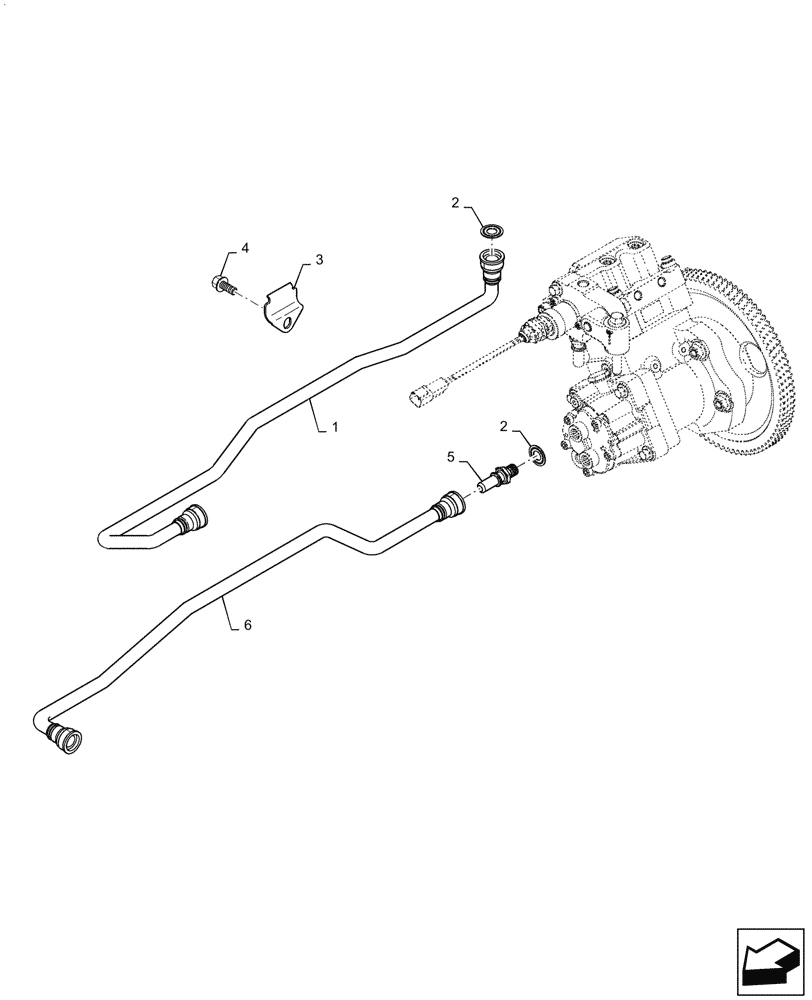

Схема запчастей Case IH 6TAA-8304 275HP - (10.210.AF[02]) - FUEL FILTER - PUMP, TRANSFER (10) - ENGINE
2
5
6
4
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87349485

FUEL TUBE,0.63" OD

Fuel Supply

1шт.

2

87346600

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

2шт.

3

87339057

BRACKET

1шт.

4

J925883

FLANGE BOLT,Hex, M8 x 16mm, Cl 10.9

M8 x 16; 10.9

1шт.

5

87349484

ADAPTER

2шт.

6

87349483

FUEL TUBE,0.63" OD

Fuel Supply

1шт.

Выбрано товаров: 6
