Запчасти Case IH D-268 (04-05) - PISTON AND CYLINDER SLEEVE

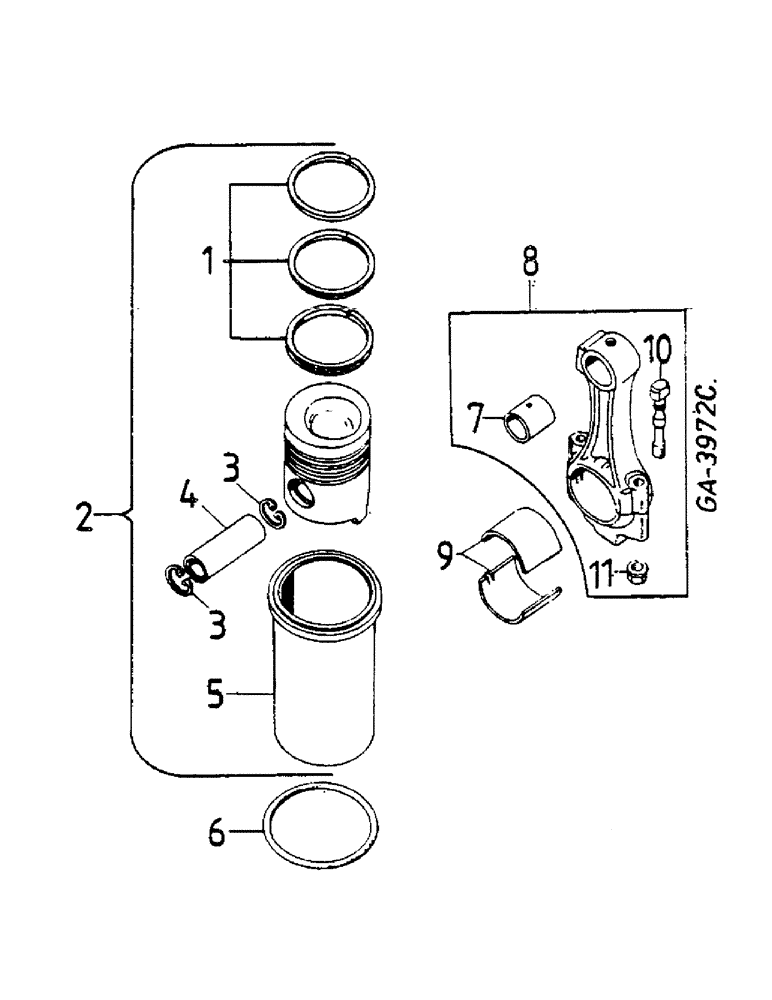

Схема запчастей Case IH D-268 - (04-05) - PISTON AND CYLINDER SLEEVE
2
3
6
9
4
7
10
11
1
5
3
8

Артикул

Название

Примечание

Количество

1

3218416R92

PISTON RING SET

COMPRESSION, UNIT I

3шт.

1

3218669R91

PISTON RING SET

COMPRESSION, UNIT II

4шт.

1

3144977R91

PISTON RING SET

COMPRESSION, UNIT III

4шт.

1

3218669R91

PISTON RING SET

COMPRESSION, UNIT III - 844S UP TO S/N 017477, D-179 - 633 + V+E UP TO S/N 299270, D-246 - UP TO S/N 123040, D-268 - 884 UP TO S/N 050554

4шт.

2

3218759R95

SLEEVE ASSY

PISTON, UNIT I

3шт.

2

3144683R96

SLEEVE

PISTON, UNIT II

4шт.

2

3218461R95

SLEEVE ASSY

PISTON, UNIT III

4шт.

2

3218667R92

PISTON

UNIT III - 844S UP TO S/N 017477 - CONSISTS OF ITEMS 1, 3, 4, 5

4шт.

3

933327R1

SNAP RING,M36, Int

RETAINING, UNIT I

6шт.

3

933327R1

SNAP RING,M36, Int

RETAINING, UNIT II AND III

8шт.

4

3055217R2

PISTON PIN

PISTON, UNIT I

3шт.

4

3055217R2

PISTON PIN

PISTON, UNIT II AND III

4шт.

5

3139592R4

SLEEVE CYLINDER

UNIT I

3шт.

5

3144682R3

SLEEVE CYLINDER

UNIT II AND III

4шт.

6

3228348R1

RING,4.75mm Thk x 109.16mm ID

UNIT I

3шт.

6

3228348R1

RING,4.75mm Thk x 109.16mm ID

UNIT II AND III

4шт.

6

3228344R1

SEALING RING,5mm Thk x 110mm ID

UNIT I - D-179 - 633 + V+E UP TO S/N 299270 - D-246 - UP TO S/N 123040 - D-268 - 844 UP TO S/N 050554

3шт.

6

3228344R1

SEALING RING,5mm Thk x 110mm ID

UNIT II AND III - D-179 - 633 + V+E UP TO S/N 299270 - D-246 - UP TO S/N 123040 - D-268 - 844 UP TO S/N 050554

4шт.

7

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

PISTON PIN, UNIT I

3шт.

7

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

PISTON PIN, UNIT II AND III

4шт.

8

3055030R24

ROD, CONNECTING

CPTE WITH ITEM 7, 10 +11, 43.8 MM WIDE, UNIT I

3шт.

8

3055030R24

ROD, CONNECTING

CPTE WITH ITEM 7, 10 +11, 43.8 MM WIDE, UNIT II AND III

4шт.

8

3144690R92

ROD, CONNECTING

CPTE WITH ITEM 7, 10 + 11, 41.8 MM WIDE, UNIT III - UP TO S/N XXXXX

4шт.

9

3055351R91

BEARING ASSY

CONNECTING ROD, STANDARD SIZE, UNIT I

3шт.

9

3055351R91

BEARING ASSY

CONNECTING ROD, STANDARD SIZE, UNIT II AND III - 32 MM WIDE

4шт.

9

3144688R92

BEARING,CON.ROD

BEARING, CON. ROD UNIT III - 30 MM WIDE- UP TO S/N XXXXX-

4шт.

9

3056834R11

BEARING ASSY

UNDERSIZE 0.25 MM, UNIT I

3шт.

9

3056834R11

BEARING ASSY

UNDERSIZE 0.25 MM, UNIT II AND III

4шт.

9

3144876R92

SET

BEARING, CONNECTING ROD UNDERSIZE 0.25 MM, UNIT III - UP TO S/N XXXXX - 30 MM WIDE

4шт.

9

3056879R11

BEARING ASSY

UNDERSIZE 0.50 MM, UNIT I

3шт.

9

3056879R11

BEARING ASSY

UNDERSIZE 0.50 MM, UNIT II AND III - 32 MM WIDE

4шт.

9

3144881R92

BEARING,CON.ROD

BEARING, CON. ROD UNDERSIZE 0.05 MM, UNIT III - UP TO S/N XXXXX - 30 MM WIDE

4шт.

10

3055033R11

BOLT

Connecting rod, CPTE with Item 11, Unit I

6шт.

10

3055033R11

BOLT

Connecting rod, CPTE with Item 11, Unit II and III

8шт.

11

NSS

NOT SOLD SEPARAT

NUT, UNIT I

6шт.

11

NSS

NOT SOLD SEPARAT

NUT, UNIT II AND III

8шт.

Выбрано товаров: 36
