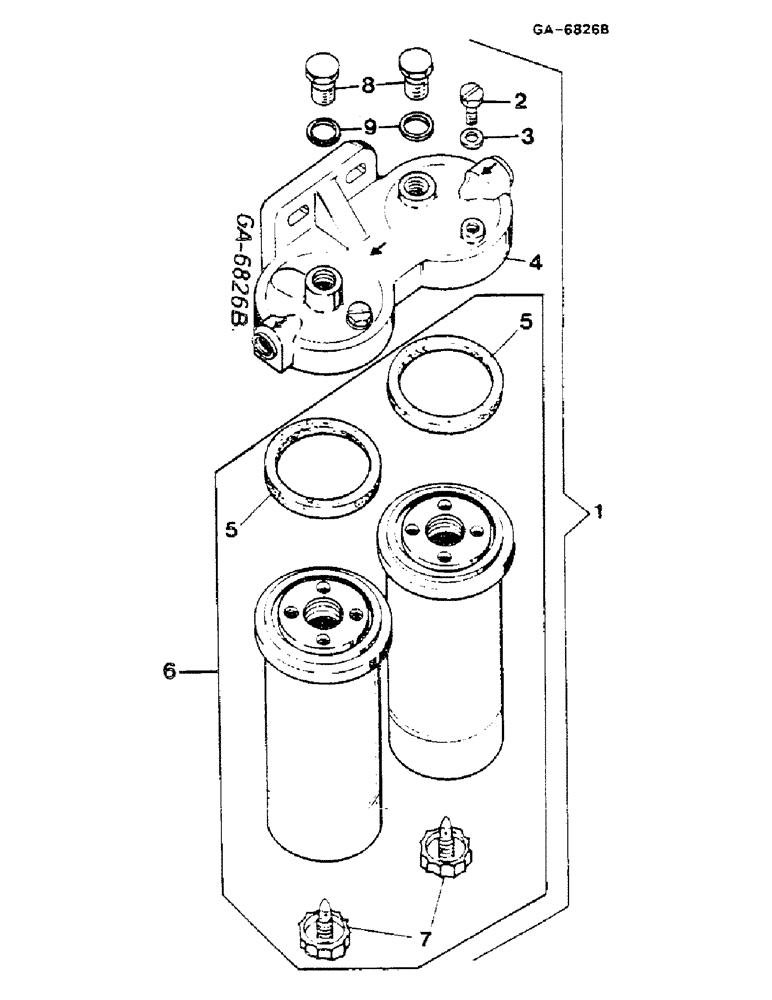

Запчасти Case IH D-268 (11-078) - FUEL FILTER, BOSCH, IF SO EQUIPPED

1

3136300R92

FILTER

FUEL, CONSISTS OF ITEMS 2 THRU 9

1шт.

1

3228272R91

FILTER ASSY

FUEL - OPTIONAL

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

2

3144780R1

SCREW

VENT

2шт.

3

757760R1

RING

PACKING

2шт.

4

3132491R1

FILTER HEAD

COVER

1шт.

5

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

2шт.

6

3132428R2

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order 3132428R2MP

ELEMENT, WITH ITEMS 5 AND 7

2шт.

7

3228407R1

PLUG

DRAIN

2шт.

8

712616R1

PLUG,Hex, M14 x 1.5

1шт.

9

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

1шт.
