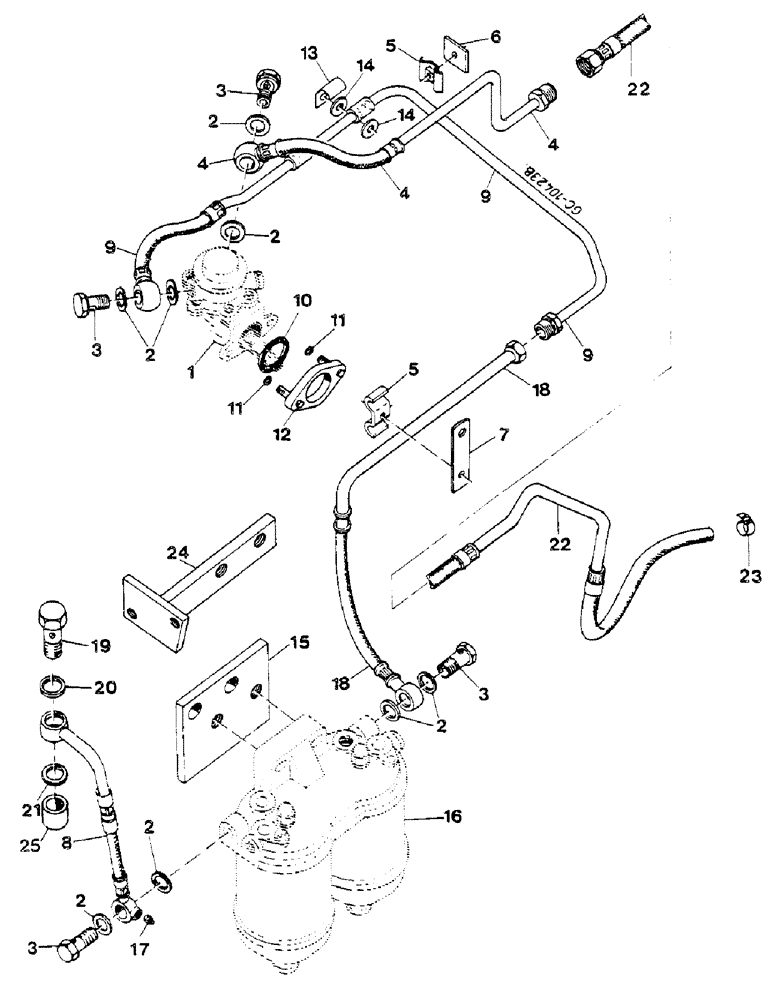

Запчасти Case IH D-268 (11-051) - FUEL FILTER AND LINES

1

NSS

NOT SOLD SEPARAT

PUMP, FEED - D-239, D-268

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP, FEED - SEE INJECTION PUMP - DT-239

1шт.

2

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

8шт.

3

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

HOLLOW M14

4шт.

4

3228537R1

PIPE

FUEL - 743/745XL

1шт.

4

3228415R1

PIPE

FUEL - 844XL - 856XL

1шт.

5

3055386R1

CLAMP

4шт.

6

3132318R1

PLATE

LINK, FIXING

2шт.

6

3132318R1

PLATE

LINK, FIXING - 856XL

3шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

103319

LOCK WASHER,1/4"

4шт.

7

3055387R1

LINK

FIXING NOT FOR 856XL

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

2шт.

8

3144680R2

FUEL TUBE

HOSE, FILTER-INJECTION PUMP

1шт.

9

3228328R1

LINE

PIPE, FUEL

1шт.

10

3055389R2

O-RING,2.5mm Thk x 32mm ID, 70 Duro

1шт.

11

3228345R1

O-RING

2шт.

12

3055391R41

RETAINER

FLANGE, FEED PUMP, WITH STUD AND O-RING

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

933682R1

BELLEVILLE WASHER,M6 Bolt Size x 12.6mm OD x 0.7mm Thk

SPRING 6 MM

2шт.

13

3132052R1

CLIP

PIPE

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

14

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

4шт.

15

3144225R1

BAR

BRACKET, FUEL FILTER

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

D-239, D-268

2шт.

15

3228713R91

BRACKET

FUEL FILTER

1шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

2шт.

9635082

NUT,5/16" - 18, Gr 5

DT-239

2шт.

16

NSS

NOT SOLD SEPARAT

FILTER, FUEL - BOSCH/CAV

1шт.

17

445684

PLUG

1/8

1шт.

18

3218721R1

FUEL TUBE

HOSE

1шт.

19

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

HOLLOW M12

1шт.

3216451R1

SCREW

HOLLOW M12 - 856XL

1шт.

20

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

1шт.

20

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

856XL

2шт.

21

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

22

3228539R2

PIPE

FUEL TANK, FEED PUMP

1шт.

22

3228417R2

TUBE

FUEL TANK, FEED PUMP

1шт.

23

3144656R1

HOSE CLAMP

1шт.

24

3144994R1

BRACKET

262 F.A.I

1шт.

25

3218465R1

SPACER

DISTANCE - 856XL

1шт.
