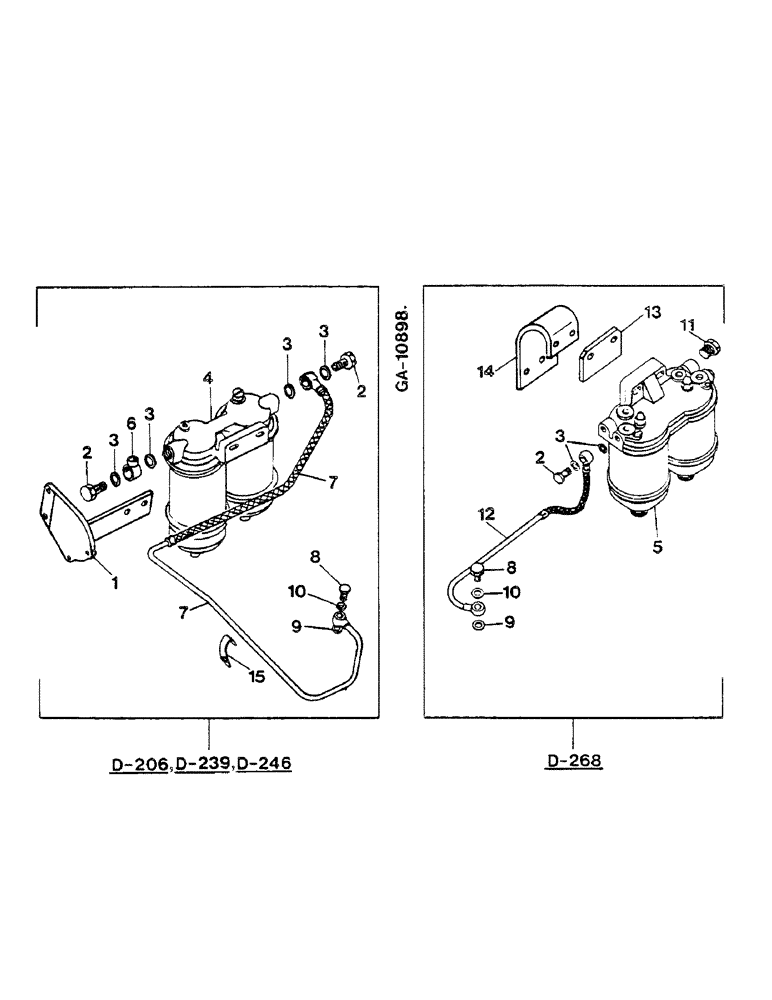

Запчасти Case IH D-268 (11-049) - FUEL FILTER AND LINES

1

NSS

NOT SOLD SEPARAT

SUPPORT - SEE CRANKCASE FRONT COVER

1шт.

2

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

HOLLOW M14

1шт.

3

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

1шт.

4

NSS

NOT SOLD SEPARAT

FILTER, FUEL - BOSCH/CAV

1шт.

5

NSS

NOT SOLD SEPARAT

FILTER, FUEL - BOSCH/CAV

1шт.

6

3228006R1

FITTING

RING, CONNECTING

1шт.

7

3228005R1

HOSE

PIPE, FUEL

1шт.

8

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

HOLLOW M12

1шт.

9

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

1шт.

10

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

11

3056600R1

ADAPTER

ADAPTER M14 X 1/2

1шт.

12

3144265R1

PIPE

FUEL

1шт.

13

3059289R1

PLATE

SPACER

1шт.

14

3218003R1

SUPPORT

SPARE PART

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

15

3132052R1

CLIP

2шт.
