Запчасти Case IH D-268 (11-014) - INJECTION PUMP, INJECTION LINES, NOZZLE HOLDER

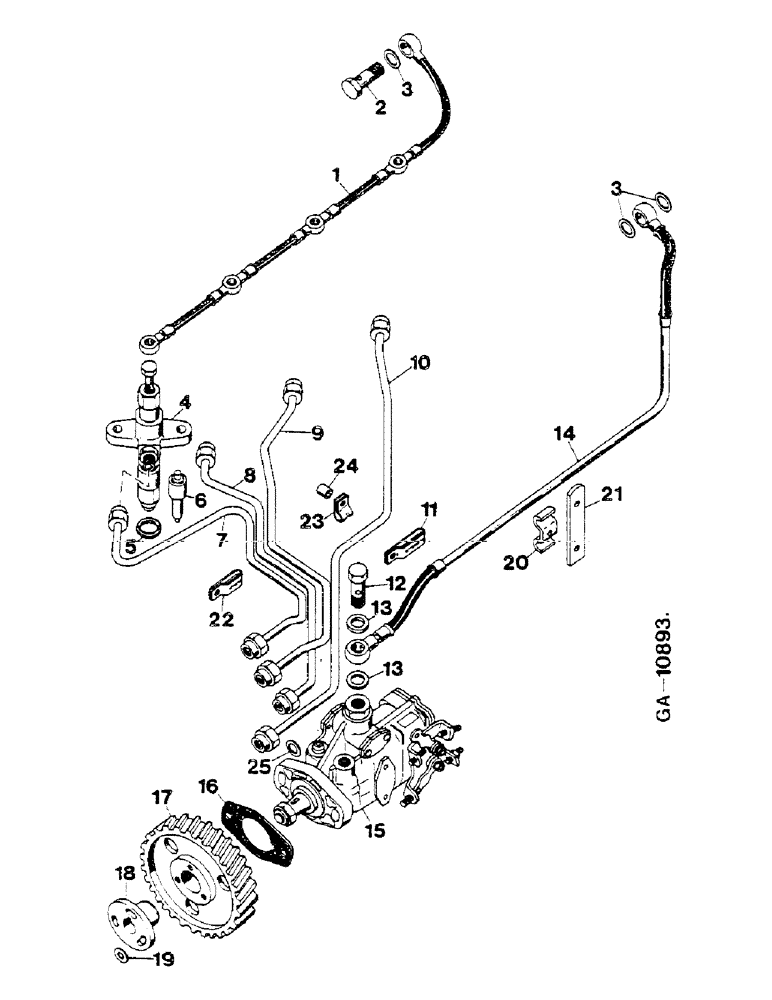

Схема запчастей Case IH D-268 - (11-014) - INJECTION PUMP, INJECTION LINES, NOZZLE HOLDER
3
10
19
22
7
25
11
8
13
18
5
14
2
20
1
12
3
15
13
21
16
4
23
17
6
9
24

Артикул

Название

Примечание

Количество

1

3055380R91

LINE

HOSE, LEAK

1шт.

2

711734R2

SCREW

HOLLOW M14

1шт.

3

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

3шт.

4

3055423R93

HOLDER

WITH NOZZLE

4шт.

4

735253C91

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

4шт.

4

1934195C1

CORE-FUEL INJECTOR

Return Part Number, Injection Nozzle

4шт.

4

NSS

NOT SOLD SEPARAT

HOLDER, INJECTION NOZZLE

4шт.

425-115

NUT,5/16"-24, G5

8шт.

5

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

4шт.

6

3055428R92

FUEL SYSTEM INJECTOR

NOZZLE, INJECTION

4шт.

7

3144709R91

PIPE

INJECTION CYLINDER 1

1шт.

8

3144711R91

PIPE

INJECTION CYLINDER 2

1шт.

9

3144713R91

TUBE

INJECTION CYLINDER 3

1шт.

10

3144715R91

PIPE

INJECTION CYLINDER 4

1шт.

11

3132768R1

CLAMP

1шт.

11

3218243R1

CLAMP

MOULDED RUBBER INSERT

1шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

12

3059086R1

BANJO BOLT

SCREW, HOLLOW M12

1шт.

13

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

2шт.

14

3055381R91

TUBE

LINE OVERFLOW

1шт.

15

NSS

NOT SOLD SEPARAT

PUMP, INJECTION

1шт.

103320

LOCK WASHER,5/16"

2шт.

933834R1

LOCK WASHER,M12

12 MM

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

933981R1

NUT,M12 x 1.75, Cl 5

1шт.

16

3055384R1

GASKET

1шт.

17

3056885R3

PINION

GEAR, INJECTION PUMP

1шт.

18

3055067R2

HUB

PUMP GEAR

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 X 19 MM

3шт.

19

30183R1

WASHER,M8 x 21.5 x 2.5, HT

3шт.

20

3055386R1

CLAMP

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

2шт.

21

3055387R1

LINK

FIXING

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

2шт.

22

3132766R1

CLAMP

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

1шт.

23

3132767R1

CLAMP

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1/4 X 41 MM

1шт.

24

3055480R1

SPACER

1шт.

25

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

2шт.

Выбрано товаров: 47
