Запчасти Case IH D-268 (07-06) - CRANKSHAFT, 4 CYLINDER

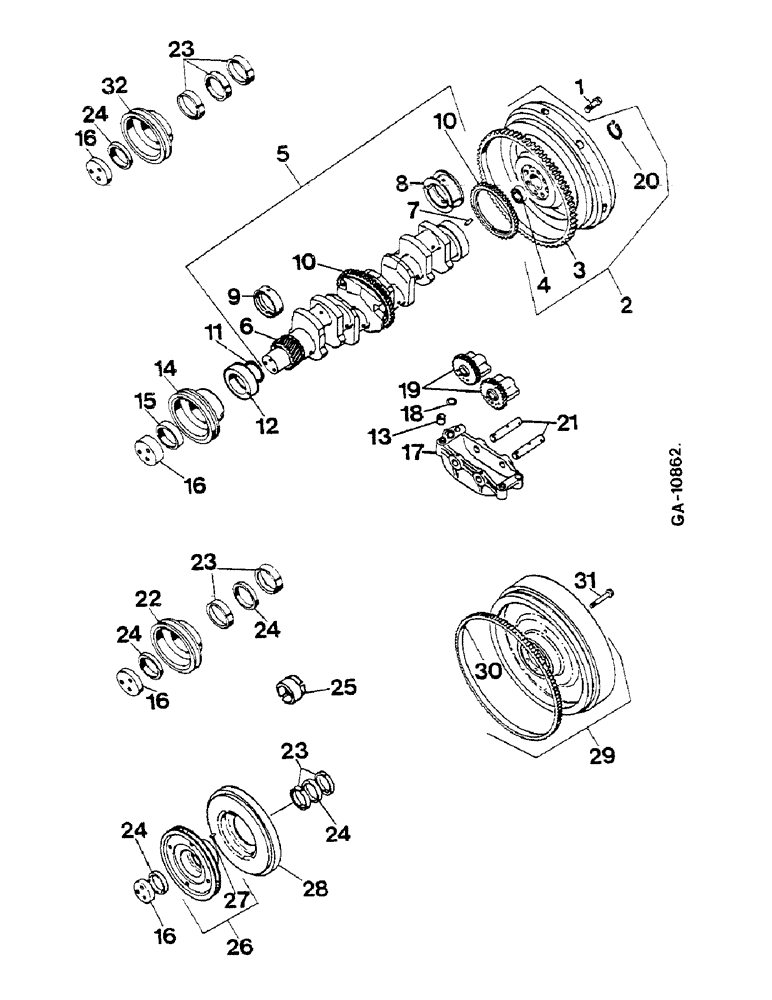

Схема запчастей Case IH D-268 - (07-06) - CRANKSHAFT, 4 CYLINDER
4
16
17
16
20
9
24
13
31
12
29
25
24
10
1
16
21
28
11
22
18
14
23
27
23
3
8
26
5
6
32
24
19
23
24
10
2
16
7
24
30
15

Артикул

Название

Примечание

Количество

1

3055497R2

BOLT

FLYWHEEL - 733+V+E -

7шт.

1

3055156R2

BOLT,1/2" - 20 x 33.5mm

FLYWHEEL - 743+XL, 745S, 745XL, 844S, 856XL 844XL, 845+XL, SU-633

7шт.

2

3218839R91

FLYWHEEL

733+V+E

1шт.

2

3138577R21

FLYWHEEL

743+XL, 745S, 745XL

1шт.

2

3144651R92

FLYWHEEL

844S, 844XL, 845+XL

1шт.

2

3136476R11

FLYWHEEL

SU-644

1шт.

2

3055080R11

FLYWHEEL

SINGLE CLUTCH - 743, 745S - UP TO S/N XXX

1шт.

2

3144653R91

FLYWHEEL

SINGLE CLUTCH - 844S, 845 - UP TO S/N XXX

1шт.

2

3218474R92

FLYWHEEL WITH GEAR

856XL - ITEM 2 WITH 3, 4, 20

1шт.

3

3144612R1

GEAR

RING - 733+V+E

1шт.

3

3055133R1

CROWN WHEEL

GEAR, RING - 743+XL, 745S, 745XL, SU-644

1шт.

3

3144607R1

CROWN WHEEL

GEAR, RING - 844S, 844XL, 845XL

1шт.

4

3055431R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

BALL, 733+V+E

1шт.

4

3055299R91

BALL BEARING

BALL, 743+XL, 745X, 745XL, 844S, 844XL - 845+XL, SU-644

1шт.

4

3055299R91

BALL BEARING

BALL

1шт.

4

3138598R91

BALL BEARING

BALL

1шт.

4

3218393R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

BALL - OPTIONAL FOR 856XL

1шт.

5

3132968R93

CRANKSHAFT BEARING

W/CONNECTING ROD BEARINGS - D-206

1шт.

5

3144626R92

CRANKSHAFT BEARING

W/CONNECTING ROD BEARINGS - D-239, DT-239, D-246

1шт.

5

3228376R91

BEARING ASSY

W/CONNECTING ROD BEARINGS - D-268 - S/N XXX UP

1шт.

CRANK PIN WIDTH 44 MM

1шт.

5

3144872R94

CRANKSHAFT

W/CONNECTING ROD BEARINGS - D-268 - UP TO S/N XXX - ORDER - 3228376R91 + 4 X 3055030R24

1шт.

CRANK PIN WIDTH 42 MM

1шт.

5

3218861R91

CRANKSHAFT

ASSY., 0.250 MM UNDERSIZE

1шт.

5

3218864R91

CRANKSHAFT

ASSY, 0.500 MM UNDERSIZE - DT-239

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

Roll, Item 5 with 6 - 10

1шт.

6

3055028R1

PINION

CRANKSHAFT 33 TEETH

1шт.

7

NLS

NO LONGER SERVICED

PIN

1шт.

8

3055129R21

CRANKSHAFT BEARING

MAIN STANDARD SIZE

1шт.

8

3056820R11

BEARING ASSY

UNDERSIZE 0.25 MM

1шт.

8

3056875R11

BEARING ASSY

UNDERSIZE 0.50 MM

1шт.

8

3056881R21

CRANKSHAFT BEARING

UNDERSIZE 0.075 MM - DT-239

1шт.

9

3055130R21

CRANKSHAFT BEARING

BEARING, STANDARD SIZE/COTE STANDARD

4шт.

9

3056832R21

BEARING ASSY

UNDERSIZE 0.25 MM

4шт.

9

3056877R21

BEARING ASSY

UNDERSIZE 0.50 MM

4шт.

9

3056880R1

BEARING, UNDERSIZE 0.075 MM - DT 239

4шт.

10

3136237R1

PINION

GEAR, BALANCER DRIVE - D-206, D-239, DT-239, D-246

1шт.

10

3144700R1

GEAR

BALANCER DRIVE - D-268

1шт.

11

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

12

3228133R93

SEAL KIT

SPACER W/O-RING AND OIL SEAL

1шт.

12

3228258R91

O-RING

SPACER W/ O-RING AND OIL SEAL - DT 239

1шт.

13

3055174R1

BUSHING

DOWEL

2шт.

14

3138834R1

PULLEY

733+V+E, 743+XL, 745S, 745XL, 844, 844XL, 845+XL

1шт.

14

3138838R2

PULLEY

258, 584, 585XL, 268, 685XL, H84 268HD, 278, 784, 785XL

1шт.

15

3138874R1

BEARING WASHER

RING, PRESSURE

1шт.

16

3055154R1

WASHER

PRESSURE

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

17

3132875R41

HOUSING

BALANCER, WEIGHT CPTE. - D-206, D-239, D-246

1шт.

17

3144702R91

HOUSING

BALANCER, WEIGHT CPTE. - D-268

1шт.

17

3132874R94

HOUSING

BALANCER, WEIGHT CPTE. - DT 239 - ITEM 17 WITH 13, 18, 19 + 21

1шт.

179869

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

7/16 X 57 MM

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

7/16 X 51 MM

1шт.

3218543R1

LOCK WASHER

3шт.

18

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

19

3228372R91

BALANCING WEIGHT

DRIVE - D-206

1шт.

19

3228374R1

WEIGHT, BALANCER, DRIVE - D-239, D-246, DT-239

1шт.

19

3228375R91

BALANCER

WEIGHT, DRIVE - D-268

1шт.

20

933616R1

CIRCLIP,#47, 43.7 x 4.04 x 1.12

SNAP - 733+V+E ONLY

1шт.

21

3132878R11

PIN,23mm OD x 93mm L

SHAFT, BALANCER WEIGHT

2шт.

932229R1

SPLIT PIN/SAFETY PIN

ROLL 4 X 20 MM

2шт.

932299R1

LOCK PIN,M2.5 x 20, Slotted

Roll

2шт.

22

3138594R1

PULLEY

SU-644 S/N 150056 UP

1шт.

22

3132545R1

PULLEY

SU-644 UP TO S/N 150055

1шт.

23

3055152R91

RING

SPRING, ANNULAR

1шт.

24

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

THRUST

1шт.

25

3218394R1

BUSHING

SPRING, ANNULAR 2 X 3055152R91 + 2 X 3055153R1

1шт.

26

3136282R11

PULLEY

WITH ITEM 27 - 856 XL

1шт.

26

3136324R11

PULLEY

WITH ITEM 27 - 884, 885XL

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

6шт.

933806R1

WASHER

SPRING 3/8

6шт.

27

932338R1

DOWEL,M4 x 14

PIN

1шт.

28

3136283R1

DAMPER

VIBRATION - 884, 885XL, 856XL

1шт.

29

3136044R41

FLYWHEEL WITH GEAR

258, 584, 585XL, 268, 684, 685XL H84, 268HD, 278, 784, 785X L

1шт.

29

3218635R91

FLYWHEEL

884, 885XL

1шт.

29

3218556R91

ENGINE FLYWHEEL

262 F.A.I. - ITEM 29 WITH 30 + 31

1шт.

30

60883H

RING GEAR

258, 584, 585XL, 268, 684, 685XL H84, 268HD, 278, 784, 785XL, 262 F.A.I.

1шт.

30

3218637R1

CROWN WHEEL

GEAR, RING - 884, 885XL

1шт.

31

3218037R1

BOLT,Hex, 1/2" - 20 x 58.5mm

Flywheel

7шт.

31

3218558R1

BOLT

FLYWHEEL 262 F.A.I.

7шт.

32

3138838R2

PULLEY

262 F.A.I.

1шт.

Выбрано товаров: 81
