Запчасти Case IH D-246 (11-017) - INJECTION PUMP, INJECTION LINES, NOZZLE HOLDER

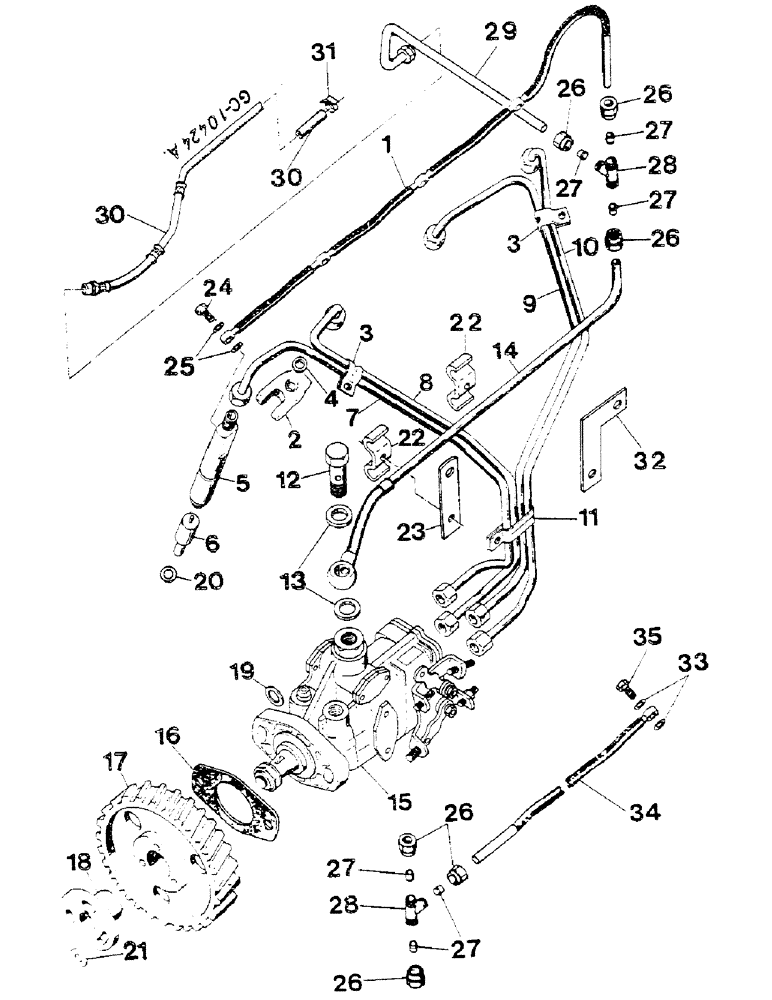

Схема запчастей Case IH D-246 - (11-017) - INJECTION PUMP, INJECTION LINES, NOZZLE HOLDER
27
35
17
12
15
9
26
6
7
11
27
18
14
20
21
27
10
22
34
27
19
5
26
27
28
22
32
30
33
13
25
16
23
3
3
8
4
24
26
29
28
30
2
26
31
26

Артикул

Название

Примечание

Количество

1

3218124R1

HOSE

LINE LEAK

1шт.

2

3218128R1

RETAINER

HOLDER

4шт.

24477R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

3

3132770R1

COLLAR

PIPE

2шт.

3

3218241R1

CLAMP

PIPE - MOULDED RUBBER INSERT

2шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

4

3218129R1

WASHER

4шт.

5

NSS

NOT SOLD SEPARAT

HOLDER, INJECTION NOZZLE

4шт.

6

3218251R2

NOZZLE CAP

D-239, D-246, D-268

4шт.

6

3218248R2

NOZZLE CAP

D-206

4шт.

6

735255C91

REMAN-FUEL INJECTOR

Remanufactured Nozzle

1шт.

6

1934199C1

CORE-FUEL INJECTOR

Return number

1шт.

7

3218149R1

INJECTION PIPE

INJECTION CYLINDER 1 - 743/745XL

1шт.

7

3218174R1

INJECTION PIPE

INJECTION CYLINDER 1 - 844 XL

1шт.

7

3218481R1

LINE

INJECTION, CYLINDER 1 - 258-858XL

1шт.

7

3218154R1

INJECTION PIPE

INJECTION CYLINDER 1 - 268-685XL, 262 F.A.I.

1шт.

7

3218486R1

INJECTION PIPE

INJECTION CYLINDER 1 - H84-785XL

1шт.

7

3228396R1

INJECTION PIPE

INJECTION, CYLINDER 1 - 884, 885XL

1шт.

7

3218169R1

PIPE

INJECTION CYLINDER 1 - SU-644

1шт.

8

3218150R1

INJECTION PIPE

INJECTION CYLINDER 2 - 743/745XL

1шт.

8

3218175R1

INJECTION PIPE

INJECTION CYLINDER 2 - 844XL

1шт.

8

3218482R1

PIPE

INJECTION CYLINDER 2 - 258-858XL

1шт.

8

3218155R1

INJECTION PIPE

INJECTION CYLINDER 2 -262 F.A.I. 268-685XL

1шт.

8

3218487R1

INJECTION PIPE

INJECTION CYLINDER 2 - H84-785X L

1шт.

8

3228397R1

INJECTION PIPE

INJECTION CYLINDER 2 - 884, 885XL

1шт.

8

3218170R1

PIPE

INJECTION CYLINDER 2 - SU-644

1шт.

9

3218151R1

INJECTION PIPE

CYLINDER 3 - 743/745XL

1шт.

9

3218176R1

INJECTION PIPE

INJECTION CYLINDER 3 - 844XL

1шт.

9

3218156R1

INJECTION PIPE

INJECTION CYLINDER 3 - 262 F.A.I. 268-685XL

1шт.

9

3218228R1

INJECTION PIPE

INJECTION CYLINDER 3 - 84-785XL

1шт.

9

3228398R1

INJECTION PIPE

INJECTION CYLINDER 3 - 884, 885XL

1шт.

9

3218171R1

PIPE

INJECTION CYLINDER 3 - SU-644

1шт.

9

3218483R1

PIPE

INJECTION CYLINDER 3 - 258-585XL

1шт.

10

3218152R1

INJECTION PIPE

INJECTION CYLINDER 4 - 743/745XL

1шт.

10

3218177R1

INJECTION PIPE

CYLINDER 4 - 844XL

1шт.

10

3218484R1

PIPE

INJECTION CYLINDER 4 - 258-585 XL

1шт.

10

3218157R1

INJECTION PIPE

INJECTION CYLINDER 4 - 262 F.A.I. 268-685XL

1шт.

10

3218229R1

INJECTION PIPE

INJECTION CYLINDER 4 - H84-785XL

1шт.

10

3228399R1

INJECTION PIPE

INJECTION CYLINDER 4 - 884, 885XL

1шт.

10

3218172R1

LINE

INJECTION CYLINDER 4 - SU-644

1шт.

11

3132768R1

CLAMP

PIPE

1шт.

11

3218243R1

CLAMP

PIPE - MOULDED RUBBER INSERT

1шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

12

3059086R1

BANJO BOLT

SCREW, HOLLOW M12

1шт.

13

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

2шт.

14

3228329R1

HOSE

LINE OVERFLOW - 743, 745/844XL, 262 F.A.I.

1шт.

14

3144138R1

TUBE

SPARE PART LINE, OVERFLOW - SU-644 ONLY

1шт.

14

3144382R1

TUBE ASSY.

LINE OVERFLOW

1шт.

15

NSS

NOT SOLD SEPARAT

PUMP, INJECTION, NATURALLY ASPIRATED ENGINES

1шт.

15

3228395R91

PUMP

INJECTION - 884, 885XL

1шт.

933981R1

NUT,M12 x 1.75, Cl 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

933834R1

LOCK WASHER,M12

12 MM

1шт.

16

3055384R1

GASKET

1шт.

17

3056885R3

PINION

GEAR, INJECTION PUMP

1шт.

17

3055066R3

GEAR

INJECTION PUMP - 743, 745XL, SU-644

1шт.

18

3055067R2

HUB

PUMP GEAR

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 X 19 MM

3шт.

19

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

2шт.

20

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

4шт.

21

30183R1

WASHER,M8 x 21.5 x 2.5, HT

3шт.

22

3055386R1

CLAMP

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

2шт.

23

3055387R1

LINK

FIXING

2шт.

23

3132174R1

LINK

FIXING - 258-585XL, 268-685XL, H84-785XL, SU-644

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

2шт.

24

3218130R1

BANJO BOLT,Hex, M6 x 133.02mm

HOLLOW M6

4шт.

25

933696R1

SEALING RING,M6 x 10 x 1

Packing

8шт.

26

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

COUPLING

3шт.

27

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

SEAL

3шт.

28

3056138R1

TEE,M8 Tube

UNION - 743/745/844XL, SU-644, 262 F.A.I.

3шт.

28

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

T

1шт.

29

3228536R1

PIPE

RETURN, TO FUEL TANK - 743XL, 745XL

1шт.

29

3228414R1

PIPE

RETURN, TO FUEL TANK - 844XL

1шт.

30

3228538R2

TUBE

RETURN - 743/745XL

1шт.

30

3228416R1

FUEL HOSE

RETURN - 844XL

1шт.

31

3144656R1

HOSE CLAMP

743/745/844XL

1шт.

32

3055678R1

PLATE

ANGLE, 884, 885 XL ONLY

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

1шт.

33

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

2шт.

34

3133290R1

HOSE

RETURN - SU-644

1шт.

35

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

HOLLOW M14

1шт.

Выбрано товаров: 88
