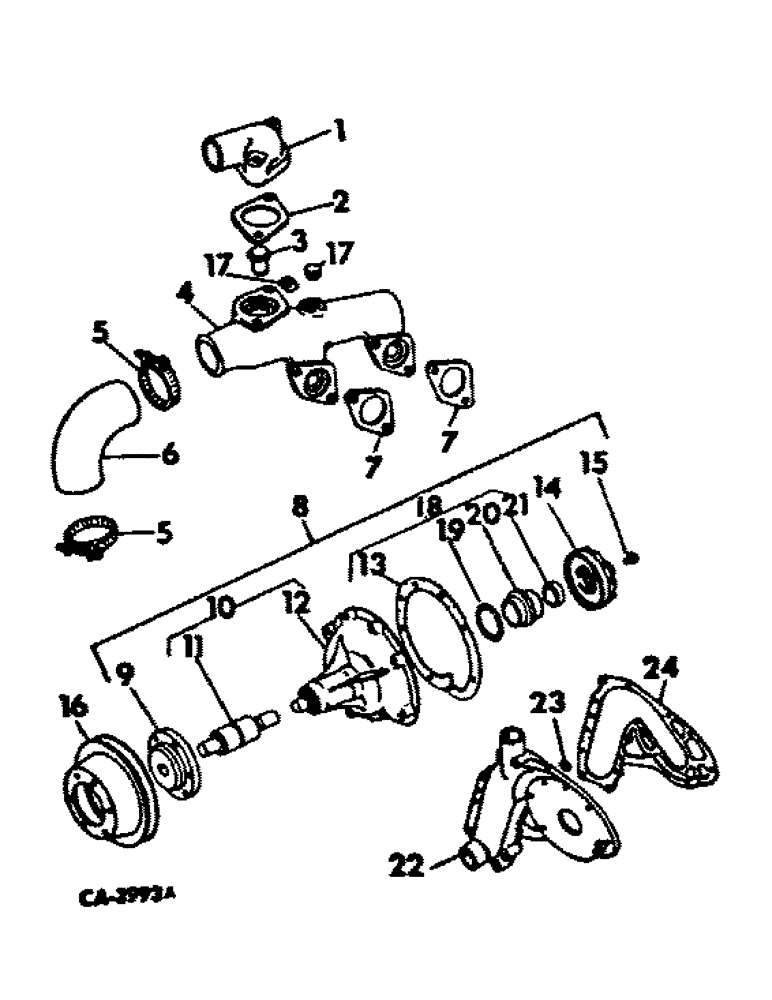

Запчасти Case IH D-239 (D-07) - THERMOSTAT AND WATER PUMP, 5000 THRU 5500 WINDROWERS

1

3132718R1

HOUSING

ELBOW, water outlet

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

3132143R1

GASKET

water outlet elbow

1шт.

3

3228046R1

THERMOSTAT

180 to 194 deg, Replaces 3059676R91

1шт.

4

3132727R2

MANIFOLD

water collecting

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex.

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

5

3218259R1

CLAMP,M40-60, Worm

STRAP, clamping, Replaces 3055258R91

2шт.

6

3132720R1

HOSE

-, Serial Range: Elbow-manifold

1шт.

7

3055306R1

GASKET

water collecting manifold

2шт.

8

3132738R93

PUMP, WATER

PUMP ASSY., water, Less ref. 13

1шт.

8

735098C91

REMAN-WATER PUMP

1шт.

8

1928117C1

CORE-WATER PUMP

Return Number

1шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

3шт.

28300R1

HEX SOC SCREW,5/16" - 18 x 3 3/8"

5/16 x 3-3/8 pln h/shd cap

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

3050129R1

LOCK WASHER

WASHER, 5/16 lock

4шт.

9

3055188R1

HUB

pulley

1шт.

10

3218768R91

BODY

ASSY., pump, Replaces 3144662R91

1шт.

11

3144445R1

BEARING, pump, Used w/housing, 3144609R2

1шт.

11

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

pump, Used w/housing, 3132677R3

1шт.

12

HOUSING, pump, Order body or pump assy.

1шт.

13

3055177R1

GASKET

pump, Not part of pump assy.

1шт.

14

3055211R2

IMPELLER

pump

1шт.

15

3055308R1

PLUG

closing

1шт.

16

3055178R1

PULLEY

fan and pump

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5000/5500 windrowers Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

17

444667

PLUG

1/2 nptf pipe

4шт.

18

3055285R93

GASKET KIT

PACKAGE, water pump reconditioning, Replaces 3055285R92

1шт.

19

3055260R1

O-RING

sealing

1шт.

20

NSS

NOT SOLD SEPARAT

RING, retainer with seal, Not furnished separately, Furnish 3055285R93 reconditioning package

1шт.

21

NSS

NOT SOLD SEPARAT

RING, seal, Not furnished separately, Furnish 3055285R93 reconditioning package

1шт.

22

3136764R1

HOUSING

CHANNEL, water

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

426444

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

SCREW, 5/16-18 x 3-1/4 hex-hd

5шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

7шт.

933570R1

WASHER

SPRING, washer

5шт.

3050129R1

LOCK WASHER

WASHER, lock

5шт.

23

3055246R1

GASKET

water channel

1шт.

24

3136766R2

SEALING WASHER

water channel

1шт.
