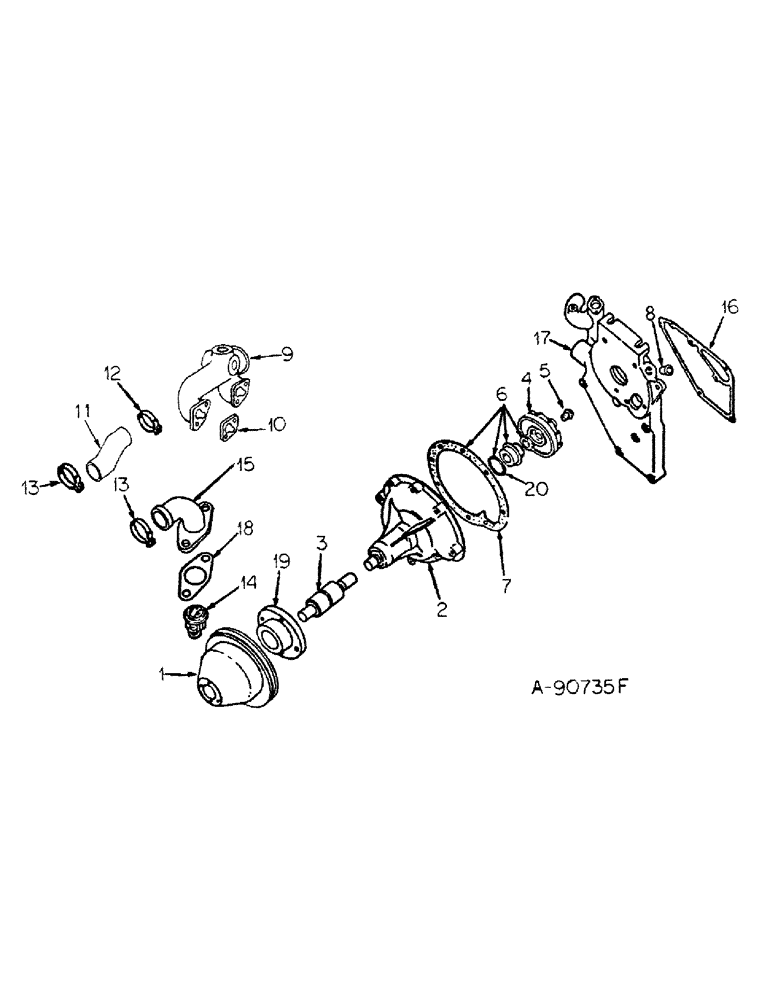

Запчасти Case IH D-239 (D-06) - THERMOSTAT AND WATER PUMP, ALL MACHINES EXCEPT 5000 THRU 5500 WINDROWERS

3132739R93

PUMP, WATER

PUMP ASSY., water, Replaces 3132145R91, 544, 2544 & 664 tractors, Consists of

1шт.

3132739R92GV

WATER PUMP

Value, Water Pump Assy.

1шт.

735099C91

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

1928119C1

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

3132146R1

HUB

HUB

1шт.

NSS

NOT SOLD SEPARAT

BODY ASSY

1шт.

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

BEARING

1шт.

787579R2

IMPELLER

IMPELLER

1шт.

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

NSS

NOT SOLD SEPARAT

SEAL

1шт.

3055308R1

PLUG

PLUG

1шт.

NSS

NOT SOLD SEPARAT

PACKING

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/2", G5

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

3136053R92

PUMP, WATER

PUMP ASSY., water, 574, 674 and 3500A tractors, Consists of

1шт.

735102C91

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

1928123C1

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

3132146R1

HUB

HUB

1шт.

NSS

NOT SOLD SEPARAT

BODY ASSY.

1шт.

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

BEARING

1шт.

3055211R2

IMPELLER

IMPELLER

1шт.

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

NSS

NOT SOLD SEPARAT

SEAL

1шт.

3055308R1

PLUG

PLUG

1шт.

NSS

NOT SOLD SEPARAT

PACKING

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/2", G5

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

1

401124R2

PULLEY

PULLEY, water pump

1шт.

2

3218768R91

BODY

BODY ASSY., water pump, Includes ref. no. 3

1шт.

3

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

BEARING, water pump, Used w/housing, 3132677R3

1шт.

To indentify water pump housing measure outside diameter of cylindrical neck of water pump housing. Housing, 3132677R3, 55 MM, Housing 3144609R2, 70 MM.

1шт.

3

3144445R1

SPARE PART BEARING, water pump, Used w/housing, 3144609R2

1шт.

To indentify water pump housing measure outside diameter of cylindrical neck of water pump housing. Housing, 3132677R3, 55 MM, Housing 3144609R2, 70 MM.

1шт.

4

787579R2

IMPELLER

IMPELLER, water pump, Used w/pump 3132739R92

1шт.

4

3055211R2

IMPELLER

IMPELLER, water pump, Used w/pump 3136053R91

1шт.

5

3055308R1

PLUG

PLUG, closing

1шт.

6

3055285R93

GASKET KIT

PACKAGE, water pump reconditioning, Replaces 3055285R92

1шт.

7

3055177R1

GASKET

GASKET, water pump

1шт.

8

444630

PLUG,Hex Hd, 1/2"-14

PLUG, pipe

1шт.

9

3218034R1

MANIFOLD

MANIFOLD, water collecting, Replaces 3055255R1

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

444667

PLUG

PLUG, 1/2-14 znp sq/skt auto pipe

2шт.

425-115

NUT,5/16"-24, G5

NUT, 5/16-24 hex.

8шт.

933570R1

WASHER

DISK, spring

7шт.

3136506R1

RING

RING, packing

1шт.

712616R1

PLUG,Hex, M14 x 1.5

PLUG, Hex, M14 x 1.5

1шт.

933610R1

SEALING RING,M14 x 18 x 1.8

SEALING WASHER, , Packing M14 x 18 x 1.8

1шт.

10

3055306R1

GASKET

GASKET, water collecting pipe

4шт.

11

3132144R1

HOSE,38.60 mm ID, 50.70 mm ID x 112.00 mm

Connecting, Used w/pipe 3055255R1

1шт.

11

3144028R2

HOSE

Connecting, Used w/manifold 3218034R1

1шт.

12

3144921R1

CLAMP,M50-70, Worm

CLAMP, hose, Replaces 714507R91

1шт.

13

3218259R1

CLAMP,M40-60, Worm

CLAMP, water pipe to thermostat, Replaces 3136499R1

2шт.

14

3228046R1

THERMOSTAT

THERMOSTAT, 180 to 194 deg, Replaces 3059676R91

1шт.

15

3132352R1

SPARE PART ELBOW, water outlet, Replaces 3132142R1, 544, 664 and 2544 tractors

1шт.

15

3132142R2

FLANGE

FLANGE, water oulet, 574 and 674 tractors

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

3055999R1

GASKET

GASKET, water pump carrier

1шт.

17

3136678R1

HOUSING

CARRIER, water pump, 574 and 674 tractors

1шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

BOLT, Hex, 5/16"-18 x 3 1/2", G5

1шт.

186272

BOLT,Hex, 5/16" - 18 x 4", Gr 5

BOLT, Hex, 5/16"-18 x 4", G5

1шт.

179830

BOLT, Hex, 5/16"-18 x 3", G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

445686

PLUG

PLUG, 1/2-14 hex-hd pipe

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16-18 hex.

2шт.

3055574

WASHER, flat round hole

1шт.

17

3132141R1

HOUSING

CARRIER, water pump, 544, 664 and 2544 tractors

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16-18 hex.

2шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

BOLT, Hex, 5/16"-18 x 3", G5

1шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

BOLT, Hex, 5/16"-18 x 3 1/2", G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

445686

PLUG

PLUG, 1/2-14 hex-hd pipe

1шт.

933570R1

WASHER

DISC, spring

2шт.

18

3132143R1

GASKET

GASKET, water outlet

1шт.

19

3132146R1

HUB

HUB, water pump pulley

1шт.

20

3055260R1

O-RING

O-RING, pump housing

1шт.
