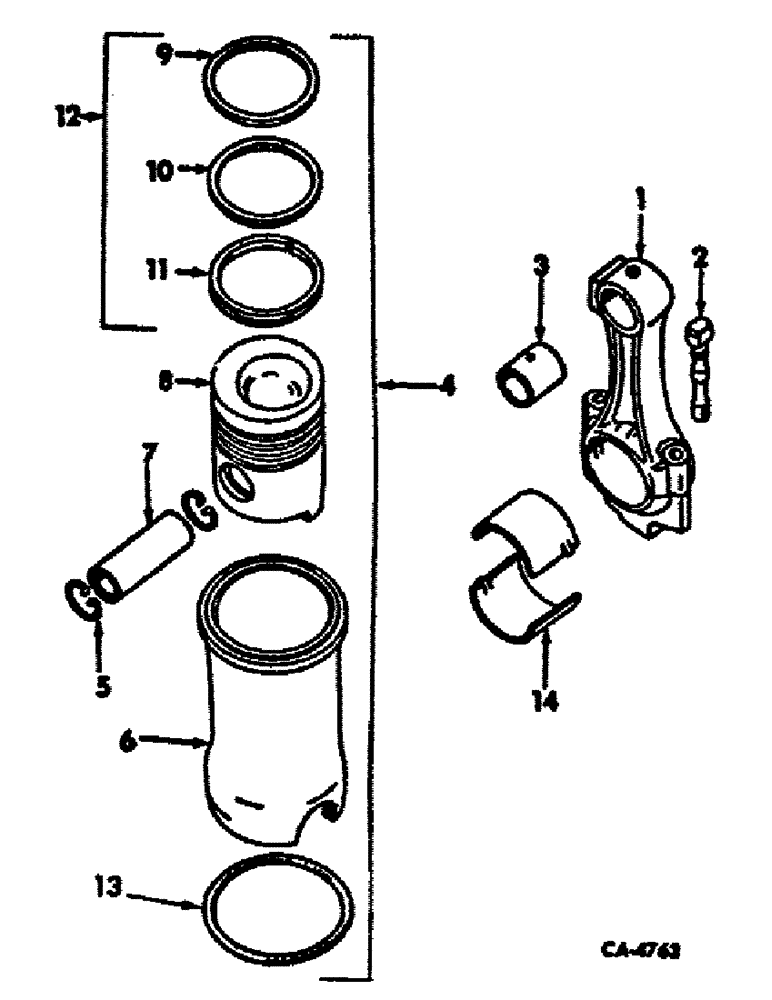

Запчасти Case IH D-239 (D-05) - CONNECTING RODS, PISTONS AND SLEEVES, THREE RING PISTONS

1

3055030R24

ROD, CONNECTING

ROD ASSY., connecting, Includes ref. nos. 2 and 3

4шт.

2

3055033R11

BOLT

W/Nut Assy

8шт.

3

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

piston pin

4шт.

4

3218759R94

ELEC CONNECTOR

PISTON W/SLEEVES, piston w/rectangular shaped top ring groove

4шт.

Ref: #4 3218759R94 Piston W/ Sleeves - 4- use Piston # 3144926R1 Piston 6-June-96

1шт.

4

3139591R96

PISTON & RINGS KIT

PISOTN W/SLEEVES, piston w/keystone shaped top ring groove

4шт.

5

933327R1

SNAP RING,M36, Int

RING, piston pin retainer

8шт.

5

3228245R1

RING, SNAP

RING, piston pin retainer

8шт.

6

3139592R4

SLEEVE CYLINDER

SLEEVE, cylinder

4шт.

7

3055217R2

PISTON PIN

PIN, piston

4шт.

8

NSS

NOT SOLD SEPARAT

PISTON, Not serviced separately, Ref. no. 4

1шт.

9

RING, piston compression, First, Order ref. no. 12

4шт.

10

RING, piston compression, Second, Order ref. no. 12

1шт.

11

RING, piston oil, Order ref. no. 12

1шт.

12

3144452R92

PISTON RING SET

SET, piston ring, Rectangular shaped top ring groove

4шт.

Ref: #12 3144452R92 - Top Compression ring changed from Keystone cross section to rectangular cross section. See service bulletins S-2442 and S-3178. 6-June-96

1шт.

574 GD tractors with engine serial number 085271 and below, 574 HS tractors with engine serial number 105900 and below and 674 tractors with engine serial number 451290 and below, 5000/5500 windrowers 21469 and below, Optional with 3218416R91, Consists of two compression and one oil ring

1шт.

12

3218416R91

PISTON RING SET

SET, piston ring, Chrome, Optional with 3144452R92, Rectangular shaped top ring groove

4шт.

12

3139594R91

PISTON RING

SET, piston ring, Chrome, Keystone shaped top ring groove

4шт.

574GD tractors w/engine serial number 085272 and above, 574 HS tractors with engine serial number 105901 and above & 674 tractors with engine serial number 451291 and above, 5000/5500 windrowers w/engine serial no. 21470 and above, Consists of two compression and one oil ring

1шт.

13

3228348R1

RING,4.75mm Thk x 109.16mm ID

cyl. sleeve packing, Replaces 3218603R1, 5000/5500 windrowers engine serial number 21187 and above, 574GD tractors engine serial number 103204 and above

4шт.

13

3228344R1

SEALING RING,5mm Thk x 110mm ID

RING, cyl. sleeve packing, 544, 2544, 574HS, 664 and 674 tractors, 574GD tractors engine serial number 103203 and below, 5000/5500 windowers engine serial number 21186 and below

4шт.

14

3055351R91

BEARING ASSY

BEARING ASSY., connecting rod, Std.

4шт.

14

3056834R11

BEARING ASSY

BEARING ASSY., connecting rod, .010 U/S

4шт.

14

3056879R11

BEARING ASSY

BEARING ASSY., connecting rod, .020 U/S

4шт.

14

3055781R11

BEARING ASSY

ASSY., connecting rod, .030 U/S, No longer available

4шт.

3218538R1

SHIM

cylinder sleeve, 0.05 MM

1шт.

3218539R1

SHIM

cylinder sleeve, 0.1 MM

1шт.

3218540R1

SHIM,112.06mm ID x 118.6mm OD x 0.25mm Thk

cylinder sleeve, 2.25 MM

1шт.

3218541R1

SHIM

cylinder sleeve, 0.5 MM

1шт.

3218542R1

SHIM

cylinder sleeve, 0.8 MM

1шт.
