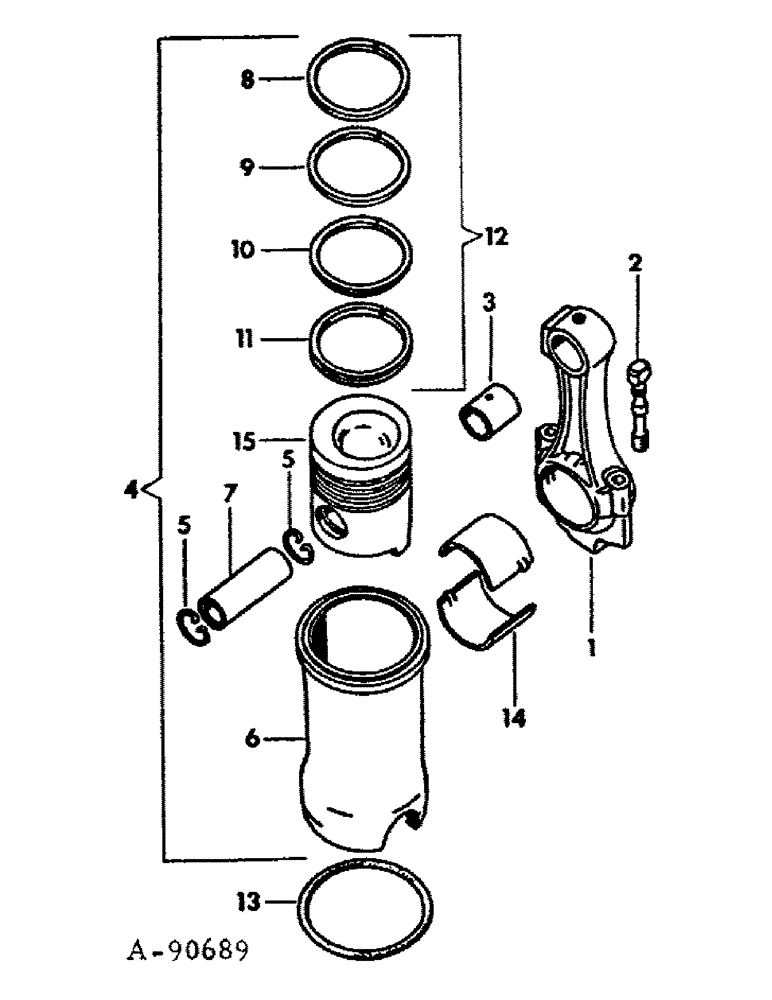

Запчасти Case IH D-239 (D-04) - CONNECTING RODS, PISTONS AND SLEEVES, FOUR RING PISTONS

1

3055030R24

ROD, CONNECTING

ROD ASSY., connecting, Includes ref. nos. 2 and 3, Replaces 3132996R91

4шт.

2

3055033R11

BOLT

W/Nut Assy

8шт.

Ref: #2 Bolt W/ Wing Nut - P/N#s Bolt 3055033R1 Nut 3055034R1 5-June-96

1шт.

3

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

piston pin, Engines must also be equipped w/cylinder head gasket, 3228362R1

4шт.

4

3139591R96

PISTON & RINGS KIT

PISTON W/SLEEVES, piston w/sleeve, 3139591R96

4шт.

REF 4 - SEE SERVICE BULLETIN S2442 FOR MORE DETAILS ON NEW RING PISTONS FOR THIS ENGINE. CNS

1шт.

Contains a 3 ring piston w/keystone shaped top ring groove, When servicing an engine that has 4 ring piston w/sleeve assemblies all piston w/sleeve assemblies must be replaced with piston, Piston w/sleeve, 3139591R95

1шт.

5

933327R1

SNAP RING,M36, Int

RING, piston pin retainer, or

8шт.

5

3228245R1

RING, SNAP

RING, piston pin retainer

8шт.

6

3139592R4

SLEEVE CYLINDER

SLEEVE, cyl.

4шт.

7

3055217R2

PISTON PIN

PIN, piston

4шт.

8

RING, piston compression, First, Order ref. no. 12

4шт.

9

RING, piston compression, Second, Order ref. no. 12

1шт.

10

RING, piston compression, Third, Order ref. no. 12

1шт.

11

RING, piston compression, Fourth, Order ref. no. 12

1шт.

12

3059263R93

RING, SET

SET, piston ring, For 4 ring pistons, Consists of three compression and one oil ring

4шт.

12

3138670R92

PISTON RING SET

SET, piston ring, For 4 piston rings, Heavy duty and industrial, All chrome rings, Consists of three compresssion and one oil ring

1шт.

12

3144452R92

PISTON RING SET

SET, piston ring, for 3 ring pistons w/rectangular shaped top ring groove, Optional w/3218416R91, Consists of two compression and one oil ring

1шт.

12

3218416R91

PISTON RING SET

SET, piston ring, Chrome, For 3 ring pistons w/rectangular shaped top ring groove, Optional w/3144452R92, Consists of two compression and one oil ring

1шт.

12

3139594R91

PISTON RING

SET, piston ring, Chrome, For 3 ring pistons w/keystone shaped top ring groove, Consists of two compression and one oil ring

1шт.

13

3228348R1

RING,4.75mm Thk x 109.16mm ID

cyl. sleeve packing, Replaces 3218603R1, 5000/5500 windrowers engine serial number 21187 and above, 57GD tractors engine serial number 103204 and above

1шт.

13

3228344R1

SEALING RING,5mm Thk x 110mm ID

RING, cyl. sleeve packing, 544, 2544, 574HS, 664 and 674 tractors, 574GD tractors engine serial number 103203 and below, 5000/5500 windrowers engine serial number 21186 and below

1шт.

14

3055351R91

BEARING ASSY

BEARING ASSY., connecting rod, Std.

4шт.

14

3056834R11

BEARING ASSY

BEARING ASSY., connecting rod, .010 U/S

4шт.

14

3056879R11

BEARING ASSY

BEARING ASSY., connecting rod, .020 U/S

4шт.

14

3055781R11

BEARING ASSY

ASSY., connecting rod, .030 U/S, No longer available

4шт.

15

NSS

NOT SOLD SEPARAT

PISTON, Not serviced separately, Order piston w/sleeves, 313959R95

1шт.

3218538R1

SHIM

cylinder sleeve, 0.05 MM

1шт.

3218539R1

SHIM

cylinder sleeve, 0.1 MM

1шт.

3218540R1

SHIM,112.06mm ID x 118.6mm OD x 0.25mm Thk

cylinder sleeve, 0.25 MM

1шт.

3218541R1

SHIM

cylinder sleeve, 0.5 MM

1шт.

3218542R1

SHIM

cylinder sleeve, 0.8 MM

1шт.
