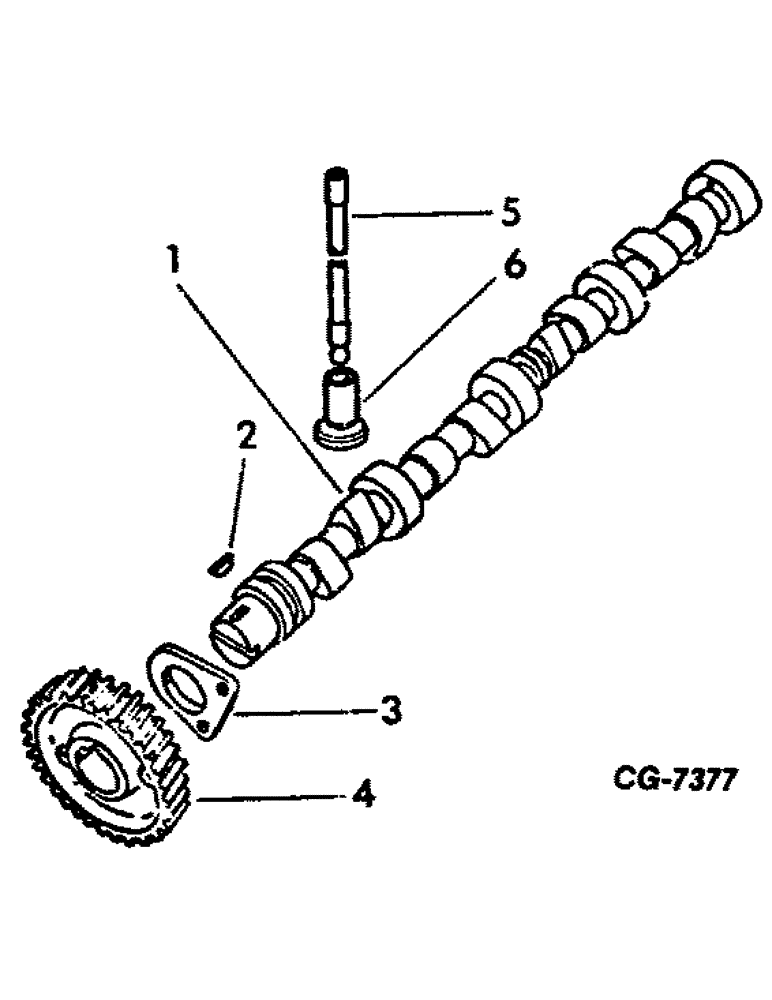

Запчасти Case IH D-239 (D-03) - CAMSHAFT AND RELATED PARTS

1

3055046R2

CAMSHAFT

1шт.

Ref #1 R2 had 5 bearing surfaces

1шт.

2

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

KEY, camshaft gear

1шт.

3

3055051R2

PLATE

camshaft thrust or

1шт.

R3 has 3 bearing surfaces (2) bearings were eliminated. Service Manual & Bulletins cover this change. newest service manual GSS1377 pg. 1-37

1шт.

3

3218896R1

PLATE

camshaft thrust

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 znd type 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

3055176R1

PINION

GEAR, camshaft, 66 teeth

1шт.

5

3144341R1

PUSH ROD

ROD, valve push, Replaces 3136967R1

8шт.

6

3055052R1

TAPPET

valve push

8шт.
