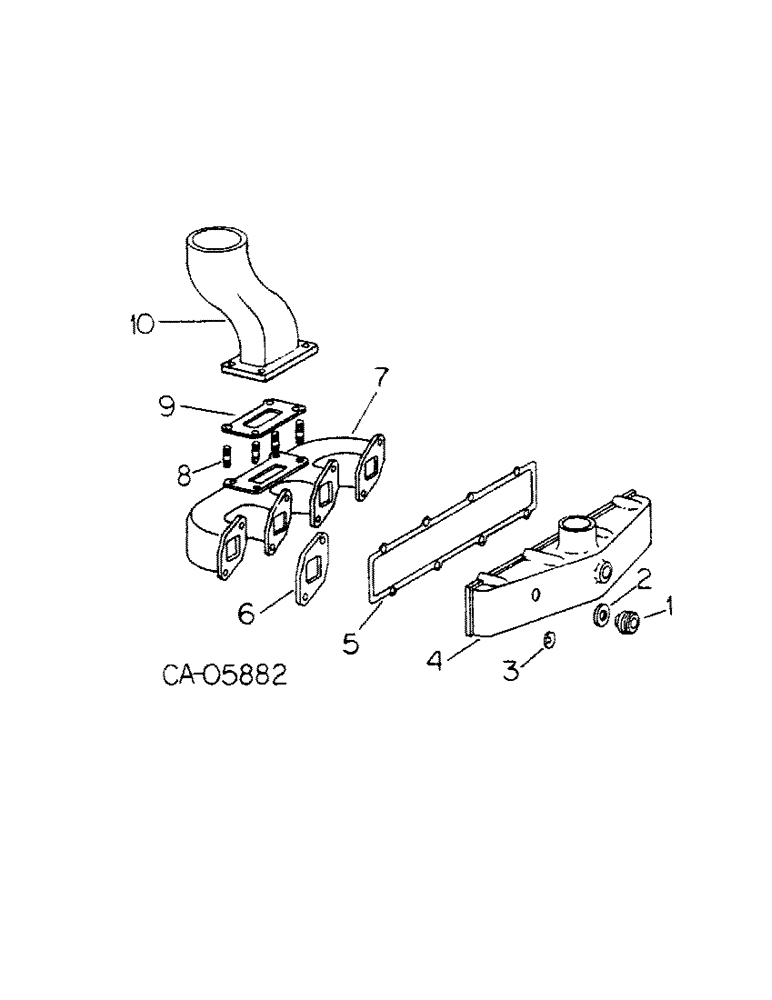

Запчасти Case IH D-239 (D-43[A]) - EXHAUST SYSTEM, VERTICAL, 5000 THRU 5500 WINDROWERS WITH ENGINE SERIAL NUMBER DF2D020227 AND ABOVE

1

3132229R1

PLUG

1шт.

2

933945R1

SEALING RING,M23 x 28 x 2.5

RING, packing

1шт.

3

933570R1

WASHER

DISC, spring

8шт.

4

3055507R4

INLET MANIFOLD

MANIFOLD, intake

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

5

3055278R1

MANIFOLD GASKET

intake manifold or

1шт.

5

3055398R1

GASKET

intake manifold

1шт.

6

3132434R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold

4шт.

7

3136066R12

MANIFOLD ASSY

MANIFOLD, with 4 studs 3055663R1, exhaust

1шт.

103026

NUT,3/8"-24, G5

8шт.

20285H

WASHER

.406 x .750 x .105

8шт.

8

3055663R1

STUD

exhaust manifold

4шт.

9

3136248R1

MANIFOLD GASKET,0.5mm Thk

exhaust elbow

1шт.

10

3136668R1

ELBOW

exhaust

1шт.

9635082

NUT,5/16" - 18, Gr 5

3/8-16 hex.

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
