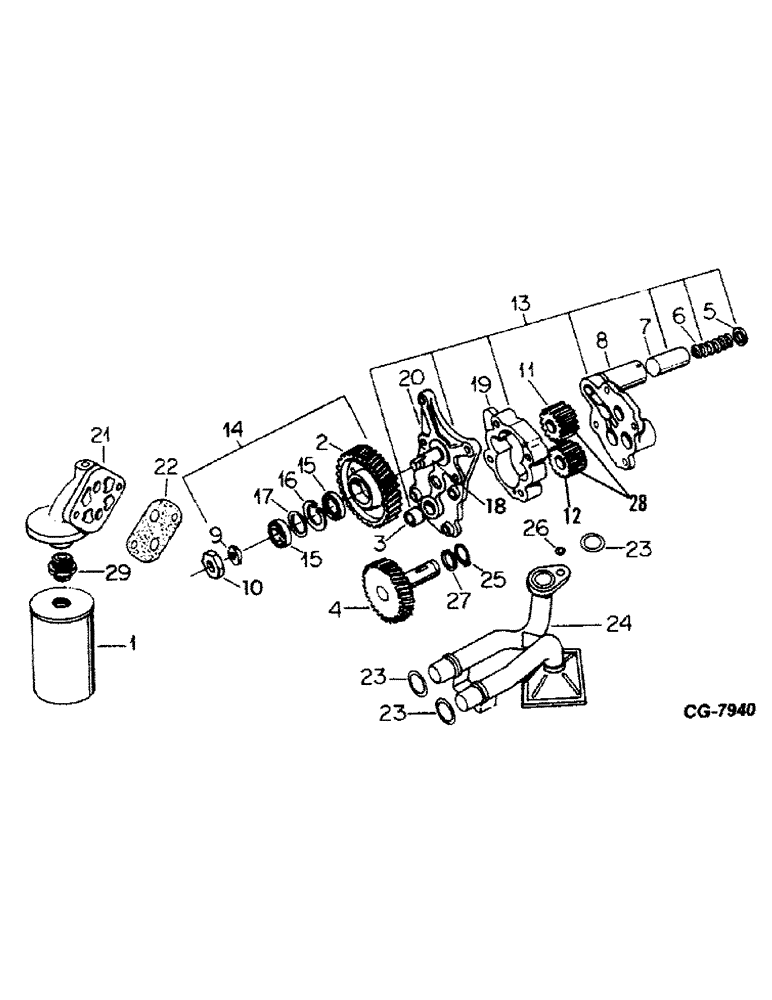

Запчасти Case IH D-239 (D-42) - LUBRICATING OIL PUMP AND FILTER, 574 AND 674 TRACTORS, 5000 THRU 5500 WINDROWERS

3136430R95

PUMP, ENGINE OIL

PUMP ASSY., oil, Will work for 3132496R92, Consists of ref. nos. 2 through 20

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

21035R1

HEX SOC SCREW,5/16"-18 x 1"

4шт.

1

3136046R93

FILTER, ENGINE OIL

FILTER, oil

1шт.

2

3055291R1

PINION

GEAR, idler

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING, Not serviced separately, Order carrier assy., 3136441R95

1шт.

4

3136442R91

PINION

GEAR ASSY., drive

1шт.

5

3139620R1

SPRING WASHER

spring, Replaces 933133R1

1шт.

6

3136264R1

SPRING

pressure relief valve

1шт.

7

3055202R2

VALVE

piston relief

1шт.

8

NSS

NOT SOLD SEPARAT

COVER ASSY., oil pump, Not serviced separately, Order carrier assy., 3136441R95

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

9

NOT USED THIS APPLICATION

1шт.

10

3228141R1

LOCK NUT

lock, Replaces 3055295R1

1шт.

11

GEAR, idler, Order gear set, 3132503R91

1шт.

12

GEAR, oil pump, Order gea set, 3132503R91

1шт.

13

3136441R95

HOUSING ASSY.

CARRIER ASSY., with 3 roll pin, Will work for 3132497R92

1шт.

932597R1

LOCK PIN,M10 x 14, Slotted

Roll M10 x 14, Slotted

3шт.

14

GEAR ASSY., idler, Order component parts

1шт.

15

476045R91

ROLLER BEARING

BEARING ASSY., roller cone

2шт.

15

476046R1

BEARING, CUP

BEARING, roller cup

2шт.

16

933579R1

SNAP RING,M35, Int

1шт.

17

3055292R1

WASHER

WASHER

1шт.

18

3055297R5

AXLE

idler gear

1шт.

19

NSS

NOT SOLD SEPARAT

CASE, oil pump gear, Not serviced separately, Order carrier assy., 3136441R95

1шт.

20

NSS

NOT SOLD SEPARAT

CARRIER, Not serviced separately, Order carrier assy., 3136441R95

1шт.

21

3136047R1

HEAD

BASE, oil filter

1шт.

21

3132209R1

PEDESTAL

BASE, oil filter, 5000/5500 windrowers

1шт.

NLS

NO LONGER SERVICED

2шт.

3144513R1

SPRING WASHER

DISK, spring, Replaces 933620R1

2шт.

22

3055237R1

GASKET

oil filter socket

1шт.

23

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

Replaces 3055199R1

3шт.

24

3132781R94

PIPE ASSY.

oi pressure and suction

1шт.

24933R1

HEX SOC SCREW,7/16"-14 x 3 3/4"

1шт.

3218543R1

LOCK WASHER

7/16 med lock

1шт.

25

933081R1

SNAP RING,M19, Ext

RING, locking, Used w/drive gear 3132500R91

1шт.

25

933579R1

SNAP RING,M35, Int

1шт.

26

717222R1

O-RING

1шт.

27

3055205R1

RING

distance, Used w/drive gear 3132500R91

1шт.

28

3132503R91

GEAR-SET

GEAR ASSY., oil pump

1шт.

29

3136308R1

CONNECTOR, ELEC

CONNECTOR, threaded, 5000/5500 windrowers

1шт.

933155R1

SEALING RING,M16 x 20 x 1.5

Packing M16 x 20 x 1.5

1шт.

3051784R1

PLUG

1шт.
