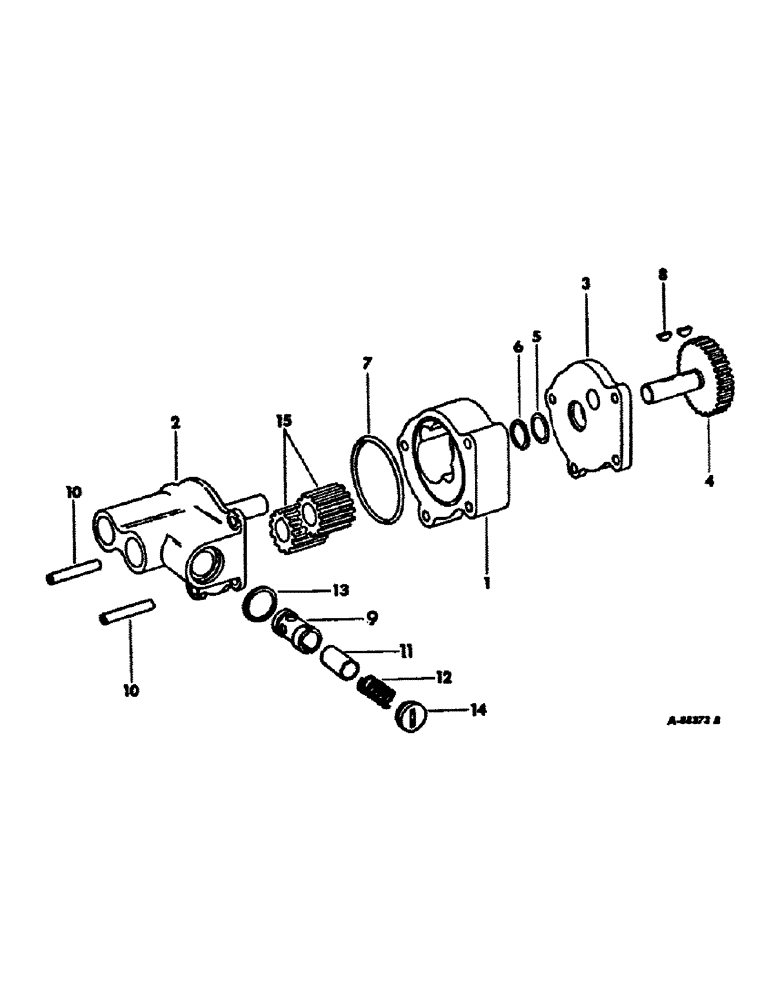

Запчасти Case IH D-239 (D-41) - LUBRICATING OIL PUMP

3136434R91

PUMP, ENGINE OIL

PUMP ASSY., oil, Will work for 3055962R97

1шт.

186273

BOLT,Hex, 5/16" - 18 x 4 1/4", Gr 5

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

1

NSS

NOT SOLD SEPARAT

CASE, oil pump gear, Not serviced separately, Order pump assy.

1шт.

2

NSS

NOT SOLD SEPARAT

COVER ASSY., oil pump, Not serviced separately, Order pump assy.

1шт.

3

NSS

NOT SOLD SEPARAT

COVER ASSY., oil pump front, Not serviced separately, Order pump assy.

1шт.

4

3136454R91

GEAR

ASSY., oil pump drive, Will work for 3055954R11

1шт.

5

3055205R1

RING

distance, Used w/drive gear 3055954R11

1шт.

6

933701R1

RING

V-RING, shaft seeger, Used w/drive gear 3055954R11

1шт.

7

3055952R2

O-RING

2шт.

8

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Used w/drive gear 3055954R11 #6, 5/32" x 5/8", HT

2шт.

9

3132304R2

VALVE

cylinder

1шт.

10

932614R1

LOCK PIN,M10 x 50, Slotted

PIN, .394 x 1.968 slt-spring

2шт.

11

3136081R1

VALVE

piston relief, Replaces 3055202R2

1шт.

12

3136264R1

SPRING

relief valve pressure, Replaces 3059241R1

1шт.

13

710382R3

GASKET,29mm ID x 35mm OD x 1.22mm Thk

RING, packing

1шт.

14

3055958R2

PLUG

closing

1шт.

15

538032R91

PACKAGE, oil pump gear

1шт.

544 tractors having synchromesh transmission w/engine serial no. 010031 and below, 544 tractors having hydrostatic transmission w/engine serial no. 030356 and below and all machines w/engine serial prefix no. 44, 45846 or 478 unitl stock is exhausted, then furnish pkg. 3136450R91

1шт.

15

3136450R91

GEAR-SET

PACKAGE, oil pump gear, All machines except as listed in package 538032R91

1шт.

3132305R92

PACKAGE, REPAIR

PACKAGE, piston relief valve service, Consists of ref. nos. 11, 14 and 16

1шт.
