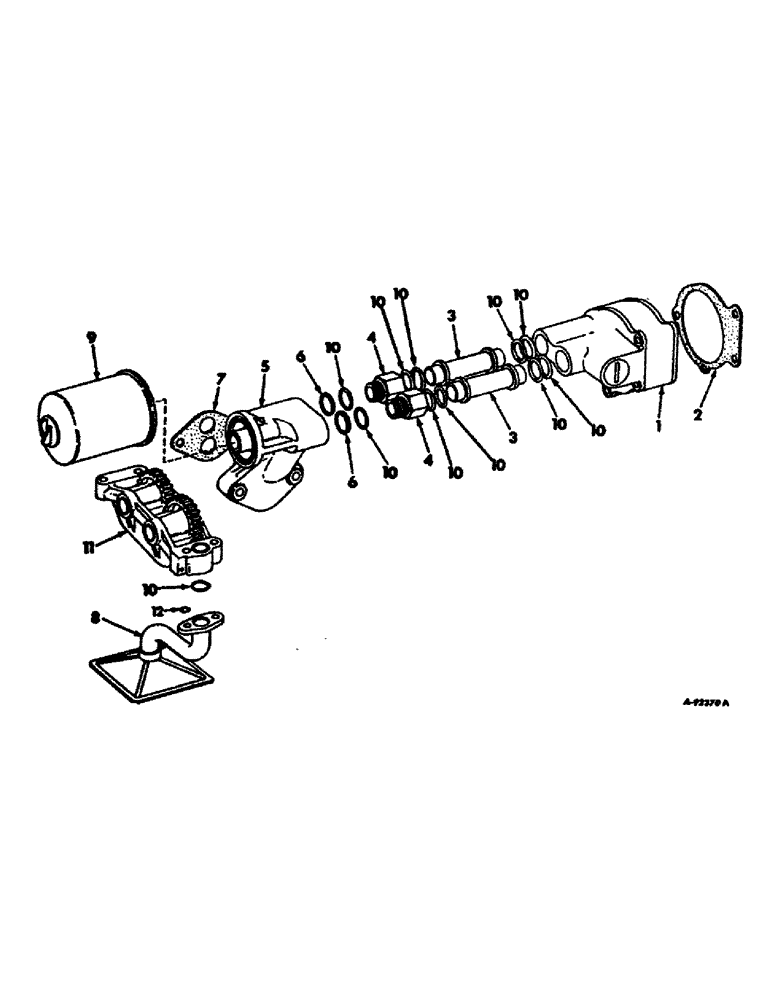

Запчасти Case IH D-239 (D-40) - ENGINE OIL PUMP, FILTER AND RELATED PARTS, 544, 664 AND 2544 TRACTORS

1

PUMP ASSY., oil, For components see list of parts under details of oil pump assy.

1шт.

2

3055961R1

GASKET

oil pump

1шт.

3

3055950R11

PIPE

ASSY., oil pump

2шт.

4

3055949R2

ADAPTER

oil filter socket pipe

2шт.

5

3055948R1

PEDESTAL

SOCKET, oil filter

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

2шт.

3144513R1

SPRING WASHER

DISK, spring, Replaces 933620R1

2шт.

6

933609R1

RING

RING, packing

2шт.

7

3055237R1

GASKET

oil filter socket

1шт.

8

3132787R92

PIPE

ASSY., oil suction

1шт.

24933R1

HEX SOC SCREW,7/16"-14 x 3 3/4"

1шт.

179870

BOLT,Hex, 7/16" - 14 x 3", Gr 5

SCREW, 7/16-14 x 3 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

9

3136046R93

FILTER, ENGINE OIL

FILTER, oil, Will work for 3132183R91 or

1шт.

9

398080R2

ENGINE OIL FILTER

FILTER, oil

1шт.

10

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

Replaces 3055199R1

11шт.

11

BALANCER ASSY., For components see list of parts under crankshaft, flywheel and bearings

1шт.

12

717222R1

O-RING

1шт.
