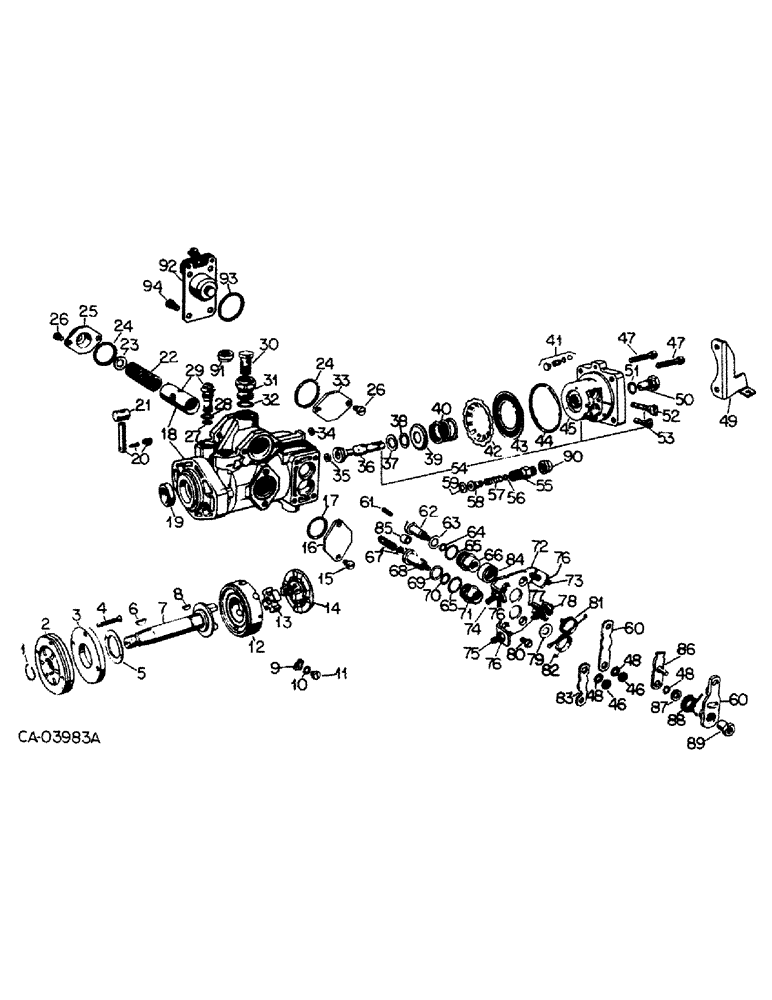

Запчасти Case IH D-239 (D-37) - FUEL INJECTION PUMP

3144221R91

FUEL INJECTION PUMP

PUMP ASSY., fuel injection, Model number EP/VA4/100H 1200 CR12-1, All 664 tractors and 544 and 2544 tractors with hydrostatic transmission w/engine serial no. 030592 and above, Consists of all unmarked parts and those marked unit A

1шт.

To determine the service parts it is necessary to know the Bosch model number and in some cases in addition the manufacturing date. This information is indicated on the Bosch name plate of the injection pump.

1шт.

3144379R91

PUMP, FUEL INJECTION

PUMP ASSY., fuel injection, Model number EP/VA4/100H 1100 CRV3353-1, 544 and 2544 tractors with synchromesh transmission w/engine serial no. 010145 and above, Consists of all unmarked parts and those marked unit B

1шт.

To determine the service parts it is necessary to know the Bosch model number and in some cases in addition the manufacturing date. This information is indicated on the Bosch name plate of the injection pump.

1шт.

3144381R91

PUMP

ASSY., fuel injection, Model number EP/VA4/100H 100 CRV3267-1, Tractors with synchromesh transmission, 574 tractors w/engine serial no. 069908 and above, Consists of all unmarked parts and those marked unit C

1шт.

To determine the service parts it is necessary to know the Bosch model number and in some cases in addition the manufacturing date. This information is indicated on the Bosch name plate of the injection pump.

1шт.

3144496R91

PUMP

ASSY., fuel injection, Model number VA4/10H 1200 CR12-12, All 674 tractors, Consists of all unmarked parts and those marked unit D

1шт.

To determine the service parts it is necessary to know the Bosch model number and in some cases in addition the manufacturing date. This information is indicated on the Bosch name plate of the injection pump.

1шт.

3218002R92

PUMP

ASSY., fuel injection, Model number VA4/10H 1150 CR 69-4, Replaces 3144902R91, 5000/5500 windrowers, Consists of all unmarked parts and those marked unit E

1шт.

To determine the service parts it is necessary to know the Bosch model number and in some cases in addition the manufacturing date. This information is indicated on the Bosch name plate of the injection pump.

1шт.

1

3078474R1

RING

retaining

1шт.

2

3078475R91

PUMP

charge

1шт.

3

3078476R1

RING

charge pump support

1шт.

4

3078477R1

BOLT,CSK

SCREW, retaining support ring

2шт.

5

3078479R1

THRUST WASHER

roller retainer thrust

1шт.

6

3079101R1

WOODRUFF KEY

KEY, drive shaft Woodruff, Replaces 3078371R1

1шт.

7

3078473R1

SHAFT

drive

1шт.

8

3132395R1

KEY

charging pump Woodruff

1шт.

9

3132598R1

INDICATOR

POINTER, timing

1шт.

10

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER, lock

1шт.

11

931326R1

SCREW,Slotted Cheese , M4 x 0.7 x 5mm, Cl 8.8

pan head

1шт.

12

3078478R91

RETAINER

RING ASSY., roller retainer

1шт.

13

3059007R1

DISC

cross type cam face

1шт.

14

3078480R1

CAM

face

1шт.

15

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

window cover

2шт.

16

3078486R1

COVER

timing window

1шт.

17

3078485R1

RING

PACKING RING, window cover

1шт.

18

3078598R91

HOUSING

W/TIMING ADV. PISTON, pump, Units A, B and E

1шт.

18

3078564R91

HOUSING

W/TIMING ADV. PISTON, pump, Units C and D

1шт.

19

3078355R2

OIL SEAL

OIL SEAL, drive shaft

1шт.

20

3078481R1

PIN

automatic advance connecting

1шт.

21

3078482R1

SLIDE

R, advance piston

1шт.

22

3078579R1

SPRING

advance piston, Units A and D

1шт.

22

3078673R1

SPRING

advance piston, Unit B

1шт.

22

3078613R1

SPRING

advance piston, Unit C

1шт.

22

3078573R1

SPRING

advance piston, Unit E

1шт.

23

3078528R1

THRUST WASHER

thrust, .024 in./.6 MM

1шт.

23

3078529R1

THRUST WASHER

thrust, .031 in./.8 MM

1шт.

23

3078530R1

THRUST WASHER

thrust, .039 in./1.0 MM

1шт.

23

3078531R1

THRUST WASHER

thrust, .047 in./1.2 MM

1шт.

23

3078532R1

THRUST WASHER

thrust, .055 in./1.40 MM

1шт.

23

3078533R1

THRUST WASHER

thrust, .118 in./3.00 MM

1шт.

24

3078488R1

RING

O-RING, advance housing

2шт.

25

3078489R1

COVER

PLATE, advance housing right hand

1шт.

26

931585R1

BOLT,M6 x 15mm, Cl 10.9

SCREW, advance housing plate

4шт.

27

3078535R1

O-RING

regulator valve

1шт.

28

3078358R1

O-RING

regulator valve

1шт.

29

3078614R91

VALVE

regulator, Units A, D

1шт.

29

3078534R91

VALVE

regulator, Units B, C and E

1шт.

30

3059086R1

BANJO BOLT

SCREW, inlet union

1шт.

31

3078484R1

VALVE

overflow

1шт.

32

3078483R1

O-RING,2.5mm Thk x 15mm ID

union adapter adjusting housing

1шт.

33

3078486R1

COVER

PLATE, advance housing left hand

1шт.

34

3078487R1

O-RING

O-RING

1шт.

35

3078761R2

WASHER

plunger, .071 in./1.80 MM

1шт.

35

3078763R2

WASHER

plunger, .072 in./1.84 MM

1шт.

35

3078762R2

WASHER, plunger, .074 in./1.88 MM

1шт.

35

3078767R2

WASHER

plunger, .076 in./1.92 MM

1шт.

35

3078769R2

WASHER

plunger, .077 in./1.96 MM

1шт.

35

3078771R2

WASHER

plunger, .078 in./2.00 MM

1шт.

35

3078773R2

WASHER

plunger, .080 in./2.04 MM

1шт.

35

3078775R2

WASHER

plunger, .082 in./2.08 MM

1шт.

35

3078777R2

WASHER

plunger, .083 in./2.12 MM

1шт.

35

3078779R2

WASHER

plunger, .085 in./2.16 MM

1шт.

35

3078781R2

WASHER

plunger, .087 in./2.20 MM

1шт.

35

3078783R2

WASHER

plunger, .088 in./2.24 MM

1шт.

35

3078785R2

WASHER

plunger, .090 in./2.28 MM

1шт.

35

3078787R2

WASHER

plunger, .091 in./2.32 MM

1шт.

35

3078789R2

WASHER

plunger, .093 in./2.36 MM

1шт.

35

3078791R2

WASHER

plunger, .092 in./2.40 MM

1шт.

35

3078793R2

WASHER

plunger, .096 in./2.44 MM

1шт.

35

3078795R2

WASHER

plunger, .098 in./2.38 MM

1шт.

35

3078797R2

WASHER

plunger, .099 in./2.52 MM

1шт.

35

3078799R2

WASHER

plunger, .101 in./2.56 MM

1шт.

35

3078801R2

WASHER

plunger, .102 in./2.60 MM

1шт.

35

3078803R2

WASHER

plunger, .104 in./2.64 MM

1шт.

35

3078805R2

WASHER

plunger, .106 in./2.68 MM

1шт.

35

3078807R2

WASHER

plunger, .107 in./2.72 MM

1шт.

35

3078809R2

WASHER

plunger, .109 in./2.76 MM

1шт.

35

3078811R2

WASHER

plunger, .110 in./2.80 MM

1шт.

35

3078813R2

WASHER

plunger, .112 in./2.84 MM

1шт.

35

3078815R2

WASHER

plunger, .113 in./2.88 MM

1шт.

36

NSS

NOT SOLD SEPARAT

Order ref. no. 54

1шт.

37

3078540R1

WASHER

plunger, .053 in./1.35 MM

1шт.

37

3078541R1

WASHER

plunger, .063 in./1.60 MM

1шт.

37

3078542R1

WASHER

plunger, .073 in./1.85 MM

1шт.

38

3078537R1

WASHER

plunger, .065 in./1.65 MM

1шт.

38

3078571R1

WASHER

plunger, .092 in./2.35 MM

1шт.

39

3078516R1

SEAT

plunger spring

1шт.

40

3078515R1

SPRING

plunger

1шт.

41

3078365R91

SET, relief valve

1шт.

42

3078576R1

SPRING WASHER

spring

1шт.

43

3078578R1

FILTER, FUEL

FILTER

1шт.

44

3078366R1

O-RING

distributor head

1шт.

45

NSS

NOT SOLD SEPARAT

Order ref. no. 54

1шт.

46

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

throttle and control hex.

2шт.

47

3078600R1

SCREW

pump to distributor head

4шт.

48

933987R1

LOCK WASHER,M6

WASHER, throttle and control lock

2шт.

49

3078570R1

BRACKET

injection pump, Units, A, B and E

1шт.

49

3078549R1

SUPPORT

BRACKET, injection pump, Units C and D

1шт.

50

3078514R1

PLUG

distributor head

1шт.

51

3132407R1

O-RING

packing distributor head plug

1шт.

52

NSS

NOT SOLD SEPARAT

Order ref. no. 54

1шт.

53

NSS

NOT SOLD SEPARAT

Order ref. no. 54

1шт.

54

3078760R91

HEAD

W/PLUNGER AND CONTROL PISTON, Unit A

1шт.

54

3078851R91

HEAD W/PLUNGER AND CONTROL PISTON, Unit B

1шт.

54

3078898R91

HEAD

W/PLUNGER AND CONTROL PISTON, Unit C

1шт.

54

3078904R91

HEAD

W/PLUNGER AND CONTROL PISTON, Unit D

1шт.

54

3078599R91

HEAD

W/PLUNGER AND CONTROL PISTON, Unit E

1шт.

55

3059067R2

HYD CONNECTOR

HOLDER, delivery valve

4шт.

56

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

delivery valve

4шт.

57

3132408R1

SPRING

delivery valve

4шт.

58

3136356R1

VALVE

delivery, Unit A

4шт.

58

3078852R1

VALVE

delivery, Unit B

4шт.

58

3136357R1

VALVE

delivery, Unit C

4шт.

58

3078905R1

VALVE

delivery, Unit D

4шт.

58

3132879R1

VALVE

delivery, Unit E

4шт.

59

3079378R1

WASHER

delivery valve, Replaces 3078362R1

4шт.

60

3132590R1

LEVER

throttle or

1шт.

60

3132591R1

LEVER

throttle

1шт.

61

3078555R1

SPRING

throttle

1шт.

62

3078517R1

SHAFT

throttle

1шт.

63

3078519R1

WASHER

throttle shaft

1шт.

64

3078354R1

O-RING,2mm Thk x 6.5mm ID

throttle shaft

1шт.

65

785602R1

O-RING

control plunger and throttle

2шт.

66

3078556R1

BUSHING

throttle shaft

1шт.

67

3078522R91

KIT

SERVICE PACKAGE, control plunger, Unit A & C

1шт.

67

3078563R91

KIT

SERVICE PACKAGE, control plunger, Unit B and C

1шт.

67

3078700R91

KIT

SERVICE PACKAGE, control plunger, Unit D

1шт.

67

3078563R91

KIT

SERVICE PACKAGE, control plunger, Unit E

1шт.

68

3078521R1

SHAFT

control plunger

1шт.

69

3078523R1

WASHER

control plunger shaft

1шт.

70

3078363R1

O-RING

control plunger shaft

1шт.

71

3078524R1

BUSHING

contorl plunger shaft

1шт.

72

3078557R1

PLATE

stop

1шт.

73

3132885R1

BOLT

stop

1шт.

74

3136136R1

SCREW

stop

1шт.

75

3059074R1

SCREW

stop

1шт.

76

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

hex, Stop screw

3шт.

77

3079141R1

NUT

hex, Replaces 3059096R1 & 3079120R1

1шт.

78

3132251R1

STOP LOCK

SCREW, stop

1шт.

79

3059076R1

WASHER

plunger shaft control

1шт.

80

931320R1

SCREW,M6 x 12mm, Cl 8.8

flathead slotted machine stop plate

4шт.

81

3132588R1

SPRING

throttle shaft torsion

1шт.

82

3132589R1

SPRING

control plunger torsion

1шт.

83

3059077R1

LEVER

control plunger or

1шт.

83

3059078R1

LEVER

control plunger

1шт.

84

NOT USED THIS APPLICATION

1шт.

85

NOT USED THIS APPLICATION

1шт.

86

NOT USED THIS APPLICATION

1шт.

87

NOT USED THIS APPLICATION

1шт.

88

NOT USED THIS APPLICATION

1шт.

89

NOT USED THIS APPLICATION

1шт.

90

NOT USED THIS APPLICATION

1шт.

91

NOT USED THIS APPLICATION

1шт.

92

NOT USED THIS APPLICATION

1шт.

93

NOT USED THIS APPLICATION

1шт.

94

NOT USED THIS APPLICATION

1шт.

3079044R1

SCREW

PLUG, closing, Replaces 3079533R1

1шт.

3078526R91

GASKET KIT

PACKAGE, fuel injection pump gasket

1шт.
