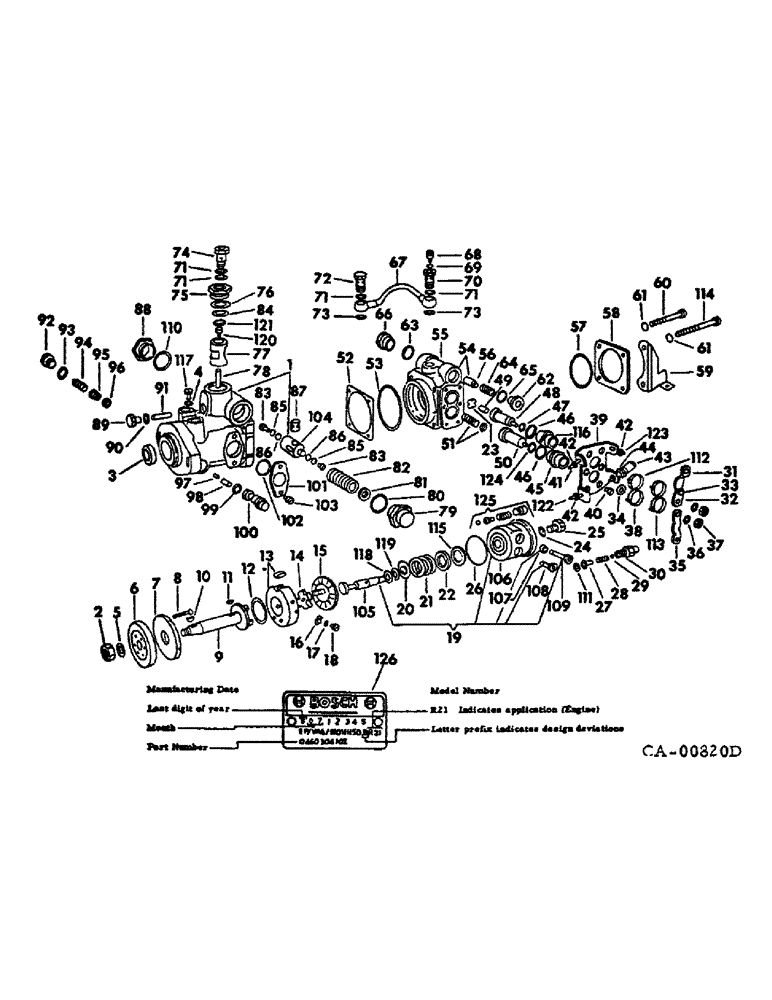

Запчасти Case IH D-239 (D-33) - FUEL INJECTION PUMP

3132168R93

PUMP

ASSY., fuel injection, Model no. EP/VA4/100H 1100 AR12-2, 544 and 2544 tractors with synchromesh transmission w/engine serial no. 010144 and below, Notes A and B, Consists of all unmarked parts and those marked unit A

1шт.

3132168R93

PUMP

ASSY., fuel injection, Model no. EP/VA4/100H 1100 BR12-2, 544 and 2544 tractors with synchromesh transmission w/engine serial no. 010144 and below, Note A, Consists of all unmarked parts and those marked unit B

1шт.

3132169R93

PUMP

ASSY., fuel injection, Model no. EP/VA4/100 1200 AR-12-1, 544 and 2544 tractors with hydrostatic transmission with engine serial no. 030591 & below, Note A and C, Consists of all unmarked parts and those marked unit C

1шт.

3132169R93

PUMP

ASSY., fuel injection, Model no. EP/VA4/100 1200 BR12-1, 544 and 2544 tractors with hydrostatic transmission with engine serial no. 030591 & below, Note A, Consists of all unmarked parts and those marked unit D

1шт.

3136323R92

FUEL INJECTION PUMP

PUMP ASSY., fuel injection, Model no. EP/VA4/100H 1100 BR12-6

1шт.

Tractors w/synchromesh transmission, 574 tractors with engine serial no. 069907 & below, 3500A w/engine serial no. 180144 and below, Note A, Consists of all unmarked parts and those marked unit E

1шт.

1

3136259R91

HOUSING

W/TIMING ADV. PISTON, pump, Replaces 3132279R1 and 3059000R91

1шт.

2

933981R1

NUT,M12 x 1.75, Cl 5

Drive shaft M12 x 1.75, Cl 5

1шт.

3

3078355R2

OIL SEAL

OIL SEAL, drive shaft

1шт.

4

NSS

NOT SOLD SEPARAT

Order 3059093R91

1шт.

5

933996R1

LOCK WASHER,M12

WASHER, 1/2 med lock

1шт.

6

3059003R91

PUMP

ROTOR ASSY., charging pump

1шт.

7

3059004R1

SUPPORT

RING, retainer support

1шт.

8

3132364R1

SCREW

retainer support ring

4шт.

9

3059001R1

SHAFT

drive

1шт.

10

3079101R1

WOODRUFF KEY

KEY, drive shaft, Replaces 3054301R1 & 3078371R1

1шт.

11

3132395R1

KEY

charging pump Woodruff

1шт.

12

3059006R1

WASHER

drive shaft thrust

1шт.

13

3078346R91

RETAINER

RING ASSY., roller retainer, Replaces 3132959R91 and 3059005R91

1шт.

14

3059007R1

DISC

COUPLING, drive shaft flexible

1шт.

15

3059008R2

CAM

face

1шт.

16

3132598R1

INDICATOR

POINTER, timing, Will work for 3059090R1

1шт.

17

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER, timing pointer

1шт.

18

931326R1

SCREW,Slotted Cheese , M4 x 0.7 x 5mm, Cl 8.8

timing pointer

1шт.

19

3078808R91

HEAD

W/PLUNGER AND CONTROL PISTON, Replaces 3132963R1, Units A, B, C, D

1шт.

19

3078816R91

DISTRIBUTOR HEAD

HEAD W/PLUNGER AND CONTROL PISTON, Replaces 3136089R91, Unit E

1шт.

20

3132262R1

CUP

SEAT, plunger return spring front, .197 in./5.00 MM, Units A and C

1шт.

20

3132263R1

CUP

SEAT, .205 in./5.20 MM, Units A and C

1шт.

20

3132264R2

WASHER

SEAT, .213 in./5.40 MM, Units A and C

1шт.

20

3132265R1

WASHER

SEAT, .220 in./5.60 MM, Units A and C

1шт.

20

3136096R1

SEAT

.228 in./5.80 MM, Replaces 3132266R1, Units A and C

1шт.

20

3132267R2

SEAT, .236 in./6.00 MM, Units A and C, No longer available

1шт.

20

3132236R1

SEAT, .244 in./6.20 MM, Units A and C

1шт.

20

3136092R1

SEAT

plunger return spring front, .197 in./5.00 MM, Units B, D, E

1шт.

20

3136093R1

SEAT

.205 in./5.20 MM, Units B, D, E

1шт.

20

3136094R1

CUP

SEAT, .213 in./5.40 MM, Units B, D, E

1шт.

20

3136095R1

SEAT

.220 in./5.60 MM, Units B, D, E

1шт.

20

3136096R1

SEAT

.228 in./5.80 MM, Units B, D, E

1шт.

20

3136097R1

SEAT

.236 in./6.00 MM, Units B, D, E

1шт.

20

3136394R1

SEAT

.244 in./6.20 MM, Units B, D, E

1шт.

21

3132257R1

SPRING

plunger return

1шт.

22

3132379R1

NUT

SEAT, plunger return spring rear, Units A and C

1шт.

22

3136098R1

SEAT

plunger return spring rear, Units B, D, E

1шт.

23

3132584R1

DISC

1шт.

24

3132407R1

O-RING

O-RING, pump plunger plug

1шт.

25

3059063R2

PLUG

distributor head

1шт.

26

3078361R1

O-RING

RING, distributor head packing

1шт.

27

3136357R1

VALVE

ASSY., delivery, Units A, B and E

4шт.

27

3136356R1

VALVE

ASSY., delivery, Units C, D

4шт.

28

3132408R1

SPRING

delivery valve

4шт.

29

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

delivery valve spring

4шт.

30

3059067R2

HYD CONNECTOR

HOLDER, delivery valve

4шт.

31

3132590R1

LEVER

speed control or

1шт.

31

3132591R1

LEVER

speed control

1шт.

32

NOT USED IN THIS APPLICATION

1шт.

33

NOT USED IN THIS APPLICATION

1шт.

34

3059076R1

WASHER

SPACER, shut-off control

1шт.

35

3059077R1

LEVER

shut-off control or

1шт.

35

3059078R1

LEVER

shut-off control

1шт.

36

933987R1

LOCK WASHER,M6

WASHER, 1/4 med lock

2шт.

37

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

hex., Throttle lever

2шт.

38

3132589R1

SPRING

speed control torsion

1шт.

39

3136110R1

PLATE

stop, Will work for 3059073R1

1шт.

40

931320R1

SCREW,M6 x 12mm, Cl 8.8

stop plate

6шт.

41

3132885R1

BOLT

stop plate adjusting, Units A and C

1шт.

41

3136136R1

SCREW

stop plate adjusting, Units B, D, E

1шт.

42

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

stop plate adj. screw

3шт.

43

3132251R1

STOP LOCK

STOP, shut-off control plunger

1шт.

44

3079120R1

NUT

shut-off control plunger stop, Replaces 3059096R1

1шт.

45

3059072R1

BUSHING

control shaft

1шт.

46

785602R1

O-RING

control plunger and throttle shaft

2шт.

47

3078354R1

O-RING,2mm Thk x 6.5mm ID

throttle shaft

1шт.

48

3132583R1

SHAFT

ASSY., speed control

1шт.

49

3132256R1

VALVE SPRING

SPRING, speed control shaft

1шт.

50

3132260R2

SHAFT

ASSY., shut-off control plunger

1шт.

51

3132586R1

SPRING

SERVICE PACKAGE, control plunger

1шт.

52

3132377R1

SHIM

pump & intermediate housing, .009 in./.23 MM

1шт.

52

3132378R1

SHIM

.011 in./.28 MM

1шт.

52

3132040R1

SHIM, .008 in./.20 MM

1шт.

52

3132041R1

SHIM, .010 in./.25 MM

1шт.

52

3132042R1

SHIM

.012 in./.30 MM

1шт.

52

3132043R1

SHIM, .020 in./.51 MM

1шт.

52

3132044R1

SHIM, .024 in./.61 MM

1шт.

52

3132045R1

SHIM, .039 in./1.00 MM

1шт.

53

3078360R1

RING

PACKING RING, housing

1шт.

54

3132402R1

HOUSING

W/ACCUMULATOR PISTON

1шт.

55

NSS

NOT SOLD SEPARAT

HOUSING, intermediate, Not serviced separately, Order housing w/accumulator piston 3132402R1

1шт.

56

NSS

NOT SOLD SEPARAT

PISTON, accumulator, Not serviced separately, Order housing w/accumulator piston 3132402R1

1шт.

57

3078364R1

O-RING

PACKING RING, interm housing plate

1шт.

58

3059083R1

FLANGE, intermediate housing

1шт.

59

3078570R1

BRACKET

injection pump, Units A and B

1шт.

59

3132247R1

SUPPORT

BRACKET, injection pump, Units C and D

1шт.

59

3078549R1

SUPPORT

BRACKET, injection pump, Unit E

1шт.

60

931324R1

HEX SOC SCREW,M6 x 70mm, Cl 10.9

intermediate housing mounting

2шт.

61

933987R1

LOCK WASHER,M6

WASHER, 1/4 med lock

4шт.

62

3136107R1

PLUG

accumulator spring

1шт.

63

785602R1

O-RING

plug accumulator piston

1шт.

64

3132277R1

SPRING

accumulator piston

1шт.

65

785602R1

O-RING

plug accumulator piston

1шт.

66

3059052R1

PLUG

accumulator piston

1шт.

67

3059085R91

TUBE

fuel supply

1шт.

68

3132383R1

SCREW

vent

1шт.

69

933696R1

SEALING RING,M6 x 10 x 1

RING - packing, 6 x 10 mm, vent screw, intermediate housing

1шт.

70

3136149R1

SCREW

inlet union

1шт.

71

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

Packing M12 x 18 x 1.5

3шт.

72

3132880R1

SCREW

housing inlet union, Unit A and C, Serial Range: up-70099999

1шт.

72

3059086R1

BANJO BOLT

SCREW, housing inlet union, Unit A and C 71000000 and since and units B, D, E

1шт.

73

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

Packing M12 x 18 x 1.5

2шт.

74

3132412R1

VALVE

overflow

1шт.

75

3059014R1

UNION

adapter

1шт.

76

3078356R1

O-RING

union adapter adjusting housing

1шт.

77

3132400R1

BOLT

PIN, adjusting automatic advance, Units A, B, C, D

1шт.

77

3132960R1

PIN

adjusting automatic advance, Unit E

1шт.

78

3059010R1

PIN

timing adj, connecting short

1шт.

79

3059021R1

PLUG

advance piston spring, Units A and C w/out letter suffix

1шт.

79

3136087R1

PLUG

advance piston spring, Units A and C w/letter suffix X and units B, D

1шт.

79

3136131R1

PLUG

advance piston spring, Unit E

1шт.

80

3078357R1

O-RING

advance housing plug

1шт.

81

3059023R1

SHIM

advance piston spring, .016 in./.40 MM, Units A and C w/o letter suffix

1шт.

81

3059024R1

SHIM

.012 in./.30 MM, Units A and C w/out letter suffix

1шт.

81

3136111R1

WASHER

SHIM, .039 in./1.00 MM, Units A and C w/suffix X and units B, D, E

1шт.

81

790783R1

WASHER

SHIM, .020 in./.51 MM, Units A and C w/suffix X and units B, D, E

1шт.

81

3078460R1

SHIM

advance piston spring, Units A and C w/suffix X and units B, D, E

1шт.

82

3059022R1

SPRING, advance piston, Units A and C w/out letter suffix

1шт.

82

3136085R1

SPRING

advance piston, Units A and C w/suffix X and units B, D, E

1шт.

83

931322R1

SCREW,M5 x 8mm, Cl 8.8

advance piston stop, Units A and C

2шт.

84

933845R1

RING,M20, Int

WASHER, rotating member lock, Units A and C w/no. 80100000 and above and units B, D, E

1шт.

85

933986R1

LOCK WASHER,M5

No. 12 med, Units A and C M5

2шт.

86

3132290R91

PACKAGE

shim service, Units A and C, Consists of

1шт.

3059016R1

SHIM

.008 in./.02 MM

2шт.

3059017R1

SHIM, .012 in./.30 MM

2шт.

3059018R1

SHIM

.020 in./.50 MM

2шт.

3059019R1

SHIM

.039 in./1.00 MM

2шт.

87

3132259R1

SLIDE

BUSHING, advance piston connecting

1шт.

88

3059020R1

PLUG

advance piston

1шт.

89

3059015R1

PLUG

advance linkage, Units A and C, Serial Range: up-71299999

1шт.

89

3132578R1

PLUG

advance linkage, Units A and C 80100000 and since and units B, D, E

1шт.

90

933087R2

SEALING RING,10mm ID x 13.5mm OD x 1mm Thk

- Packing, Plug advance housing M10 x 13.5 x 1

1шт.

91

3132925R1

PIN

timing adv. connecting long, Units A and C, Serial Range: up-71299999

1шт.

91

3132576R1

PIN

timing adv. connecting long, Units A and C 80100000 and since and unit B, D

1шт.

91

3132961R1

PIN

timing adv. connecting long, Unit E

1шт.

92

3059038R1

PLUG

regulator valve spring

1шт.

93

3078358R1

O-RING

carrier and plug regulator valve

1шт.

94

3132280R2

SPRING

regulator valve

1шт.

95

3132246R1

STOP

regulator piston

1шт.

96

3078359R1

O-RING

bushing regulator valve

1шт.

97

3059026R1

PISTON, regulator valve, .348 in./8.84 MM, No longer available

1шт.

97

3059027R1

PISTON, regulator valve, .350 in./8.90 MM

1шт.

97

3059028R1

PISTON, regulator valve, .352 in./8.94 MM

1шт.

97

3059029R1

PISTON, regulator valve, .354 in./9.00 MM

1шт.

97

3059030R1

PISTON, regulator valve, .356 in./9.04 MM

1шт.

97

3059031R1

PISTON, regulator valve, .358 in./9.09 MM

1шт.

97

3059032R1

PISTON, regulator valve, .360 in./9.14 MM

1шт.

97

3059033R1

PISTON, regulator valve, .362 in./9.19 MM

1шт.

97

3059034R1

PISTON

regulator valve, .364 in./9.24 MM

1шт.

97

3132366R1

PISTON

regulator valve, .342 in./8.69 MM

1шт.

97

3132367R1

PISTON

regulator valve, .344 in./8.73 MM

1шт.

97

3132368R1

PISTON

regulator valve, .347 in./8.81 MM

1шт.

97

3132369R1

PISTON

regulator valve, .366 in./9.30 MM

1шт.

97

3132370R1

PISTON, regulator valve, .368 in./9.35 MM

1шт.

97

3132371R1

PISTON

regulator valve, .370 in./9.40 MM

1шт.

97

3132375R1

PISTON

regulator valve, .378 in./9.60 MM

1шт.

98

3132255R1

SPRING

regulator piston

1шт.

99

3078358R1

O-RING

carrier and plug regulator valve

1шт.

100

3059099R91

VALVE

CARRIER, regulator valve

1шт.

101

3059091R1

PLATE

COVER, timing window

1шт.

102

3054854R1

O-RING,2mm Thk x 20mm ID, 70 Duro

timing window

1шт.

103

931327R1

BOLT,M6 x 10mm, Cl 8.8

SCREW, timing window cover

2шт.

104

NSS

NOT SOLD SEPARAT

Order housing w/timing advance piston pump

1шт.

105

NSS

NOT SOLD SEPARAT

Order ref. no. 19

1шт.

106

NSS

NOT SOLD SEPARAT

Order ref. no. 19

1шт.

107

NSS

NOT SOLD SEPARAT

Order ref. no. 19

1шт.

108

NSS

NOT SOLD SEPARAT

Order ref. no. 19

1шт.

109

NSS

NOT SOLD SEPARAT

Order ref. no. 19

1шт.

110

3078357R1

O-RING

plug advance housing

1шт.

111

3079378R1

WASHER

delivery valve, Replaces 3078362R1

4шт.

112

3132588R1

SPRING

speed control torsion

1шт.

113

NOT USED IN THIS APPLICATION

1шт.

114

931325R1

HEX SOC SCREW,M6 x 75mm, Cl 10.9

intermediate housing mounting

2шт.

115

NOT USED IN THIS APPLICATION

1шт.

116

3132587R1

BUSHING

control plunger shaft

1шт.

117

NOT USED IN THIS APPLICATION

1шт.

118

3132387R1

SHIM

pump plunger, Units A and C

1шт.

118

3136090R1

SPACER

SHIM, pump plunger, Units B, D, E

1шт.

119

3136091R2

WASHER

SHIM, pump plunger

1шт.

120

3132883R1

PLUG

PIN, timing advance rotating member, Units A and C w/no. 80100000 and above and units B, D, E

1шт.

121

3132884R1

WASHER

timing advance rotating member, Units A and C w/no. 80100000 and above and units B, D, E

1шт.

122

3059074R1

SCREW

stop plate adjusting

1шт.

123

3132885R1

BOLT

stop plate adjusting

1шт.

124

3078363R1

O-RING

control plunger shaft

1шт.

125

3078365R91

SET, relief valve

1шт.

126

3136147R1

NAMEPLATE

1шт.

3059093R91

SEAL

SET, gasket external, Consists of ref. nos. 4, 24, 63, 65, 69, 71, 73, 76, 80, 90, 93, 99, 102, 110 and 111

1шт.

3059094R93

GASKET KIT

SET, gasket internal, Consists of ref. nos. 26, 47, 53, 96 and 124

1шт.
