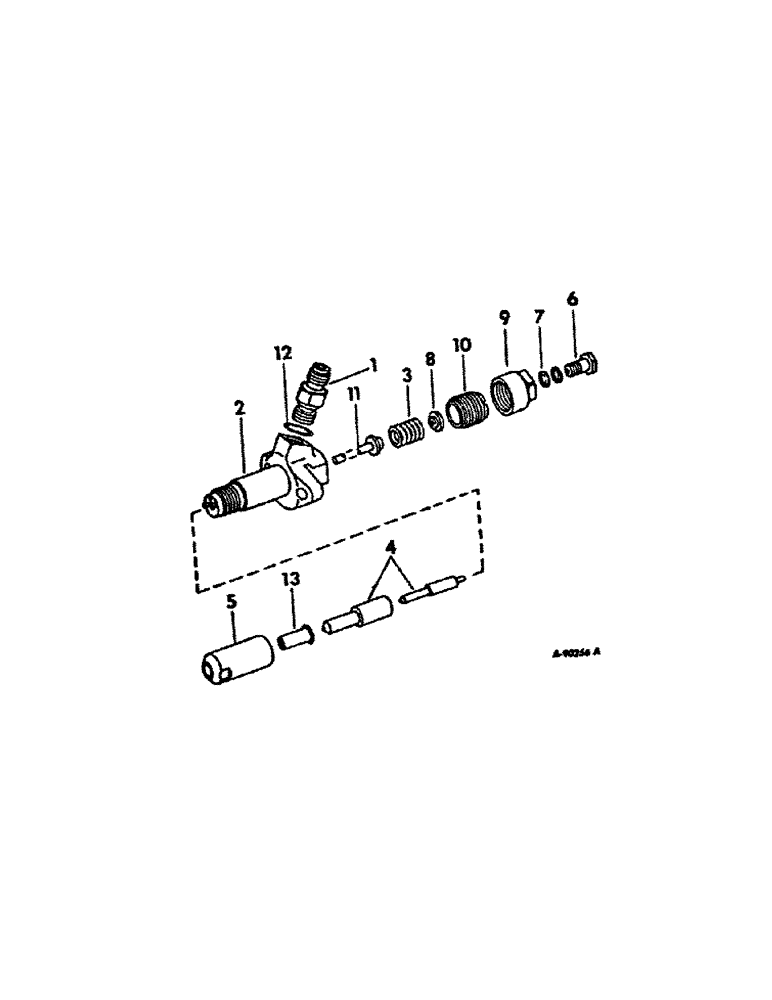

Запчасти Case IH D-239 (D-32) - INJECTION NOZZLE, ALL MACHINES EXCEPT 5000 THRU 5500 WINDROWERS

3055423R93

HOLDER

HOLDER ASSY., injection nozzle

4шт.

735253C91

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

4шт.

1934195C1

CORE-FUEL INJECTOR

Return Part Number, Injection Nozzle

4шт.

3055298R92

NOZZLE HOLDER

HOLDER, nozzle, Part of 3055423R93, Less 3055428R92

4шт.

1

3056940R91

UNION

CONNECTION ASSY., fuel inlet

1шт.

2

NSS

NOT SOLD SEPARAT

BODY, injection nozzle holder, Not serviced separately

1шт.

3

759844R1

SPRING

SPRING

1шт.

4

3055428R92

FUEL SYSTEM INJECTOR

NOZZLE, injection

1шт.

5

3056945R1

NUT

NUT, nozzle cap

1шт.

6

3132999R1

HOLLOW SCREW

SCREW, hollow

1шт.

7

710673R2

SEALING WASHER,8mm ID x 11.5mm OD x 1mm Thk

RING, packing

1шт.

8

787049R1

CUP

SEAT, spring

1шт.

9

3056943R1

CROWN NUT

NUT, nozzle holder cap

1шт.

10

3132998R1

SCREW

CAP, spring

1шт.

11

3056939R91

SPINDLE

SPINDLE W/GUIDE

1шт.

12

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

WASHER, fuel inlet connection

1шт.

13

NOT USED IN THIS APPLICATION

1шт.
