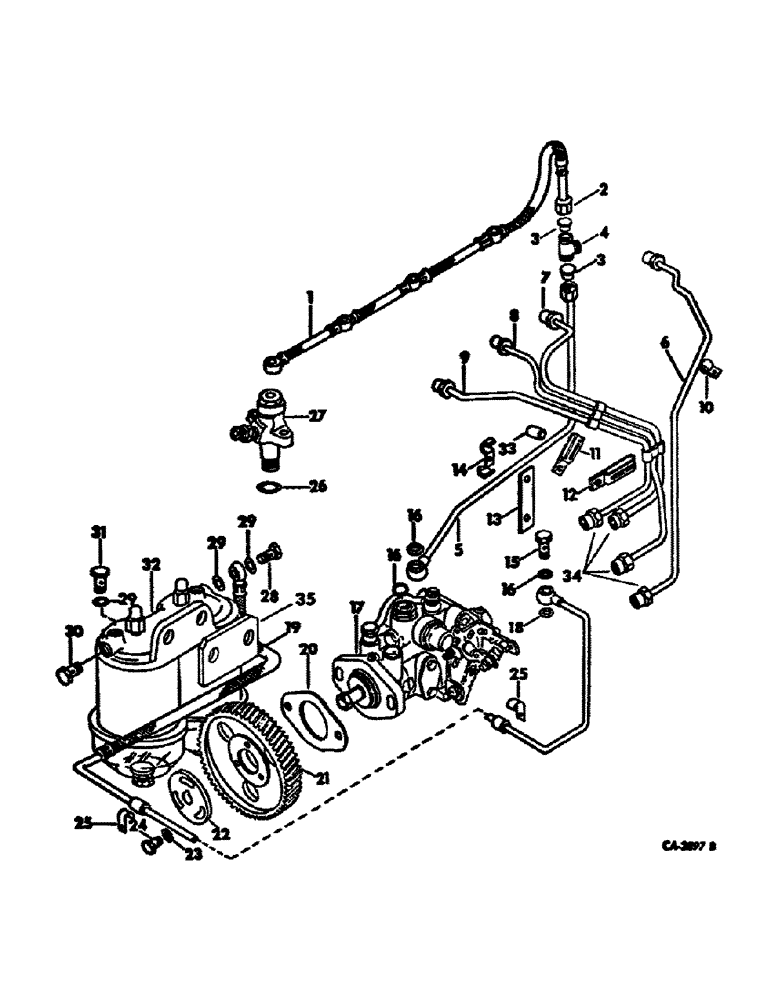

Запчасти Case IH D-239 (D-30) - FUEL INJECTION PUMP AND CONNECTIONS, 674 TRACTORS, 574 TRACS WITH SYNCHROMESH GEAR DRIVEN TRANS.

1

3055606R91

LINE

leak, 574 and 674 tractors, 8MM Banjo Bolt and Washer - distance center to center of ring connectors is 125 mm

1шт.

1

3218124R1

HOSE

LINE, leak, 5000/5500 windrowers and 574-674 Tractor 6MM Banjo Bolt and Washer, distance center to center of ring connectors is 135 mm

1шт.

3218130R1

BANJO BOLT,Hex, M6 x 133.02mm

inlet union

4шт.

933696R1

SEALING RING,M6 x 10 x 1

RING, sealing, 6 x 10 mm, 5000/5500 windrowers

8шт.

2

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT, coupling

2шт.

3

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

compression

2шт.

4

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

special tee

1шт.

5

3144382R1

TUBE ASSY.

LINE, overflow, 574 and 674 tractors

1шт.

5

3144214R91

LINE

overflow, 5000/5500 windrowers

1шт.

6

3144219R91

TUBE

PIPE ASSY., injection no. 4, 574 and 674 tractors

1шт.

If 574 injector line diesel nut connects to top of injector, order P/N 3218157R1. See 684 tractor parts book.

1шт.

6

3218152R1

INJECTION PIPE

PIPE ASSY., injection no. 4, 5000/5500 windrowers

1шт.

7

3144217R91

TUBE

PIPE ASSY., injection no. 3, 574 and 674 tractors

1шт.

If 574 injector line diesel nut connects to top of injector, order P/N 3218156R1. See 684 tractor parts book.

1шт.

7

3218151R1

INJECTION PIPE

PIPE ASSY., injection no. 3, 5000/5500 windrowers

1шт.

8

3144215R91

TUBE

PIPE ASSY., injection no. 2, 574 and 674 tractors

1шт.

If 574 injector line diesel nut connects to top of injector, order P/N 3218155R1. See 684 tractor parts book.

1шт.

8

3218150R1

INJECTION PIPE

PIPE ASSY., injection no. 2, 5000/5500 windrowers

1шт.

9

3144237R91

TUBE

PIPE ASSY., injection no. 1, 574 and 674 tractors

1шт.

If 574 injector line diesel nut connects to top of injector, order P/N 3218154R1. See 684 tractor parts book.

1шт.

9

3218149R1

INJECTION PIPE

PIPE ASSY., injection no. 1, 5000/5500 windrowers

1шт.

10

3132767R1

CLAMP

pipe, 574 and 674 tractors

1шт.

10

3132770R1

COLLAR

CLAMP, pipe or

1шт.

10

3218241R1

CLAMP

pipe, 5000/5500 windrowers, Used to clamp injection pipes for no. 3 and no. 4 cylinders

1шт.

11

3132766R1

CLAMP

pipe, 574 and 674 tractors

1шт.

11

3132770R1

COLLAR

CLAMP, pipe or

1шт.

11

3218241R1

CLAMP

pipe, 5000/5500 windrowers, Used to clamp injection pipes for no. 1 and no. 2 cylinders

1шт.

12

3132768R1

CLAMP

pipe or

1шт.

12

3218243R1

CLAMP

pipe

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

clamp

3шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

screw clamp, 5000/5500 windrowers

3шт.

13

3132174R1

LINK

fuel line fixing, 574 and 674 tractors

2шт.

13

3055458R1

LARGE PLATE

LINK, fuel line fixing, 5000/5500 windrowers

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

3055386R1

CLAMP

CLIP, fuel line, 1 used on windrowers

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW, hollow

1шт.

16

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

Packing M12 x 15.5 x 1.5

3шт.

17

PUMP ASSY., fuel injection, For components see list of parts under details of fuel injection pump

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

.335 x .748 x .098

2шт.

933981R1

NUT,M12 x 1.75, Cl 5

Drive shaft M12 x 1.75, Cl 5

1шт.

933834R1

LOCK WASHER,M12

WASHER, spring lock

1шт.

18

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

Will work for 3055390R1 M12 x 18 x 1.5

1шт.

19

3136077R2

FUEL HOSE

LINE, fuel filter to injection pump, 574 and 674 tractors

1шт.

19

3132324R1

HOSE,8mm ID x 275mm L

LINE, fuel filter to injection pump, 5000/5500 windrowers

1шт.

20

3055384R1

GASKET

fuel injection pump

1шт.

21

3056885R3

PINION

GEAR, injection pump, 66 teeth, 574 and 674 tractors

1шт.

21

3055066R3

GEAR

injection pump, 66 teeth, 5000/5500 windrowers

1шт.

22

3055067R2

HUB

injection pump gear

1шт.

23

30183R1

WASHER,M8 x 21.5 x 2.5, HT

8.8 x 21 x 2.5 MM phc

3шт.

24

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 x 3/4 phc type 8

3шт.

25

3132052R1

CLIP

fuel line

2шт.

26

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

injection nozzle sealing

4шт.

27

HOLDER ASSY., injection nozzle, For components see list of parts under details of injection nozzle

4шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex.

8шт.

28

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW, hollow

2шт.

29

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

4шт.

30

712616R1

PLUG,Hex, M14 x 1.5

Filler Hex, M14 x 1.5

1шт.

31

3056600R1

ADAPTER

1шт.

32

FILTER, two stage fuel, For components see list of parts under details of fuel filters

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 2-7/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3218003R1

SUPPORT

FUEL FILTER

1шт.

NLS

NO LONGER SERVICED

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Disc M10.2 ID x 20 OD x 1.1 Thk

2шт.

3059289R1

PLATE

thrust

1шт.

33

3055480R1

SPACER

PIPE

1шт.

34

3144238R91

INJECTION PIPE

PACKAGE, injection pipes, Not used on windrowers

1шт.

35

3059289R1

PLATE

thrust, 5000/5500 windrowers

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3218491R1

HOSE

fuel inlet from tank, Replaces 3144655R1, 5000/5500 windrowers only

1шт.
