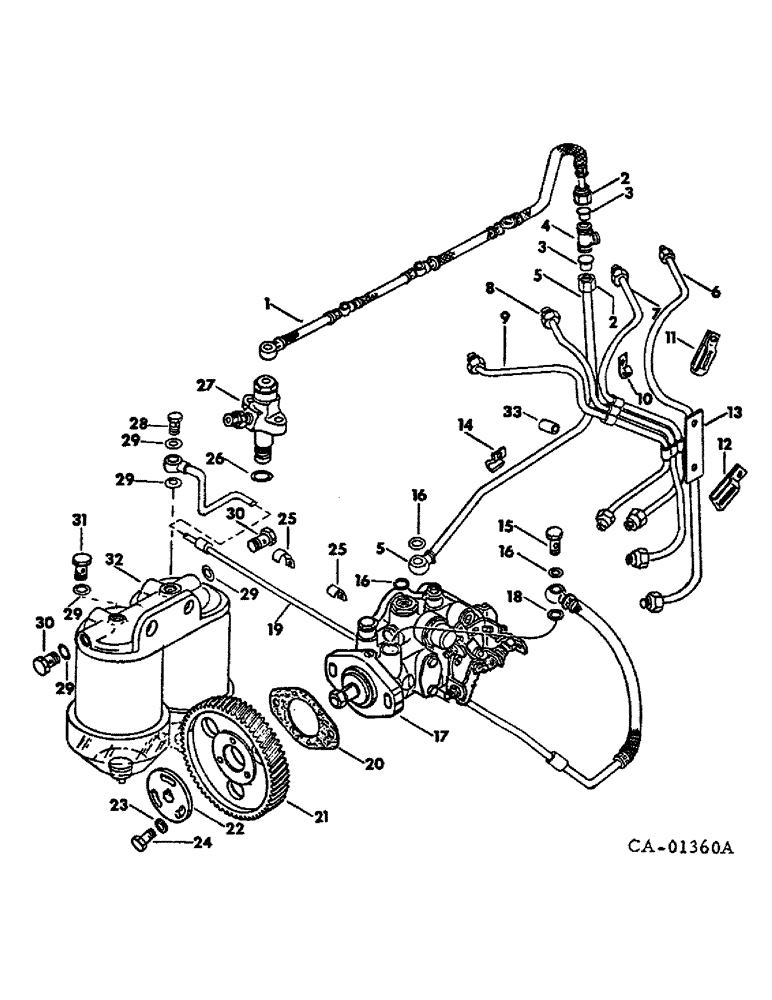

Запчасти Case IH D-239 (D-28) - FUEL INJ. PUMP & CONNECTIONS, 574 TRACS. W/ SYNCHROMESH GEAR DRIVEN TRANS. W/ ENG.S/N 069907 & BELOW

1

3055606R91

LINE

leak

1шт.

The washers used on this line are 710673R2.

1шт.

2

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT, coupling

2шт.

3

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

compression

2шт.

4

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

special tee

1шт.

5

3138685R1

PIPE

LINE, overflow

1шт.

6

3132167R11

PIPE

ASSY., injection no. 4

1шт.

7

3132166R11

PIPE

ASSY., injection no. 3

1шт.

8

3132165R11

PIPE

ASSY., injection no. 2

1шт.

9

3132164R11

PIPE

ASSY., injection no. 1

1шт.

10

3132767R1

CLAMP

pipe

1шт.

11

3132766R1

CLAMP

pipe

1шт.

12

3132768R1

CLAMP

pipe or

1шт.

12

3218243R1

CLAMP

pipe

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

13

3132174R1

LINK

fuel line fixing

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

3059647R1

CLAMP

CLIP, fuel line

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW, hollow

1шт.

16

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

Packing M12 x 15.5 x 1.5

3шт.

17

PUMP ASSY., fuel injection, For components see list of parts under details of fuel injection pump

1шт.

18

3055390R1

RING

packing

1шт.

19

3136077R2

FUEL HOSE

LINE, filter injection pump fuel

1шт.

20

3055384R1

GASKET

fuel injection pump

1шт.

21

3056885R3

PINION

GEAR, injection pump, 66 teeth

1шт.

22

3055067R2

HUB

injection pump gear

1шт.

23

30183R1

WASHER,M8 x 21.5 x 2.5, HT

8.8 x 21 x 2.5 MM phc

3шт.

24

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 x 3/4 phc type 8

3шт.

25

3132052R1

CLIP

fuel line

2шт.

26

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

injection nozzle sealing

4шт.

27

HOLDER ASSY., injection nozzle, For components see list of parts under details of injection nozzle

4шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex.

8шт.

28

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW, hollow

1шт.

29

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

5шт.

30

712616R1

PLUG,Hex, M14 x 1.5

Filler Hex, M14 x 1.5

2шт.

31

3056600R1

ADAPTER

1шт.

32

3132461R91

FILTER

two stage fuel, For components see list of parts under details of fuel filters

1шт.

33

3055480R1

SPACER

PIPE

1шт.
