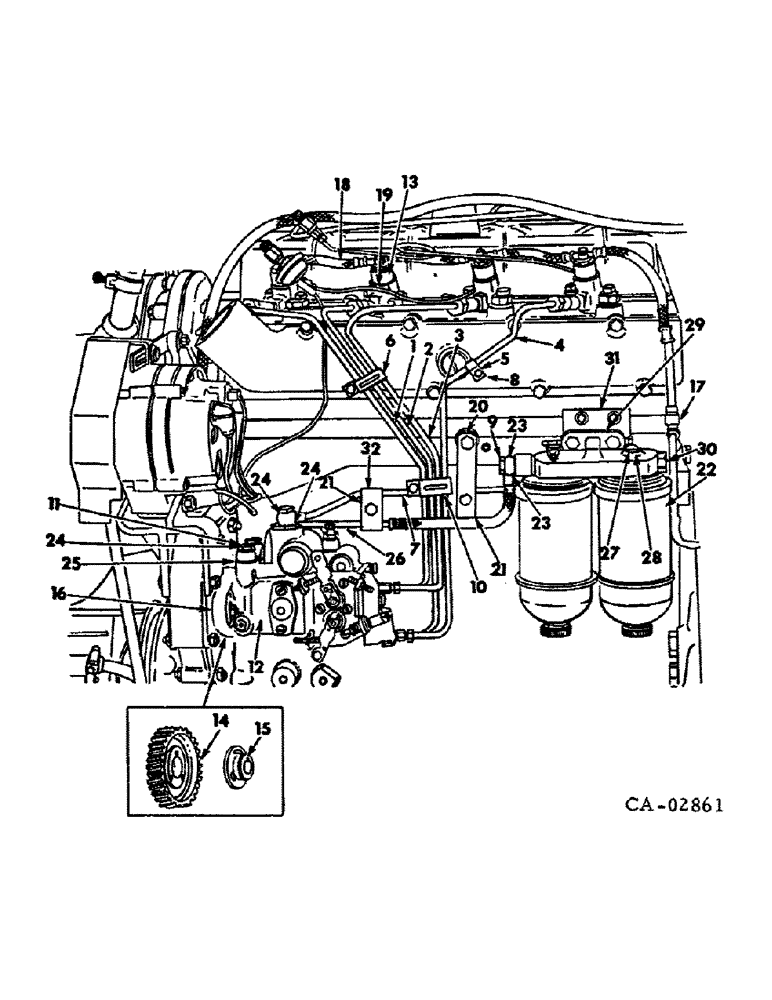

Запчасти Case IH D-239 (D-26) - FUEL INJECTION PUMP AND CONNECTIONS

1

3144237R91

TUBE

PIPE ASSY., injection no. 1

1шт.

2

3144215R91

TUBE

PIPE ASSY., injection no. 2

1шт.

3

3144217R91

TUBE

PIPE ASSY., injection no. 3

1шт.

4

3144219R91

TUBE

PIPE ASSY., injection no. 4

1шт.

5

3055480R1

SPACER

pipe clamp

1шт.

6

3132766R1

CLAMP

pipe

1шт.

7

3144214R91

LINE

overflow

1шт.

8

3132770R1

COLLAR

CLAMP, pipe, Replaces 3132767R1 or

1шт.

8

3132241R1

VALVE

CLAMP, pipe

1шт.

9

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW, hollow

1шт.

10

3132768R1

CLAMP

pipe or

1шт.

10

3218243R1

CLAMP

pipe

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

11

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW, hollow

1шт.

12

PUMP ASSY., fuel injection, For components see list of parts under details of fuel injection pump

1шт.

933981R1

NUT,M12 x 1.75, Cl 5

Drive shaft M12 x 1.75, Cl 5

1шт.

933834R1

LOCK WASHER,M12

WASHER, spring lock

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

.335 x .748 x .098

2шт.

13

HOLDER ASSY., injection nozzle, For components see list of parts under details of injection nozzle

4шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex.

8шт.

14

3056885R3

PINION

GEAR, injection pump, 66 teeth

1шт.

15

3055067R2

HUB

injection pump gear

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 x 3/4 phc type 8

3шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

8.8 x 21 x 2.5 MM phc

3шт.

16

3055384R1

GASKET

fuel injection pump

1шт.

17

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

special tee

1шт.

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT, coupling

2шт.

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

compression

2шт.

18

3055606R91

LINE

leak

1шт.

19

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

injection nozzle sealing

4шт.

20

3132174R1

LINK

fuel line fixing

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

21

3055386R1

CLAMP

CLIP, fuel line

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

22

3144227R91

FILTER

two stage fuel, For components see list of parts under details of fuel filters

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Disc M10.2 ID x 20 OD x 1.1 Thk

2шт.

23

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

2шт.

24

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

Packing M12 x 15.5 x 1.5

3шт.

25

3055390R1

RING

packing

1шт.

26

3144226R1

LINE

filter injection pump fuel

1шт.

27

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

1шт.

28

3056600R1

ADAPTER

1шт.

29

3059289R1

PLATE

thrust

1шт.

30

712616R1

PLUG,Hex, M14 x 1.5

Closing Hex, M14 x 1.5

1шт.

31

3144225R1

BAR

PLATE, mounting

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

32

3132318R1

PLATE

counter

1шт.
