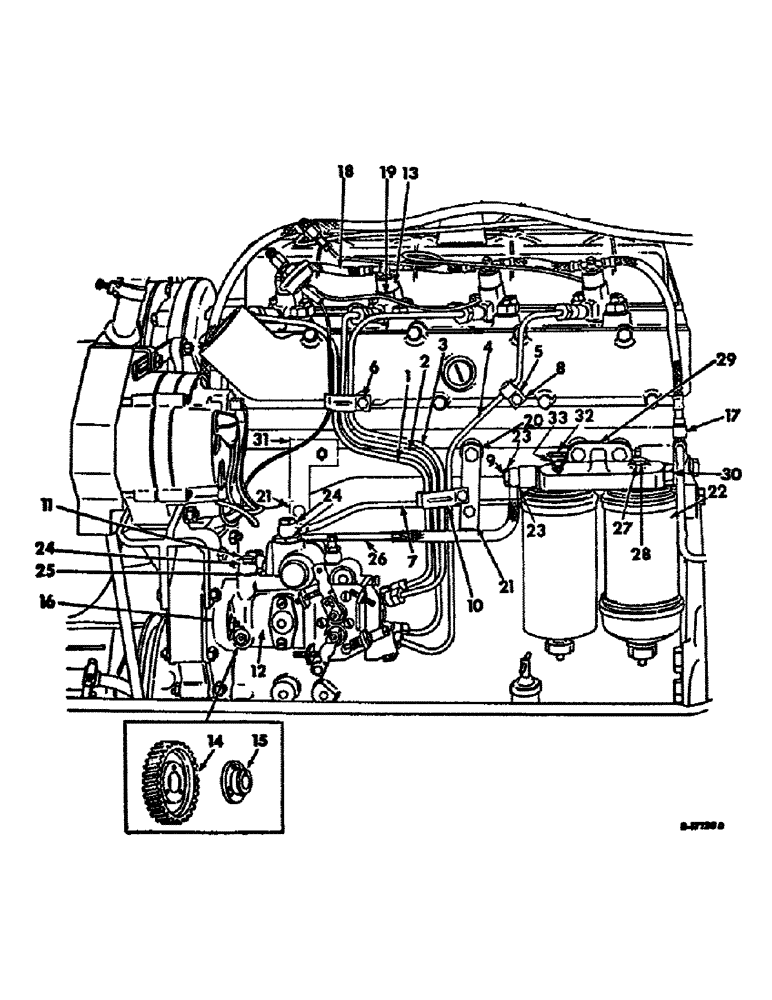

Запчасти Case IH D-239 (D-24) - FUEL INJECTION PUMP AND CONNECTIONS, 544 AND 2544 TRACTORS WITH ENGINE S/N 010144 AND BELOW

1

3132164R11

PIPE

PIPE ASSY., injection no. 1

1шт.

2

3132165R11

PIPE

PIPE ASSY., injection no. 2

1шт.

3

3132166R11

PIPE

PIPE ASSY., injection no. 3

1шт.

4

3132167R11

PIPE

PIPE ASSY., injection no. 4

1шт.

5

3055480R1

SPACER

PIPE

1шт.

6

3132766R1

CLAMP

CLAMP, pipe, Will work for 3055470R1 clamp, Pipe lower and 3055471R1 clamp, Pipe upper

1шт.

7

3055609R91

PIPE

LINE, overflow

1шт.

8

3132767R1

CLAMP

CLAMP, pipe, Will work for 3055476R1 clamp, Pipe upper and 3055477R1 clamp, Pipe lower

1шт.

9

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW, hollow

1шт.

10

3132768R1

CLAMP

CLAMP, pipe or

1шт.

10

3218243R1

CLAMP

CLAMP, pipe, Will work for 3055478R1 clamp, Pipe lower and 3055479R1 clamp, Pipe upper

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

BOLT, Hex, 1/4"-20 x 1 3/8", G5

1шт.

109084

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

11

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW, hollow

1шт.

12

PUMP ASSY., fuel injection, For components see list of parts under details of fuel injection pump

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

WASHER, .335 x .748 x .098

2шт.

13

3055423R93

HOLDER

HOLDER ASSY., injection nozzle, For components see list of parts under details of injection nozzle

4шт.

13

735253C91

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

4шт.

13

1934195C1

CORE-FUEL INJECTOR

Return Part Number, Injection Nozzle

4шт.

425-115

NUT,5/16"-24, G5

NUT, 5/16-24 hex.

8шт.

14

3056885R3

PINION

GEAR, injection pump, 66 teeth

1шт.

15

3055067R2

HUB

HUB, injection pump gear

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

BOLT, 5/16 x 3/4 phc type 8

3шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

WASHER, 8.8 x 21 x 2.5 MM phc

3шт.

16

3055384R1

GASKET

GASKET, fuel injection pump

1шт.

17

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

UNION, special tee

1шт.

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT, coupling

2шт.

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

RING, compression

2шт.

18

3055606R91

LINE

LINE, leak, Replaces 3132173R1

1шт.

19

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

O-RING, injection nozzle sealing

4шт.

20

3132174R1

LINK

LINK, fuel line fixing

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

21

3059647R1

CLAMP

CLIP, fuel line, Replaces 3055386R1

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

22

3132461R91

FILTER

FILTER, two stage fuel, For components see list of parts under details of fuel filters

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8-16 x 7/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

933610R1

SEALING RING,M14 x 18 x 1.8

SEALING WASHER, , Packing M14 x 18 x 1.8

2шт.

24

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

SEALING WASHER, , Packing M12 x 15.5 x 1.5

3шт.

25

3055390R1

RING

RING, packing

1шт.

26

3132596R1

LINE

LINE, filter injection pump fuel

1шт.

27

933610R1

SEALING RING,M14 x 18 x 1.8

SEALING WASHER, , Packing M14 x 18 x 1.8

1шт.

28

3056600R1

ADAPTER

ADAPTER

1шт.

29

3059289R1

PLATE

PLATE, thrust

1шт.

30

933766R1

PACKING RING

PLUG, closing

1шт.

31

3055678R1

PLATE

LINK, fuel line fixing

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

32

933610R1

SEALING RING,M14 x 18 x 1.8

SEALING WASHER, , Packing M14 x 18 x 1.8

1шт.

33

712616R1

PLUG,Hex, M14 x 1.5

PLUG, , Filler, Replaces 3055648R1 Hex, M14 x 1.5

1шт.
