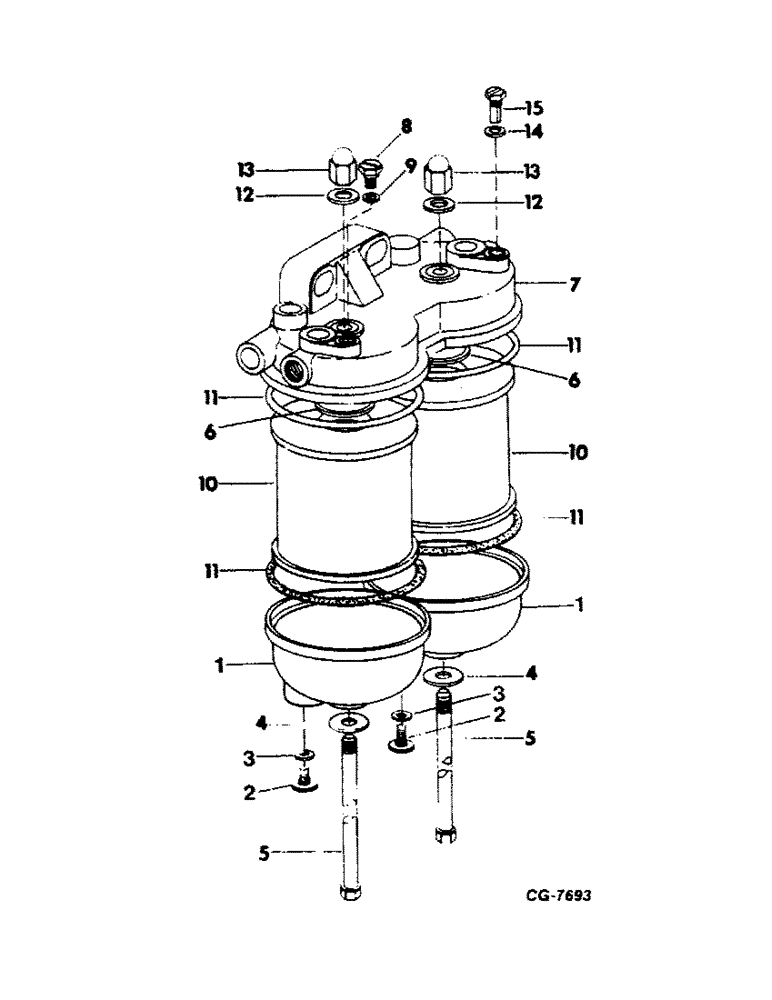

Запчасти Case IH D-239 (D-22) - FUEL FLTR., 5000 THRU 5500 WINDROWERS 20543 & BELOW, 574 & 574GD, 103204 & BELOW, 674 473984 & BELOW

3144227R91

FILTER

ASSY., w/glass bowl, Order 3144306R91

1шт.

3144306R91

FILTER

ASSY., w/metal bowl, Replaces 3144227R91

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 pln type 5

1шт.

NLS

NO LONGER SERVICED

1шт.

1

3144478R1

FILTER BOWL

glass, Optional With 3144481R1

2шт.

1

3144481R1

BOWL

metal, Optional With 3144478R1

2шт.

2

3144475R1

SCREW

drain, Used w/filter assy., 3144227R91

1шт.

3

3144476R1

RING

packing

2шт.

4

3144480R1

RING,8.1mm ID x 16mm OD x 2mm Thk

packing

2шт.

5

3144479R1

BOLT,Hex, M8 x 148mm, Cl 8.8

hollow, Order bolt, 3144482R1

2шт.

This part is still available and does not sub to P/N 3144482R1. There is a difference in length of about 1/2". P/N 3144479R1 is slightly longer.

1шт.

5

3144482R1

SCREW

BOLT, replaces hollow screw, 3144479R1

2шт.

6

3144779R1

RING

packing

2шт.

7

3144484R1

HEAD

filter

1шт.

8

3144780R1

SCREW

BOLT

1шт.

9

757760R1

RING

packing

1шт.

10

3132428R2

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order 3132428R2MP

ELEMENT, filter, Replaces filter packages, 3144477R92 and 3044506R93

2шт.

This is a spin-on type of filter. If looking for filter with bowl as pictured on Ref. 10, the P/N is 3044506R93.

1шт.

11

3144472R1

RING

packing

4шт.

12

3144474R1

RING,8mm ID x 13mm OD x 1.5mm Thk

packing

2шт.

13

3144473R1

CROWN NUT

crown

2шт.

14

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

1шт.

15

712616R1

PLUG,Hex, M14 x 1.5

Screw, locking Hex, M14 x 1.5

1шт.
