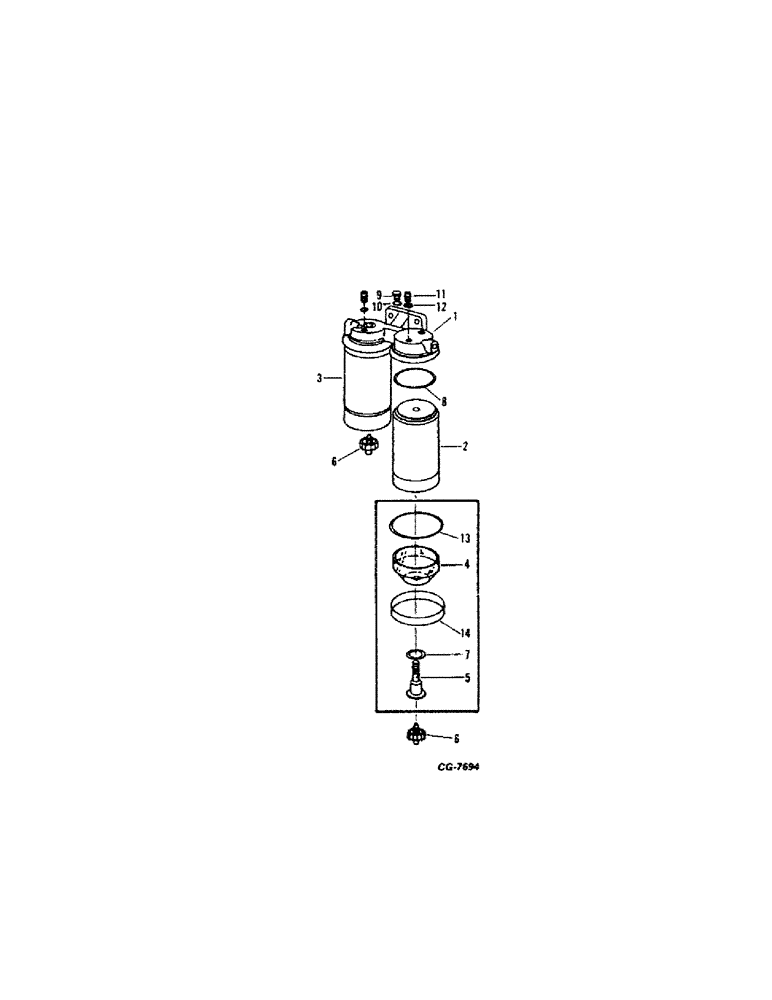

Запчасти Case IH D-239 (D-21[B]) - FUEL FILTER, 544 AND 2544 TRACTORS

1

3132491R1

FILTER HEAD

HEAD, filter

1шт.

2

3136187R91

FILTER

PACKAGE, primary fuel filter, Order 3132428R2, Replaces 3132275R1, Consists of

1шт.

NSS

NOT SOLD SEPARAT

FUEL FILTER

1шт.

3132191R1

RING

PACKING RING

1шт.

3

3132428R2

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order 3132428R2MP

ELEMENT, final fuel filter

2шт.

4

3132197R1

BOWL

transparent, Order filter element, 3132428R2

1шт.

5

3132194R1

SCREW,M12 x 1.5 x 68mm

hollow, Used w/bowl, 3132197R1

1шт.

6

3132196R1

SCREW

PLUG, drain

2шт.

7

3132192R1

RING

packing, Used w/bowl, 3132197R1

1шт.

8

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

RING, packing

2шт.

9

712616R1

PLUG,Hex, M14 x 1.5

Filler, Replaces 3055648R1 Hex, M14 x 1.5

1шт.

10

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

1шт.

11

3144780R1

SCREW

air vent

2шт.

12

757760R1

RING

packing, Replaces 787599R1

2шт.

13

3132191R1

RING

packing, Used w/bowl, 3132197R1

1шт.

14

3132493R1

RING

Used w/bowl, 3132197R1

1шт.
