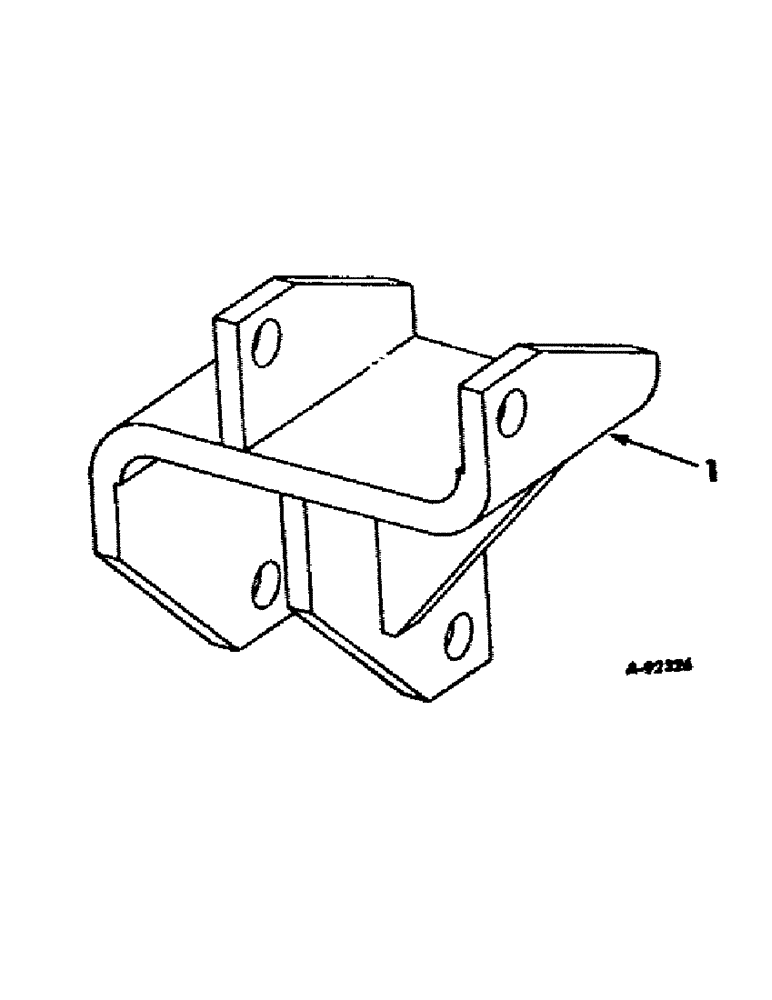

Запчасти Case IH D-239 (D-20) - ALTERNATOR BRACKET

1

3139173R91

BRACKET

ASSY., alternator, All machines except 5000/5500 windrowers, Replaces 3132189R1, 3132268R12 and 3132190R1

1шт.

SCREW, 5/16-18 x 2-1/2 hex-hd cap

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

933570R1

WASHER

DISC, spring

1шт.

3399801R1

WASHER

WASHER

2шт.

1

REF

INSTRUCTION

BRACKET ASSY., alternator, 5000/5500 windrowers, Refer to Chassis Parts Catalog

1шт.
