(D-20[A]) - ENGINE SUPPORTS, 544 AND 2544 TRACTORS

Запчасти Case IH D-239 (D-20[A]) - ENGINE SUPPORTS, 544 AND 2544 TRACTORS

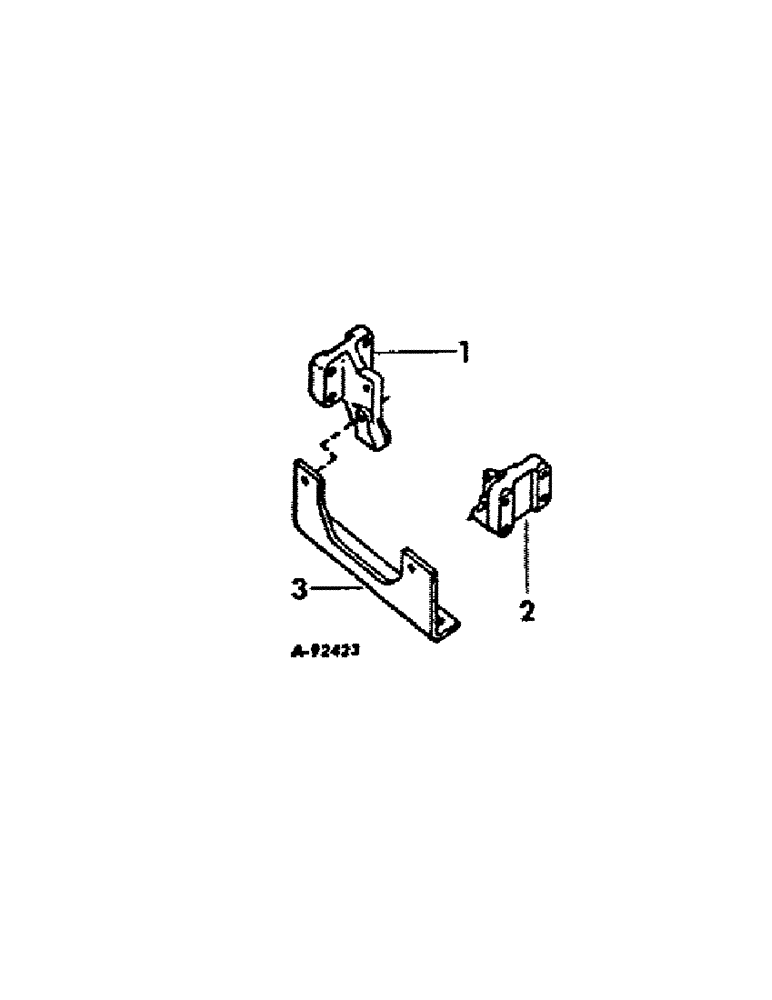

Схема запчастей Case IH D-239 - (D-20[A]) - ENGINE SUPPORTS, 544 AND 2544 TRACTORS
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

400380R1

SUPPORT

engine front LH

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 type 8 hex-hd

1шт.

2

400381R1

SUPPORT

front engine RH

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 type 8 hex-hd

1шт.

3

396805R1

SUPPORT, engine mounting bracket

1шт.

396804R1

BOLT, engine mounting bracket

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

Выбрано товаров: 7
