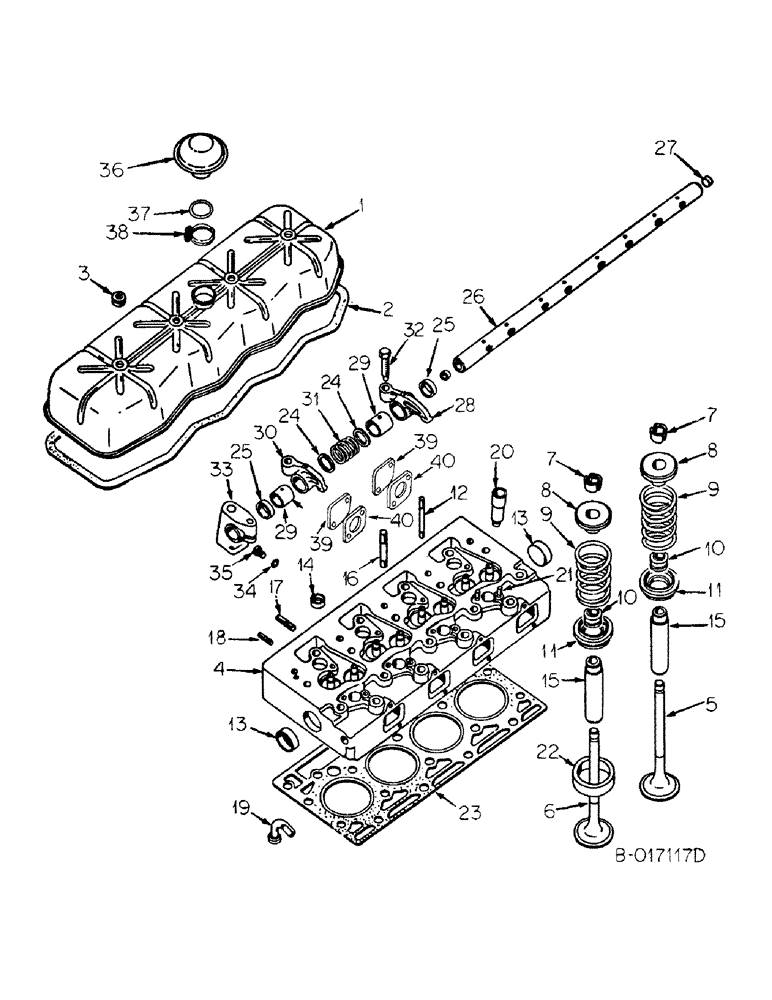

Запчасти Case IH D-239 (D-17) - CYLINDER HEAD AND RELATED PARTS, ALL MACHINES EXCEPT 5000 THRU 5500 WINDROWERS

1

3059219R21

COVER

ASSY., valve housing, 544 and 2544 tractors, Replaces 3132161R91

1шт.

1

3055181R1

COVER

ASSY., valve housing, All machines except 544, 664 and 2544 tractors

1шт.

1

3144118R91

COVER

ASSY., valve housing, 664 tractors

1шт.

3138637R1

CUP WASHER

WASHER, valve housing cover

4шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

4шт.

2

3138642R1

GASKET

valve housing cover, Replaces 3055185R1

1шт.

3

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

valve housing cover washer, Replaces 3055578R2

4шт.

4

3055367R97

HEAD (CYLINDER)

HEAD ASSY., cylinder, Replaces 3132160R96, Composed of

1шт.

NSS

NOT SOLD SEPARAT

HEAD, cylinder

1шт.

NSS

NOT SOLD SEPARAT

SEAT, exhaust valve

4шт.

3055663R1

STUD

exhaust manifold

8шт.

933750R1

PLUG,M32, Conical

cup

4шт.

934003R1

PLUG,M52, Conical

expansion

2шт.

3055022R2

VALVE GUIDE

GUIDE, valve stem

8шт.

3055220R1

STUD,1/2" - 20 x 3.18"

rocker shaft bracket

5шт.

3055221R1

STUD

water collection pipe

8шт.

3055344R1

SLEEVE

INSERT, nozzle holder

4шт.

3138747R1

BOLT,Cyl Hd, 9/16" - 12 x 123mm

9/16-12 x 5 hex-hd

8шт.

3138748R1

BOLT,Flng, 9/16" - 12 x 5-3/4"

BOLT, 9/16-12 x 5-3/4 hex-hd

10шт.

5

3055055R2

OVERSIZE INLET VALVE

VALVE, intake

4шт.

6

3055056R2

STD EXHAUST VALVE

VALVE, exhaust, Replaces 3059459R2

4шт.

7

3055057R91

ROCKER ARM COTTER

CONE ASSY., spring lock valve

8шт.

8

3055058R2

SPRING CUP

CAP, valve spring retainer

8шт.

9

3055060R1

SPRING

valve

8шт.

10

NSS

NOT SOLD SEPARAT

SEAL, valve stem, Not serviced separately, Order package 3218399R91

8шт.

Ref #10.....see Service Bulletin s-4546, page 6. It states that for a 4 cylinder engine order: 1 of 3228677r91 Valve Seal Package. For 3 cyl order: 1 of 3218399 r91 Valve Seal Pkg. For 6 cyl order: 2 of 3218399 r91.....cc 3/99

1шт.

11

3055059R91

CAP

ROTOCAP, valve

8шт.

12

3132764R1

ADAPTER

4шт.

13

933574R1

PLUG,M50, Conical

expansion 1.97, Engine serial no. 105018 and below, 061160 and below, 45-S-1 and below, 46-S-1 and below and 47-S-1 and below

2шт.

13

934003R1

PLUG,M52, Conical

expansion, 2.05, Engine serial no. 105019 and above, 061161 and above, 44-S-2 and above, 45-S-2 and above, 46-S-2 and above and 47-S-2 and above

2шт.

14

933750R1

PLUG,M32, Conical

expansion 32 MM

4шт.

14

934804R1

PLUG,M34, Conical

expansion 34 MM

4шт.

15

3055022R2

VALVE GUIDE

GUIDE, valve stem

8шт.

16

3055220R1

STUD,1/2" - 20 x 3.18"

rocker shaft bracket

5шт.

17

3055663R1

STUD

exhaust manifold

8шт.

18

3055221R1

STUD

water collecting pipe

8шт.

10

Not used in this application

1шт.

20

3055344R1

SLEEVE

INSERT, nozzle holder

4шт.

21

3055412R1

STUD

nozzle holder

8шт.

22

3132361R1

INSERT

exhaust valve seat, .016 O/S

4шт.

22

3132362R1

VALVE SEAT

INSERT, exhaust valve seat, .004 O/S

4шт.

23

3228362R1

CYLINDER HEAD GASKET

cylinder head, Will work for 3132284R4 and 3138959R3

1шт.

24

3055669R1

THRUST WASHER

rocker arm thrust

8шт.

25

3055068R1

BUSHING,22mm ID x 30mm OD x 6.8mm L

distance

7шт.

26

3055070R21

SHAFT HOUSING

SHAFT W/TWO PLUGS, 933565R1, Rocker arm

1шт.

27

933565R1

PLUG,M14, Conical

expansion

2шт.

28

NSS

NOT SOLD SEPARAT

ARM ASSY., intake rocker, Not serviced separately, Order package 3132292R92

4шт.

3132138R1

NUT

rocker arm shaft

4шт.

29

3132019R1

BUSHING,21.15mm ID x 26.09mm OD x 25.4mm L

8шт.

30

NSS

NOT SOLD SEPARAT

ARM ASSY., exhaust rocker, Not serviced separately, Order package 3132293R92

4шт.

3132138R1

NUT

rocker arm shaft

4шт.

31

3055075R2

SPRING

rocker arm

4шт.

32

3132137R1

ADJUSTMENT SCREW

Rocker arm

8шт.

33

3055077R6

SUPPORT

BRACKET, rocker arm shaft

5шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

5шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5шт.

34

718743R1

SEALING RING,M10 x 16 x 1

Ring M10 x 16 x 1

1шт.

35

934259R1

PLUG,Hex, M10 x 1

Replaces 933127R1 Hex, M10 x 1

1шт.

36

3132821R92

AIR CLEANER

CAP, breather, Replaces 3132115R1, 544 and 2544 tractors

1шт.

36

3144117R93

BREATHER

CAP, breather, 664 tractors

1шт.

37

3070232R1

O-RING

used w/cap 3144117R91

1шт.

38

3144120R1

CLAMP

STRAP, clamping, 664 tractors

1шт.

39

3132721R1

COVER

used with water manifold 3218034R1 only

2шт.

40

3055306R1

GASKET

cover

2шт.

3055369R1

PLATE

SHACKLE, engine mtg RH

1шт.

3055370R1

STIRRUP

SHACKLE, engine mtg front

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-1/8 hex-hd cap

1шт.

3132292R92

ROCKER

PACKAGE, intake rocker arm, Includes reference nos. 28, 32 and attaching hardware

1шт.

3132293R92

ROCKER

PACKAGE, exhaust rocker arm, Includes reference nos. 30, 32 and attaching hardware

1шт.

3218399R91

GASKET KIT

PACKAGE, valve seals, Replaces 3136407R91, Consists of

2шт.

NSS

NOT SOLD SEPARAT

SEAL

8шт.

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.
