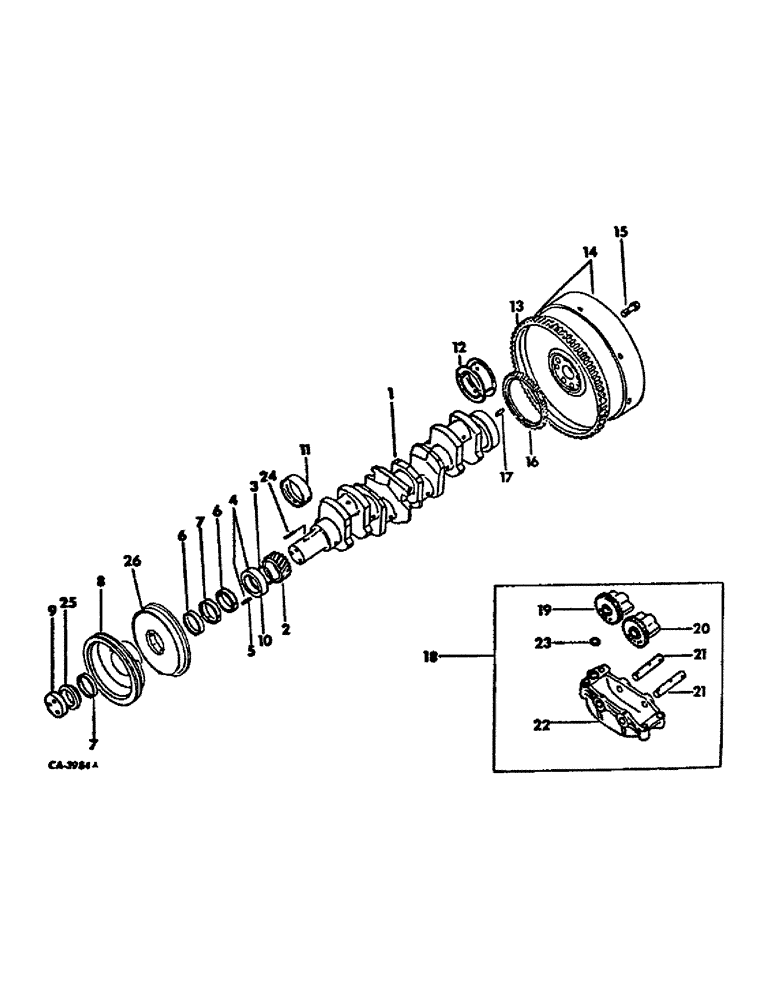

Запчасти Case IH D-239 (D-14) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

3132982R94

CRANKSHAFT BEARING

W/BEARINGS, Std., Will work for 3055790R91, Consists of

1шт.

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

3055028R1

PINION

GEAR, crankshaft pinion

1шт.

3136237R1

PINION

GEAR, balancer drive

1шт.

NLS

NO LONGER SERVICED

3/8 x 1.000 pln uhdn dowel

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

Roll M4 x 10, Slotted

1шт.

3055129R21

CRANKSHAFT BEARING

BEARING ASSY., rear main

1шт.

3055130R21

CRANKSHAFT BEARING

BEARING ASSY., main

4шт.

3055351R91

BEARING ASSY

BEARING ASSY., connecting rod or

4шт.

1

3144626R92

CRANKSHAFT BEARING

W/BEARINGS, Std., Deep nitroc hardened, Will work for 3055790R91, Consists of

1шт.

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

141244

PIN

3/8 x 1.000 pln uhdn dowel

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

Roll M4 x 10, Slotted

1шт.

3055028R1

PINION

GEAR, crankshaft pinion

1шт.

3136237R1

PINION

GEAR, balancer drive

1шт.

3055129R21

CRANKSHAFT BEARING

BEARING ASSY., rear main

1шт.

3055130R21

CRANKSHAFT BEARING

BEARING ASSY., main

4шт.

3055351R91

BEARING ASSY

BEARING ASSY., connecting rod

4шт.

1

3218861R91

CRANKSHAFT

W/BEARINGS, 0.250 MM U/S, 0.010 U/S, Will work for 3059555R91 and 3132983R93, Consists of

1шт.

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

NLS

NO LONGER SERVICED

3/8 x 1.000 pln uhdn dowel

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

Roll M4 x 10, Slotted

1шт.

3055028R1

PINION

GEAR, crankshaft pinion

1шт.

3136237R1

PINION

GEAR, balancer drive

1шт.

3056820R11

BEARING ASSY

BEARING ASSY., rear main

1шт.

3056832R21

BEARING ASSY

BEARING ASSY., main

4шт.

3056834R11

BEARING ASSY

BEARING ASSY., connecting rod

4шт.

1

3128864R91

CRANKSHAFT W/BEARINGS 0.500 MM U/S, 0.020 U/S, Will work for 3059557R91 and 3132985R93, Consists of

1шт.

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

141244

PIN

3/8 x 1.000 pln uhdn dowel

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

Roll M4 x 10, Slotted

1шт.

3055028R1

PINION

GEAR, crankshaft pinion

1шт.

3136237R1

PINION

GEAR, balancer drive

1шт.

3056875R11

BEARING ASSY

BEARING ASSY., rear main

1шт.

3056877R21

BEARING ASSY

BEARING ASSY., main

4шт.

3056879R11

BEARING ASSY

BEARING ASSY., connecting rod

4шт.

2

3055028R1

PINION

GEAR, crankshaft pinion, 33 teeth

1шт.

3

713778R1

O-RING,3mm Thk x 55mm ID

RING, seal

1шт.

4

NSS

NOT SOLD SEPARAT

RING ASSY., distance, Not serviced separately, Order crankcase oil seal package, 3228133R93

1шт.

5

932681R1

DOWEL,4mm OD x 24mm L

Pin, Replaces 932569R1 M4 x 24, Oval

1шт.

5

932224R1

DOWEL,M4 x 32, Oval

PIN, dowel, 32 MM/1.26 in.

1шт.

5

932652R1

DOWEL,4mm OD x 28mm L

PIN, dowel, 28 MM/1.10 in.

1шт.

6

3055152R91

RING

ELEMENT, spring tightener, Used with crankshaft pulley 3132156R1 & 3136043R1

2шт.

7

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

pressure, Used with crankshaft pulley 3132156R1 & 3136043R1

2шт.

8

3132156R1

PULLEY

crankshaft, 554, 664 & 2544 tractors

1шт.

8

3138838R2

PULLEY

crankshaft, Replaces 3136043R1 by also ordering 3138874R1, 574 & 674 tractors

1шт.

8

3138835R1

PULLEY

crankshaft, 5000/5500 windrowers

1шт.

9

3055154R1

WASHER

pressure

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

1шт.

10

NSS

NOT SOLD SEPARAT

RING, distance, Not serviced separately, Order crankcase oil seal package, 3228133R93

1шт.

11

3055130R21

CRANKSHAFT BEARING

BEARING ASSY., main, Std.

4шт.

11

3056832R21

BEARING ASSY

BEARING ASSY., main, .010 U/S

4шт.

11

3056877R21

BEARING ASSY

BEARING ASSY., main, .020 U/S

4шт.

11

3055779R21

BEARING ASSY

ASSY., main, .030 U/S, No longer available

4шт.

12

3055129R21

CRANKSHAFT BEARING

BEARING ASSY., main, Std.

1шт.

12

3056820R11

BEARING ASSY

BEARING ASSY., main, .010 U/S

1шт.

12

3056875R11

BEARING ASSY

BEARING ASSY., main, .020 U/S

1шт.

12

3055776R11

BEARING ASSY

BEARING ASSY., main, .030 U/S

1шт.

13

367042R1

GEAR

replaces 3132158R1, Used w/flywheel 3132157R11

1шт.

13

3132411R1

RING GEAR

GEAR, used w/flywheel 3138596R11

1шт.

13

60883H

RING GEAR

GEAR, used w/flywheel 3136044R11

1шт.

13

3132158R1

GEAR, RING

GEAR, used w/flywheel 3144211R91

1шт.

13

REF

INSTRUCTION

GEAR, 5000/5500 windrowers, Refer Chassis parts catalog

1шт.

14

3132157R11

GEAR

FLYWHEEL ASSY., 544 & 2544 tractors with synchromesh transmission

1шт.

14

3138596R11

FLYWHEEL ASSY., 544 & 2544 tractors with hydrostatic transmission, On orders for 3132199R11 furnish 3138596R11 and drive plate service package, 532249R91

1шт.

14

3136044R41

FLYWHEEL WITH GEAR

FLYWHEEL ASSY., also order seven bolts, 3218037R1, 574 & 674 tractors

1шт.

REF. ITEM 14 (3136044R41) THE 3218037R1 BOLTS DON'T ENTER THE CRANKSHAFT ENOUGH FOR A 1/2" BOLT---USE THE 3218558R1 (67.5-68.5mm) THIS WILL BE CLOSE TO THE BOTTOM OF THE THREADS IN THE CRANK SO BE CAREFULL.bb12/4/95 -- bushings for item # 19 and # 20 re 3055506R1 , all use the same bushings kl 5/6/96

1шт.

14

3144211R91

FLYWHEEL

ASSY., 664 tractors

1шт.

14

REF

INSTRUCTION

FLYWHEEL ASSY., 5000/5500 windrowers, Refer to Chassis parts catalog

1шт.

15

3132159R2

BOLT,Hex, 1/2" - 20 x 63.5mm

flywheel, Used w/flywheel 3132157R11 and 3136044R11

7шт.

15

3055156R2

BOLT,1/2" - 20 x 33.5mm

flywheel, Used w/flywheel 3138596R11

7шт.

15

3144213R1

BOLT,Hex, 1/2" - 20 x 53mm

Flywheel, Used w/flywheel 3144211R91

1шт.

15

3218037R1

BOLT,Hex, 1/2" - 20 x 58.5mm

Flywheel, Used w/flywheel 3136044R31

7шт.

16

3055145R1

GEAR

balancer drive, Engine serial no. 44-P-95 and below, 46-P-55 and below, 47-P-91 and below, and engine w/series prefix no. 44, 45, 46 or 47 mid letter N or O

1шт.

REF #16 P/N 3055145R1 THICKNESS OF GEAR IS 10 MM OR .3937". DLR SHOULD CHECK THKNESS OF HIS GEAR BEFORE ORDERING. 7/3/97 JBEDFORD

1шт.

16

3136237R1

PINION

GEAR, balancer drive, Replaces 3132753R2, Engine serial no. 44-P-96 and above, 45-O-6 and above, 46-P-56 and above, 47-P-92 and above, DT2D and 000100 and above

1шт.

17

NLS

NO LONGER SERVICED

3/8 x 1 dowel

1шт.

18

0C

ORDER COMPONENTS

BALANCER ASSY., balancer assy. 3055501R94 not serviced, Furnish component parts, Engine serial no. 44-P-95 and below, 46-P-77 below, 47-P-139 and below, and engines w/series prefix no. 44, 45, 46 or 47 and mid letter N or O

1шт.

18

3132874R94

HOUSING

BALANCER ASSY., less ref. no. 23, Engine serial no. 44-P-96 and above, 45-O-6 and above, 46-P-78 and above, 47-P-140 and above, DT2D 000100 and above

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

7/16 x 2-3/4 type 5, 574 and 674 tractors

1шт.

180153

BOLT,Hex, 7/16" - 14 x 2", Gr 5

7/16 x 2 type 5

1шт.

NLS

NO LONGER SERVICED

7/16 x 2-1/4 type 5

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

3218543R1

LOCK WASHER

lock, 2 used on 5000/5500 windrowers

1шт.

19

3055502R11

BALANCER

WEIGHT ASSY., idler, Used w/balancer assy., 3055501R94

1шт.

19

NSS

NOT SOLD SEPARAT

WEIGHT ASSY., idler, Used with balancer assy., 3132874R94, Order set, 3228374C91

1шт.

Ref: 19A Order set, 3228374R91 not C91. 5-June-96

1шт.

20

3055505R11

COUNTERWEIGHT

WEIGHT ASSY., drive, Used w/balancer assy., 3055501R94

1шт.

20

NSS

NOT SOLD SEPARAT

WEIGHT ASSY., drive, Used with balancer assy., 3132874R94, Order set, 3228374C91

1шт.

Ref: 20A Order set, 3228374R91 not C91. 5-June-96

1шт.

21

3132878R11

PIN,23mm OD x 93mm L

SHAFT ASSY., weight, Replaces 3055503R21

2шт.

932229R1

SPLIT PIN/SAFETY PIN

PIN, slotted spring 4 x 20

2шт.

932299R1

LOCK PIN,M2.5 x 20, Slotted

Spring M2.5 x 20, Slotted

2шт.

22

NSS

NOT SOLD SEPARAT

HOUSING ASSY., used with balancer assy., 3055501R94, Only serviceable items are

1шт.

3055174R1

BUSHING

dowel

2шт.

3055173R1

PLUG

housing

2шт.

22

HOUSING ASSY., used with balancer assy., 3132874R94, Order balancer assy., 3132874R94, Only serviceable items are

1шт.

3055174R1

BUSHING

dowel

2шт.

3055173R1

PLUG

housing

2шт.

23

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

7/8 x 1-1/16 x 3/32, Used w/balancer assy., 3132874R94

1шт.

23

3058907R1

O-RING,2.5mm Thk x 18.5mm ID

.72 x .91 x .094, Used w/balancer assy., 3055501R94

1шт.

24

932169R1

LOCK PIN,M4 x 10, Slotted

Roll M4 x 10, Slotted

1шт.

25

3138874R1

BEARING WASHER

RING, clamping, Used with pulley 3138838R2 and 3138835R1

1шт.

26

NOT USED THIS APPLICATION

1шт.

3228133R93

SEAL KIT

PACKAGE, crankshaft oil seal, Replaces 3136724R94, Consists of

1шт.

NSS

NOT SOLD SEPARAT

RING, distance

1шт.

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

932652R1

DOWEL,4mm OD x 28mm L

PIN, 4M6 x 28 dowel

1шт.

932224R1

DOWEL,M4 x 32, Oval

PIN, 4M6 x 32 dowel

1шт.

713778R1

O-RING,3mm Thk x 55mm ID

RING, seal

1шт.

NSS

NOT SOLD SEPARAT

SEAL, radial lip

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS, installing

1шт.

3228374R91

BALANCER

SET, matched balancer weights assy., Used w/balancer 3132874R94, Consists of ref. nos. 18 and 19

1шт.

Ref: 26 328374r91 set- consist of Ref: #'s 19 & 20 not 18 & 19 as page D-16 refers. 5-June-96

1шт.
