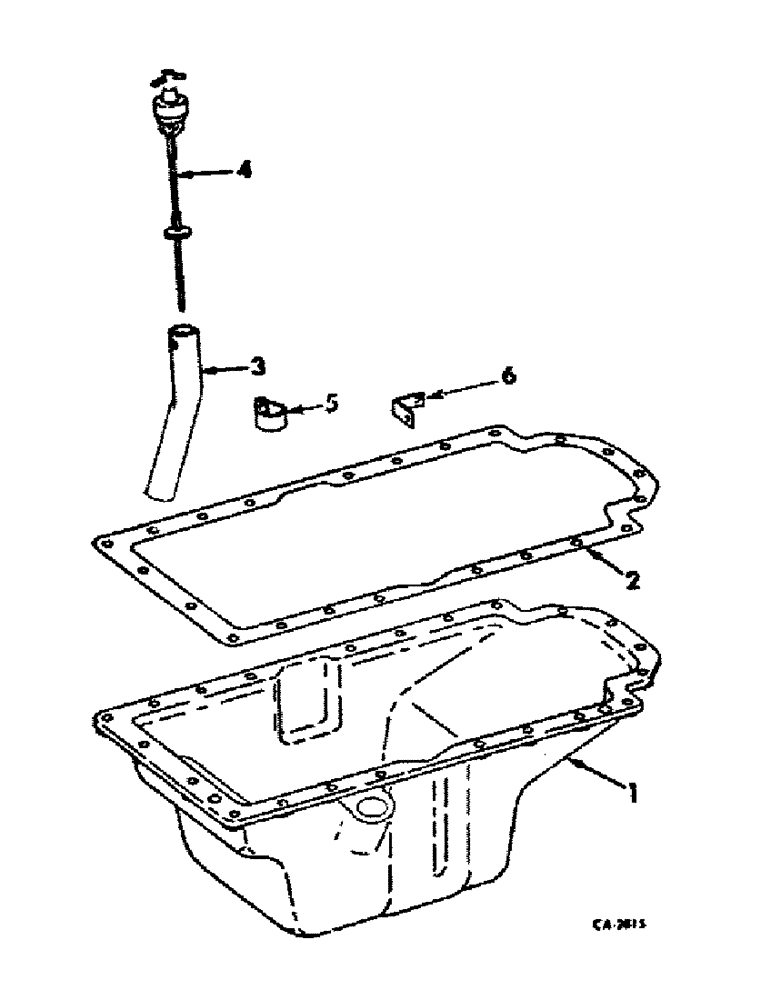

Запчасти Case IH D-239 (D-13) - CRANKCASE OIL PAN

1

3132151R11

PAN ASSY., oil, 544, 664 & 2544 tractors

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

14шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

18шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

All machines except 664 tractors Hex, 5/16"-18 x 3 1/2", G5

2шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

664 tractors Hex, 5/16"-18 x 3", G5

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

3131883R2

SCREW

PLUG, filler and drain

1шт.

933609R1

RING

RING, packing

1шт.

933570R1

WASHER

DISC, spring

4шт.

1

3218391R91

PAN

W/O TUBE ASSY., oil, Replaces 3132201R4, 5000/5500 windrowers w/engine serial no. 020573 and below

1шт.

1

3218561R91

PAN

W/TUBE ASSY., oil, 5000/5500 windrowers w/engine serial no. 020574 and above

1шт.

1

3136055R94

PAN ASSY.

oil, 574, 674 tractors

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

16шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

22шт.

3132883R2

PLUG, filler and drain

1шт.

933609R1

RING

RING, packing

1шт.

933570R1

WASHER

DISC, spring

4шт.

2

3055161R1

GASKET

oil pan

1шт.

3

3132152R1

PIPE

oil filling, 544, 644 & 2544 tractors

1шт.

3

3136241R1

TUBE,29.556 mm OD, 250 mm Length

PIPE, oil filling, 574 and 674 tractors

1шт.

3

3132202R2

PIPE

oil filling, 5000/5500 windrowers w/engine serial no. 020573 & below

1шт.

3

PIPE, oil filling, Part of oil pan 3218561R91, 5000/5500 windrowers w/engine serial no. 020574 & above

1шт.

4

3132153R91

ELECTRICAL GAUGE

COVER W/GAUGE, 544, 664 & 2544 tractors

1шт.

4

3136242R2

DIPSTICK

COVER W/GAUGE, 574 and 674 tractors

1шт.

4

3132204R91

DIPSTICK

COVER W/GAUGE, 5000/5500 windrowers w/engine serial no. 020573 & below

1шт.

4

3218554R1

ELECTRICAL GAUGE

COVER W/GAUGE, 5000/5500 windrowers w/engine serial nos., Serial Range: 020574-022007

1шт.

4

3228548R1

ELECTRICAL GAUGE

COVER W/GAUGE, 5000/5500 windrowers w/engine serial no. 022008 & above

1шт.

5

3132818R1

CLAMP

filler tube, 5000/5500 windrowers w/engine serial no. 020574 & above

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

6

3218553R1

SUPPORT

filler tube, 5000/5500 windrowers w/engine serial no. 020574 & above

1шт.
