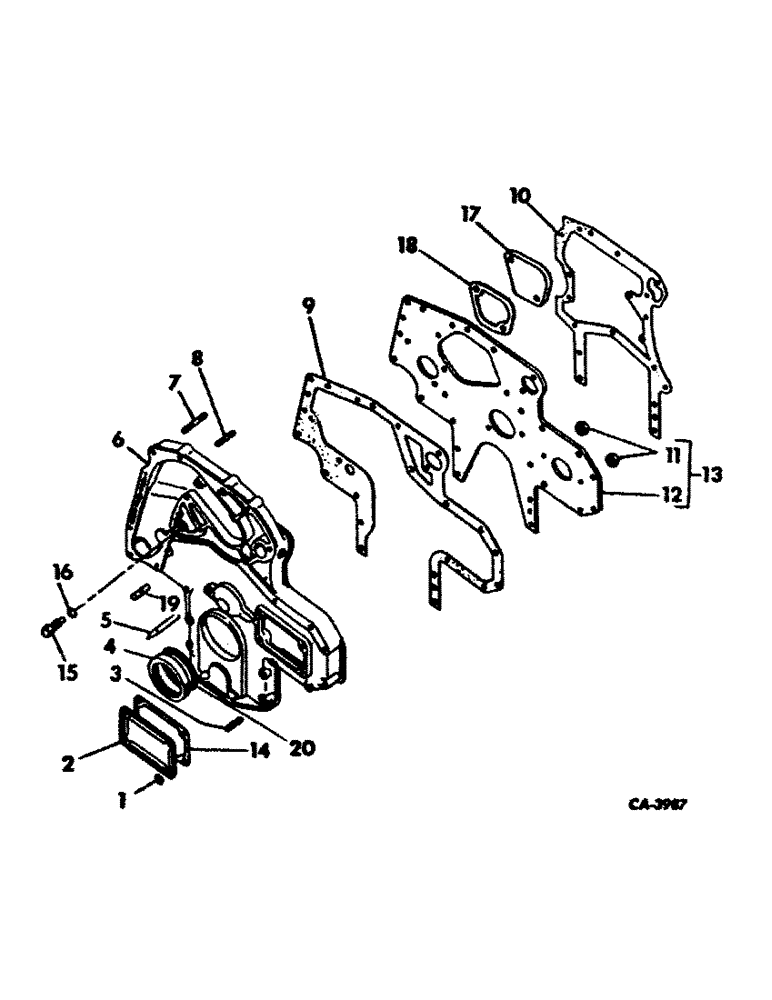

Запчасти Case IH D-239 (D-12) - CRANKCASE FRONT COVER, 5000 THRU 5500 WINDROWERS

1

131402H

WASHER

11/32 x 9/16 x .054

4шт.

2

3055140R1

COVER

injection pump

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

3050129R1

LOCK WASHER

WASHER, 5/16 lock

4шт.

131402H

WASHER

.34 x .56 x .05

1шт.

3

3055242R1

STUD

5/16-18 x 5/16-18 x 1-5/32

4шт.

4

SEAL, crankcase front oil, Furnish package 3228133R92

1шт.

5

3056855R1

INDICATOR

POINTER, timing

1шт.

6

3056853R51

COVER

ASSY., front, Consists of

1шт.

NSS

NOT SOLD SEPARAT

COVER

1шт.

3056855R1

INDICATOR

POINTER

1шт.

3055242R1

STUD

S

4шт.

3138972R1

PLUG

1шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

2шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 x 2 znd type 5

5шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

5/16 x 2-1/4 znd type 5

2шт.

120376

NUT,5/16"-18, G5

4шт.

3050129R1

LOCK WASHER

WASHER, 5/16 lock

3шт.

933570R1

WASHER

DISC, spring

7шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SCREW, 5/16-18 x 2-7/8 hex-hd cap

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3шт.

102635

NUT,3/8"-16, G5

3шт.

102382

WASHER

3/8 reg lock

3шт.

102214

WASHER

5/16 znd spring lock

1шт.

444667

PLUG

front cover

1шт.

7

3055244R1

STUD

5/16-18 x 5/16-18 x 2-15/32

1шт.

8

3055243R1

STUD

5/16-18 x 5/16-18 x 2-5/16, 3 used w/3056853R51

1шт.

9

3144072R1

GASKET

front cover

1шт.

10

3055239R1

GASKET

plate

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

12

PLATE, crankcase front, Order plate assy., 3055064R11

1шт.

13

3055064R11

PLATE

ASSY., crankcase front cover

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8 type 5

7шт.

3050129R1

LOCK WASHER

WASHER, 5/16 lock

7шт.

3055065R1

STUD

2шт.

14

3138640R1

GASKET

pump cover

1шт.

15

933223R1

PLUG,Hex, M18 x 1.5

18 MM x 1.5 MM x 17 MM hex-hd

1шт.

16

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Packing M18 x 24 x 1.5

1шт.

17

3055142R1

COVER

hydraulic pump

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

444641

SCREW, 3/8-16 x 3-5/8 hex-hd cap

1шт.

102635

NUT,3/8"-16, G5

2шт.

3050221R1

LOCK WASHER

3/8 lock

2шт.

18

3055143R1

GASKET

hydraulic pump cover

1шт.

19

3136275R1

STUD, 5/16-18 x 5/16-18 x 3-1/16

1шт.

20

713778R1

O-RING,3mm Thk x 55mm ID

1шт.
