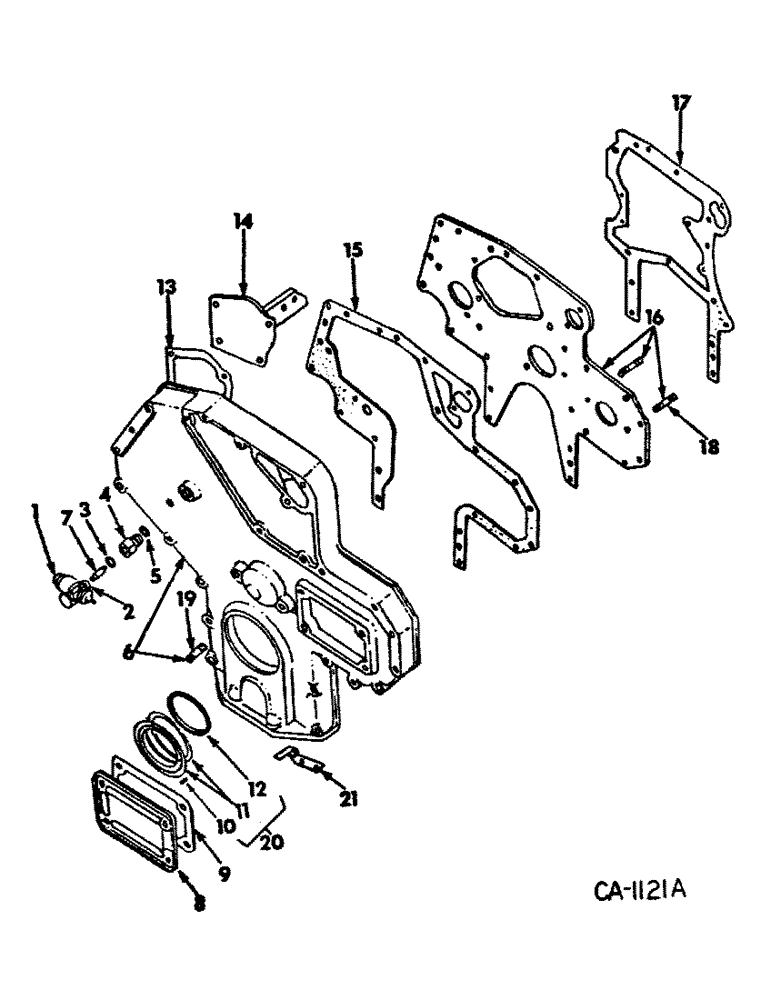

Запчасти Case IH D-239 (D-11) - CRANKCASE FRONT COVER AND RELATED PARTS, 574 AND 674 TRACTORS

1

3055982R93

DRIVE, ANGLE

DRIVE ASSY., angle

1шт.

2

3132116R1

NUT

hex.

1шт.

3

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

RING, radial seal

1шт.

4

3055983R1

REDUCER FITTING

SPACER

1шт.

5

933222R1

SEALING WASHER,M18 x 22 x 1.5

1шт.

6

3136244R91

LID

COVER ASSY., crankcase front, Replaces 3136057R14

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

9шт.

179827

FRONT AXLE

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

7шт.

993570R1

DISK, spring

6шт.

7

3056986R1

SUPPORT

SHAFT, angle drive extension

1шт.

8

3055140R1

COVER

injection pump

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

131402H

WASHER

11/32 x 11/16 x 16 GA

4шт.

9

3138640R1

GASKET

injection pump cover

1шт.

933223R1

PLUG,Hex, M18 x 1.5

SCREW, 18 MM x 1.5 MM x 17 MM locking

1шт.

10

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

10

932224R1

DOWEL,M4 x 32, Oval

PIN, dowel, 32 MM/1.26 in.

1шт.

10

932652R1

DOWEL,4mm OD x 28mm L

PIN, dowel, 28 MM/1.10 in.

1шт.

11

RING ASSY., distance, Order crankcase oil

1шт.

12

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

13

3132541R1

GASKET

closing cover

1шт.

14

3136061R92

COVER ASSY

.

1шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

15

3055994R1

GASKET

crankcase front cover

1шт.

16

3055996R11

PLATE ASSY.

PLATE, crankcase front

1шт.

179814

SPACER

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

20990R1

PLUG

3/8-18 brass auto, hex-hd pipe

1шт.

17

3055239R1

GASKET

front plate

1шт.

18

3055065R1

STUD

5/16-18 x 5/16-18 x 1-9/16, 39 MM

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

19

3055242R1

STUD

5/16-18 x 5/16-18 x 1-5/32, 30 MM

4шт.

20

3228133R91

SEAL KIT

PACKAGE, crankcase oil seal service, Replaces 3136724R94

1шт.

21

3136040R21

ADJUSTER

INDICATOR, timing, Replaces 3136252R11

1шт.
