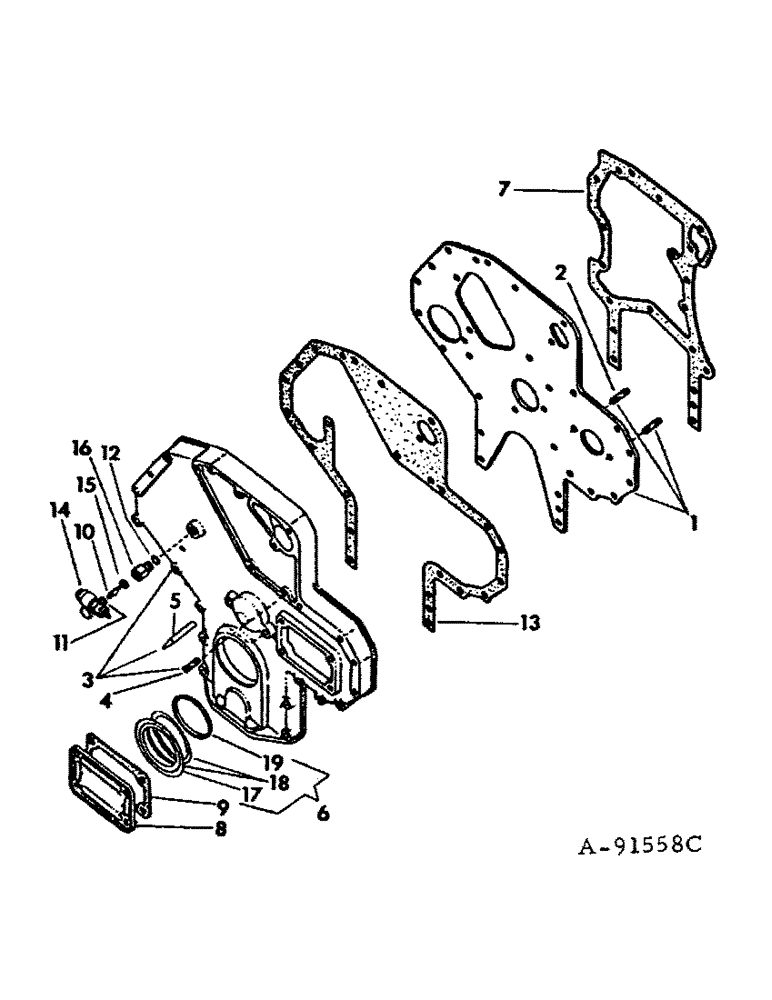

Запчасти Case IH D-239 (D-10) - CRANKCASE FRONT COVER AND RELATED PARTS, 544, 664 AND 2544 TRACTORS

1

3132012R11

PLATE

ASSY., crankcase front

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

3132013R1

SHIM

2шт.

20990R1

PLUG

3/8 hex-hd pipe

1шт.

2

3055065R1

STUD

front plate

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

3

3132149R15

COVER

ASSY., front, Replaces 3136245R91

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

9шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

5шт.

933570R1

WASHER

DISK, spring

7шт.

4

3055242R1

STUD

crankcase front cover

4шт.

5

3132150R1

POINTER, timing

1шт.

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER, timing pointer lock

1шт.

6

3228133R91

SEAL KIT

PACKAGE, crankcase oil seal service, Replaces 3136724R94

1шт.

7

3055239R1

GASKET

crankcase front cover plate

1шт.

8

3055140R1

COVER

injection pump

1шт.

131402H

WASHER

11/32 x 11/16 x 16 ga

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18

4шт.

9

3138640R1

GASKET

injection pump cover, Replaces 3055141R1

1шт.

933223R1

PLUG,Hex, M18 x 1.5

SCREW, locking

1шт.

10

3056986R1

SUPPORT

COUPLING, drive angle

1шт.

11

3132116R1

NUT

hex.

1шт.

12

933222R1

SEALING WASHER,M18 x 22 x 1.5

1шт.

13

3055994R1

GASKET

crankcase front cover

1шт.

14

3055982R93

DRIVE, ANGLE

DRIVE ASSY., angle

1шт.

15

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

RING, seal

1шт.

16

3055983R1

REDUCER FITTING

SPACER

1шт.

17

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

17

932224R1

DOWEL,M4 x 32, Oval

PIN, dowel, 32 MM/12.6 in.

1шт.

17

932652R1

DOWEL,4mm OD x 28mm L

PIN, dowel, 28 MM/1.10 in.

1шт.

18

RING ASSY., distance, Order crankcase oil seal pkg., 3228133R91

1шт.

19

713778R1

O-RING,3mm Thk x 55mm ID

1шт.
