Запчасти Case IH D-206 (05-02) - WATER PUMP

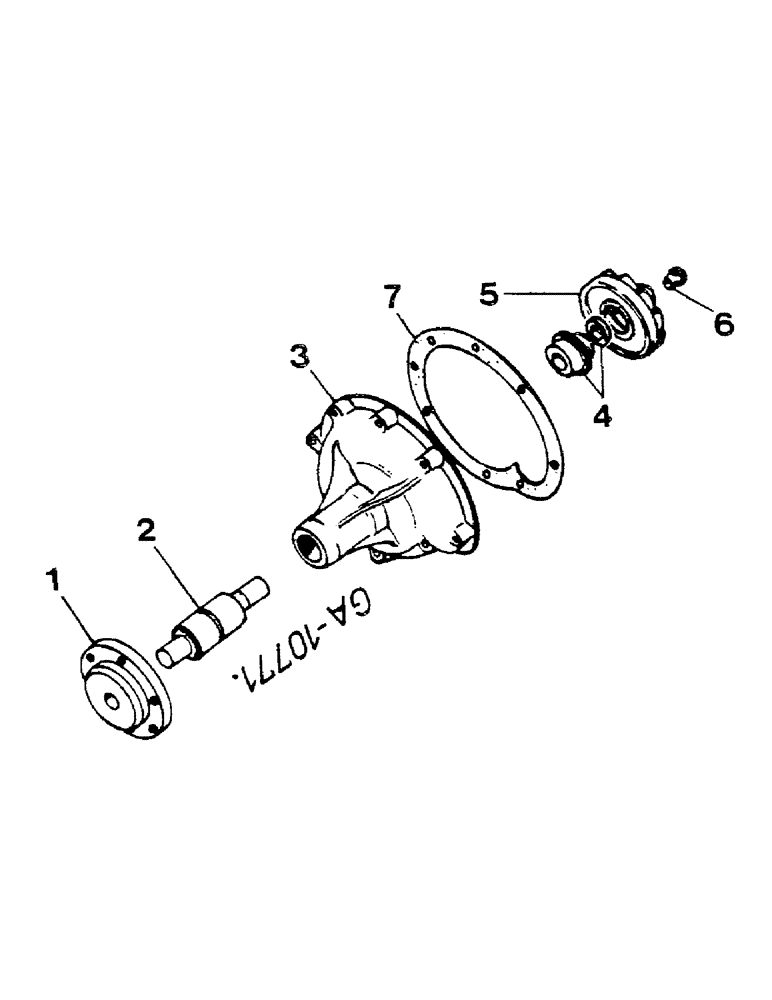

Схема запчастей Case IH D-206 - (05-02) - WATER PUMP
1
3
7
6
4
2
5

Артикул

Название

Примечание

Количество

3136217R92

PUMP, WATER

D-155 - 433 + V+E; 533 + V+E, D-179 - 633 + V+E, 733 + V+E; D-206 - SU-633; CONSISTS OF ITEMS 1 THRU 6

1шт.

3132738R93

PUMP, WATER

D-239 - 743, 743XL, 745S, 745XL; D-155 - SU-533, 262 F.A.I.; CONSISTS OF ITEMS 1 THRU 6

1шт.

735098C91

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

1928117C1

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

3132741R93

PUMP, WATER

D-239 - 844S, 844XL, 845, 845XL; D-268 - SU-644, DT-239 - 856XL; CONSISTS OF ITEMS 1 THRU 6

1шт.

3138936R92

PUMP, WATER

D-310 - 955, 955S, 955XL, 956; D-358 - 956XL, 1055, 105XL, 1056 - DT-358 - 1056XL, 1255, 1255XL, 1455; DT-402 - 1455XL; CONSISTS OF ITEMS 1 THRU 6

1шт.

3132676R93

PUMP, WATER

D-310 - 955, 955XL, 959, 959XL, 1055 - - FOR VERSION WITH COMPRESSOR - - D-358 - 1055XL, 1056, 1056XL, 1255; DT-358 - 1255XL, 1455, 1455XL; DT-402; CONSISTS OF ITEMS 1 THRU 6

1шт.

735097C91

REMAN-WATER PUMP

Reman for New PN 3132676R93

1шт.

1928115C1

CORE-WATER PUMP

Return Number

1шт.

3136053R92

PUMP, WATER

D-179 - H84, 248, 258, 268, 278 - D-206 - 484, 584, 585XL, 684, 685XL; D-239 - 784, 785XL, 2530TC; CONSISTS OF ITEMS 1 THRU 6

1шт.

3136053R92GV

WATER PUMP

Value, Water Pump Assy.

1шт.

735102C91

REMAN-WATER PUMP

Reman for New PN 3136053R92

1шт.

1928123C1

CORE-WATER PUMP

Return Number

1шт.

735102C91

REMAN-WATER PUMP

Remanufactured WATER PUMP - For N.A. Only

1шт.

1928123C1

CORE-WATER PUMP

Return Number, WATER PUMP - For N.A. Only

1шт.

3132739R93

PUMP, WATER

D-268 - 884, 885XL; CONSISTS OF ITEMS 1 THRU 6

1шт.

3132739R92GV

WATER PUMP

Value, Water Pump Assy.

1шт.

735099C91

REMAN-WATER PUMP

Reman for New PN 3132739R93

1шт.

1928119C1

CORE-WATER PUMP

Return Number

1шт.

3144661R93

PUMP, WATER

DT-358 - 858F; CONSISTS OF ITEMS 1 THRU 6

1шт.

735105C91

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

1928127C1

CORE-WATER PUMP

Return Number

1шт.

3132676R93

PUMP, WATER

D-358 - 923, 933, 943, 953HD, DT-358, DT-402; CONSISTS OF ITEMS 1 THRU 6

1шт.

735097C91

REMAN-WATER PUMP

Reman for New PN 3132676R93

1шт.

1928115C1

CORE-WATER PUMP

Return Number

1шт.

181309

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

1/4 X 64 MM

1шт.

28301R1

HEX SOC SCREW,5/16" - 18 x 1 3/8"

5/16 X 35 MM

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

1шт.

28300R1

HEX SOC SCREW,5/16" - 18 x 3 3/8"

5/16 X 86 MM

1шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

1шт.

3050129R1

LOCK WASHER

5/16

1шт.

103319

LOCK WASHER,1/4"

1шт.

103320

LOCK WASHER,5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

1

3136218R1

HUB

FOR PUMP 3136217R92

1шт.

1

3055188R1

HUB

FOR PUMP 3132738R93 + 3132741R93

1шт.

1

3138937R1

HUB

FOR PUMP 3138936R92

1шт.

1

3132678R1

HUB

FOR PUMP 3132676R93

1шт.

1

3132146R1

HUB

FOR PUMP 3136053R92 + 3132739R93

1шт.

1

3218772R1

HUB

FOR PUMP 3144661R93

1шт.

2

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

PUMP

1шт.

2

3218765R91

BEARING ASSY,24 mm ID x 47 mm OD x 54.05 mm

PUMP - FOR 3144661R93

1шт.

3

3132677R41

BODY

PUMP - FOR 3144661R93

1шт.

3

3218769R92

BEARING ASSY

PUMP WITH BEARING 3218765R91

1шт.

4

3055285R93

GASKET KIT

PACKING, WITH ITEM 7 - NOT USED 856XL

1шт.

5

3055211R2

IMPELLER

3136217R92, 3136053R92, 3132738R93

1шт.

5

787579R2

IMPELLER

FOR PUMP 3132741R93, 3132739R93, 3132676R93, 3138936R92, 3144661R93

1шт.

6

3055308R1

PLUG

1шт.

7

3055177R1

GASKET

1шт.

Выбрано товаров: 49
