Запчасти Case IH D-206 (11-010) - INJECTION PUMP, INJECTION LINES, NOZZLE HOLDER

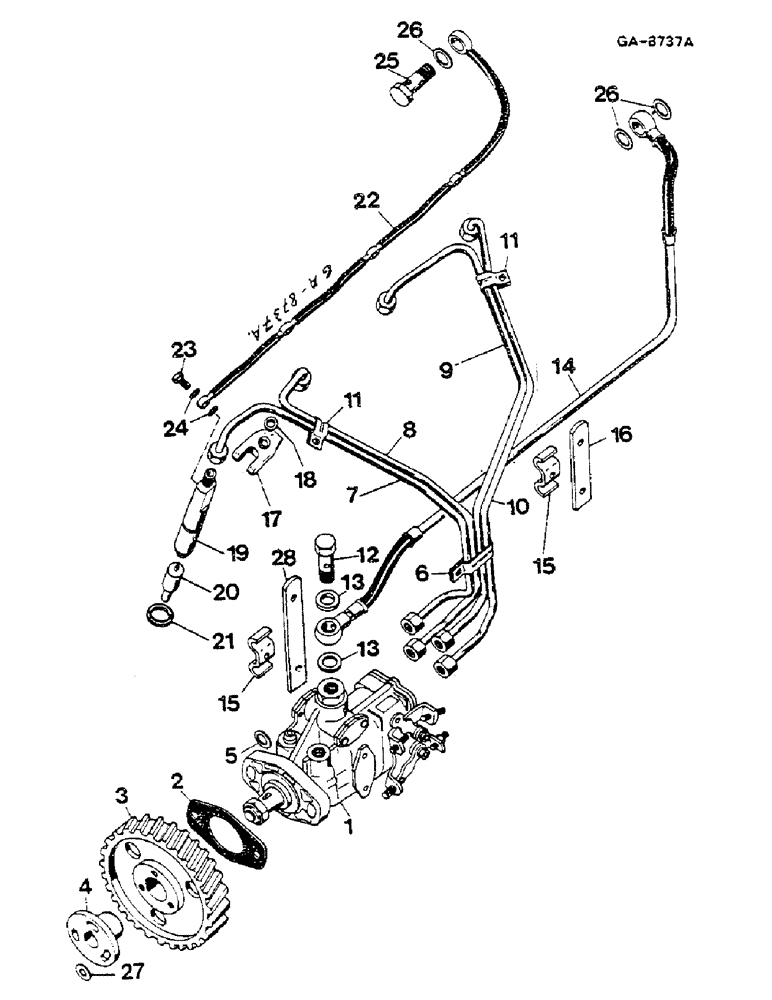

Схема запчастей Case IH D-206 - (11-010) - INJECTION PUMP, INJECTION LINES, NOZZLE HOLDER
8
3
13
9
4
15
11
27
12
11
5
17
25
26
23
19
6
10
18
1
28
15
20
7
14
13
22
26
24
16
21
2

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

PUMP, INJECTION, NATURALLY ASPIRATED ENGINES

1шт.

933981R1

NUT,M12 x 1.75, Cl 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

933834R1

LOCK WASHER,M12

12 MM

1шт.

2

3055384R1

GASKET

1шт.

3

3055066R3

GEAR

INJECTION PUMP - 66 TEETH - D-206 & D-239

1шт.

3

3056885R3

PINION

GEAR, INJECTION PUMP - 66 TEETH - D-268

1шт.

4

3055067R2

HUB

PUMP GEAR

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 X 19 MM

3шт.

5

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

2шт.

6

3132768R1

CLAMP

1шт.

6

3218243R1

CLAMP

MOULDED RUBBER INSERT

1шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

7

3218144R1

PIPE

INJECTION CYLINDER 1 - D-206

1шт.

7

3218149R1

INJECTION PIPE

INJECTION CYLINDER 1 - D-239

1шт.

7

3218174R1

INJECTION PIPE

INJECTION CYLINDER 1 - D-268

1шт.

8

3218145R1

INJECTION PIPE

CYLINDER 2 - D-206

1шт.

8

3218150R1

INJECTION PIPE

INJECTION CYLINDER 2 - D-239

1шт.

8

3218175R1

INJECTION PIPE

INJECTION CYLINDER 2 - D-268

1шт.

9

3218146R1

PIPE

INJECTION CYLINDER 3 - D-206

1шт.

9

3218151R1

INJECTION PIPE

CYLINDER 3 - D-239

1шт.

9

3218176R1

INJECTION PIPE

INJECTION CYLINDER 3 - D-268

1шт.

10

3218147R1

PIPE

INJECTION CYLINDER 4 - D-206

1шт.

10

3218152R1

INJECTION PIPE

INJECTION CYLINDER 4 - D-239

1шт.

10

3218177R1

INJECTION PIPE

CYLINDER 4 - D-268

1шт.

11

3132770R1

COLLAR

2шт.

11

3218241R1

CLAMP

MOULDED RUBBER INSERT

2шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

12

3059086R1

BANJO BOLT

SCREW, HOLLOW M12

1шт.

13

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

2шт.

14

3055381R1

HOSE, LINE OVERFLOW - D-206 & D-268

1шт.

14

3218709R1

LINE

HOSE, OVERFLOW - D-239

1шт.

15

3055386R1

CLAMP

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

2шт.

16

3055387R1

LINK

FIXING

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

1шт.

17

3218128R1

RETAINER

HOLDER

4шт.

24477R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

18

3218129R1

WASHER

4шт.

19

NSS

NOT SOLD SEPARAT

HOLDER, NOZZLE

4шт.

20

3218248R2

NOZZLE CAP

D-206

4шт.

20

3218251R2

NOZZLE CAP

D-239 & D-268

4шт.

20

735255C91

REMAN-FUEL INJECTOR

Remanufactured Nozzle

1шт.

20

1934199C1

CORE-FUEL INJECTOR

Return number

1шт.

21

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

4шт.

22

3218125R1

LINE

HOSE, LEAK - D-206 & D-268

1шт.

22

3218710R1

LINE

HOSE, LEAK - D-239

1шт.

23

3218130R1

BANJO BOLT,Hex, M6 x 133.02mm

HOLLOW M6

4шт.

24

933696R1

SEALING RING,M6 x 10 x 1

Packing

8шт.

25

711734R2

SCREW

HOLLOW M14

1шт.

26

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

3шт.

27

30183R1

WASHER,M8 x 21.5 x 2.5, HT

3шт.

28

3055458R1

LARGE PLATE

PLATE, LARGE LINK, FIXING

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

D-206

1шт.

Выбрано товаров: 60
