Запчасти Case IH D-206 (08-02) - VALVE HOUSING COVER, 3 + 4 CYLINDER

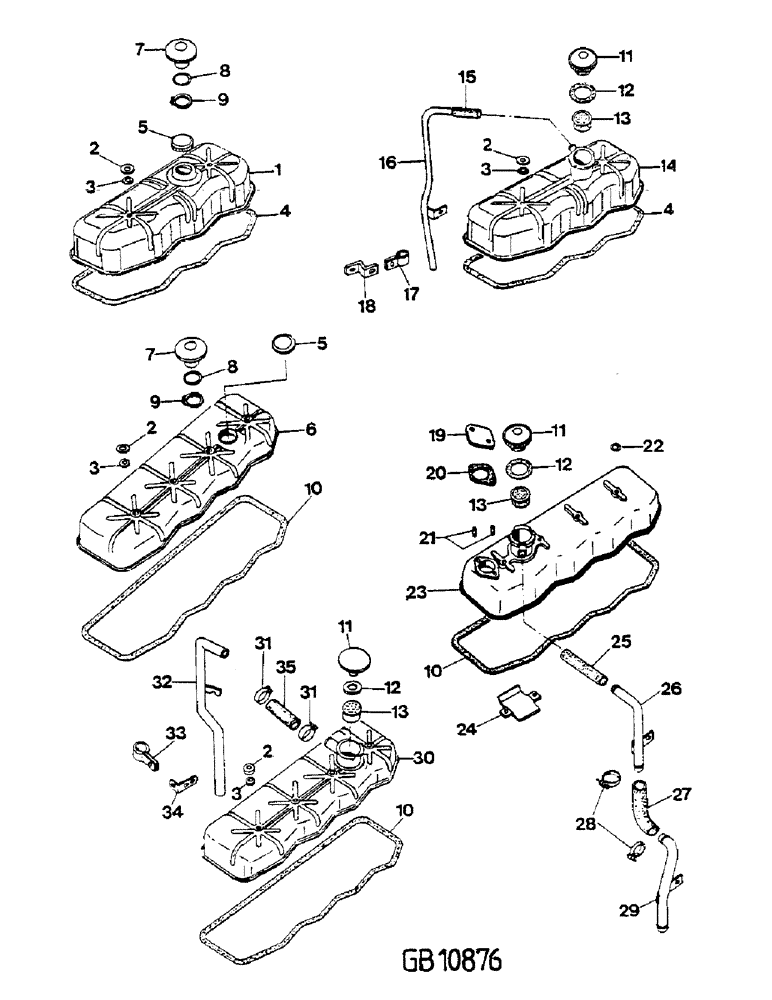

Схема запчастей Case IH D-206 - (08-02) - VALVE HOUSING COVER, 3 + 4 CYLINDER
13
19
3
33
16
22
2
4
1
18
3
11
25
8
5
2
17
35
31
3
10
12
30
13
34
14
2
10
10
11
11
7
27
12
8
9
29
15
24
23
20
26
32
13
2
9
7
3
31
5
6
28
12
4
21

Артикул

Название

Примечание

Количество

1

3218613R91

COVER

VALVE HOUSING - 433+V+E S/N 191393 UP - 533+V+E S/N 223840 UP - 633+V+E S/N 291836 UP - VERSION W/OIL FILLER NECK

1шт.

1

3136364R1

COVER

VALVE HOUSING - 433+V+E UP TO S/N 191392 - - 533+V+E UP TO S/N 223839 - 633+V+E UP TO S/N 291835 - VERSIONS W/OUT OIL FILLER NECK BREATHER FILTER

1шт.

1

3144787R1

COVER

VALVE HOUSING - 248, 484 - VERSIONS W/BREATHER FILTER

1шт.

1

3136364R1

COVER

VALVE HOUSING - 248, 484 - VERSION W/OUT OIL FILLER NECK/ BREATHER FILTER

1шт.

425-115

NUT,5/16"-24, G5

1шт.

2

3138637R1

CUP WASHER

WASHER

1шт.

3

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

1шт.

4

3138641R1

GASKET

3 CYL.

1шт.

5

3218408R1

COVER

CAP, FILLER - VERSION W/OUT FILLER NECK

1шт.

6

3218618R91

COVER

VALVE HOUSING - 733+V+E, 743+XL, 745S, 745XL, 844, 844XL, 845+XL - VERSION W/OIL FILLER NECK

1шт.

6

3218627R91

COVER

VALVE HOUSING - 743+XL, 745S, 745XL, 844S, 844XL, 845+XL - VERSION W/OIL FILLER NECK AND BREATHER FILTER

1шт.

6

3055181R1

COVER

VALVE HOUSING - 258, 584, 585XL, 268, 684, 685XL, H84, 268HD, 278, 784, 785XL, 884, 885XL - VERSION W/OUT OIL FILLER NECK AND BREATHER FILTER

1шт.

6

3144788R2

COVER

VALVE HOUSING - 258, 584, 585XL, 268, 684, 685XL, H8D, 268HD, 278, 784, 785XL, 884, 885XL - VERSION WITH BREATHER FILTER

1шт.

425-115

NUT,5/16"-24, G5

4шт.

7

3144117R93

BREATHER

FILTER

1шт.

8

3070232R1

O-RING

1шт.

9

3144120R1

CLAMP

1шт.

10

3138642R1

GASKET

4 CYL.

1шт.

11

3136337R91

COVER

WITH ITEM 12

1шт.

12

3136338R1

GASKET,45mm ID x 68mm OD x 2.3mm Thk

1шт.

13

3136336R1

FILTER

1шт.

14

3136358R13

COVER

VALVE HOUSING, SU-533, SU-633

1шт.

425-115

NUT,5/16"-24, G5

2шт.

15

3144899R1

HOSE

1шт.

16

3144898R1

TUBE

SU-533

1шт.

16

3228146R1

TUBE

SPARE PART SU-633

1шт.

17

3144023R1

CLAMP

SU-533

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

18

3144022R1

BRACKET

SU-533

1шт.

179900

BOLT,Hex, 9/16" - 12 x 3/4", Gr 5

9/16 X 70 MM

1шт.

103324

LOCK WASHER,9/16"

1шт.

19

3136405R1

COVER

1шт.

20

3136406R1

GASKET

1шт.

21

710936R1

STUD

2шт.

103321

LOCK WASHER,3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

22

3136506R1

RING

PACKING

4шт.

23

3136400R13

COVER

VALVE HOUSING, SU-644

1шт.

186274

BOLT,Hex, 5/16" - 18 x 5", Gr 5

5/16 X 127 MM

4шт.

24

3136401R3

SHEET

SHIELD, SPLASH

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

2шт.

25

3136340R1

HOSE

1шт.

26

3136341R12

TUBE

1шт.

27

3138650R1

HOSE

SPARE PART

1шт.

28

897116H1

CLAMP

2шт.

29

3136511R92

TUBE

1шт.

30

3228332R1

COVER

VALVE HOUSING - 262 F.A.I.

1шт.

30

3228726R91

COVER ASSY

VALVE HOUSING - 856 XL

1шт.

187953

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

4шт.

31

755023R91

STRAP

CLAMP

2шт.

32

3228333R91

TUBE

1шт.

32

3118726R1

TUBE, 856XL

1шт.

33

3228112R1

CLAMP

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

34

3228111R1

HOLDER

ANGLE

1шт.

34

1806410C1

SUPPORT

856XL

1шт.

179900

BOLT,Hex, 9/16" - 12 x 3/4", Gr 5

9/16 X 19 MM

1шт.

103324

LOCK WASHER,9/16"

1шт.

35

3132186R1

HOSE,25.00 mm ID x 60.00 mm

1шт.

Выбрано товаров: 64
