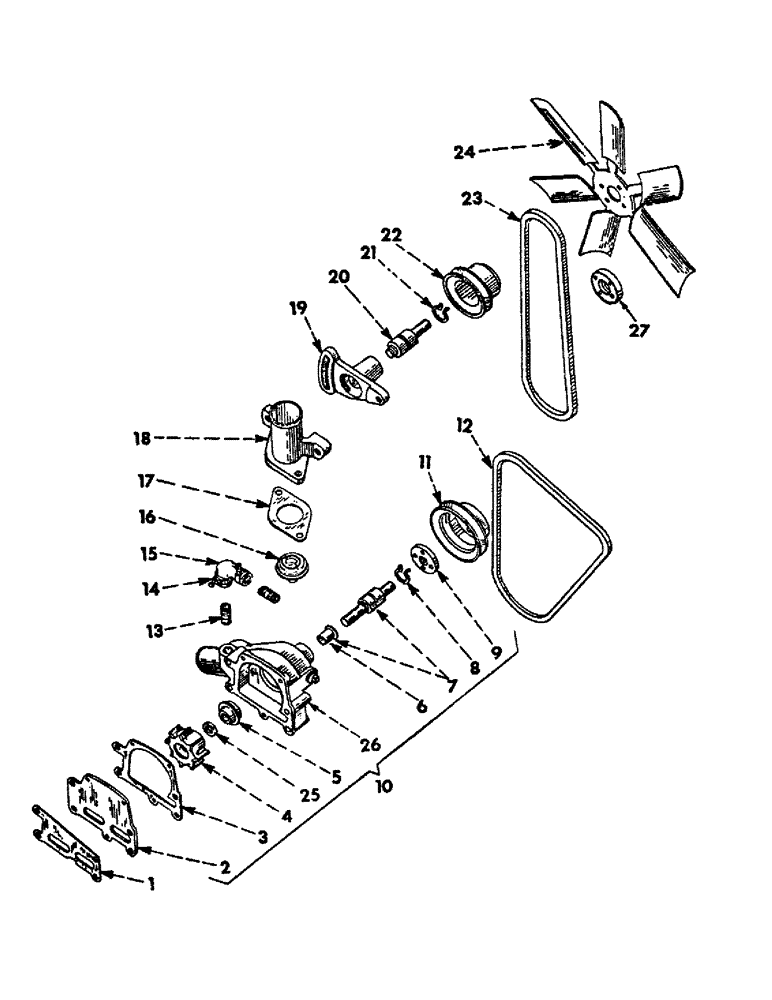

Запчасти Case IH D-188 (C-05) - FAN, THERMOSTAT AND WATER PUMP

1

69676R1

GASKET

GASKET, water pump

1шт.

2

69675R1

PLATE

PLATE, water pump

1шт.

441444

SPARE PART

SCREW, 1/4-20 x 1/2 slt-pan-hd mach

3шт.

3

69674R1

GASKET

GASKET, water pump plate

1шт.

4

387931R1

TORQ CONV IMPELLER

IMPELLER, water pump

1шт.

5

687161C91

PACKING

PACKAGE, water pump seal

1шт.

6

71351R1

SLINGER

SLINGER, water pump

1шт.

7

376602R91

BEARING ASSY,30mm OD x 110.69mm L

BEARING WITH SHAFT, water pump

1шт.

8

102069H

RING

RETAINER, bearing

1шт.

9

392713R1

HUB

HUB, pulley, Will work for 368501R2

1шт.

10

601816C92

PUMP

PUMP ASSY., water

1шт.

10

749170C91

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

10

1928129C1

CORE-WATER PUMP

Return Part Number, Water Pump

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/2", G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

11

308384R1

PULLEY

PULLEY, water pump

1шт.

181307

BOLT,Hex, 1/4" - 28 x 3/8", Gr 5

SCREW, 1/4-28 x 3/8 hex-hd cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

12

315969R1

BELT

Fan, Water pump generator

1шт.

13

169193R1

PIPE

NIPPLE, water by-pass

2шт.

14

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, hose

2шт.

15

169192R1

HOSE

ELBOW, water by-pass

1шт.

16

108120R91

THERMOSTAT

THERMOSTAT, 168 to 172 deg opening

1шт.

17

368505R1

GASKET

GASKET, water outlet

1шт.

18

368504R1

OUTLET

OUTLET, water

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hd cap

1шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

SCREW, 7/16-14 x 2-1/2 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

19

368508R1

ADJUSTER

HEIGHT ADJUSTER, fan pulley

1шт.

179680

SCREW, 7/16-14 x 1-1/4 hex-hd cap

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

106264

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

WASHER, 1/2 x 1-1/4 x .083

2шт.

20

ST634

BEARING ASSY

BEARING W/SHAFT, fan

1шт.

21

102069H

RING

RETAINER, bearing

1шт.

22

378609R1

PULLEY

PULLEY, fan

1шт.

23

385119R1

BELT,0.50" W

Fan

1шт.

24

389926R91

SPARE PART BLADE ASSY., fan

1шт.

190910

SCREW, 1/4-20 x 2-3/4 hex-hd cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

25

265164C91

PACKING RING

SEAT W/BUSHING, impeller

1шт.

26

NSS

NOT SOLD SEPARAT

BODY W/PLUGS ASSY., water pump, Not serviced separately, Order water pump assy., 601816C92

1шт.

27

318008R1

SPARE PART SPACER, fan

1шт.
