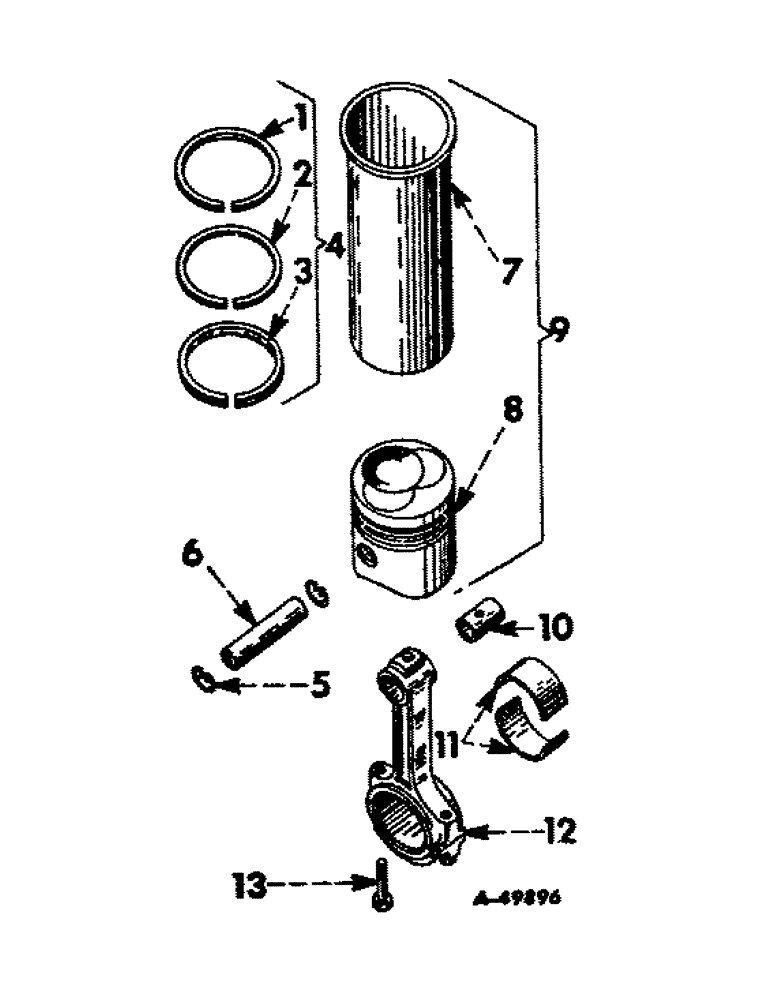

Запчасти Case IH D-188 (C-03) - CONNECTING RODS AND PISTONS

1

NSS

NOT SOLD SEPARAT

RING, compression piston, Top or first groove, Will work for 317879R1

4шт.

2

NSS

NOT SOLD SEPARAT

RING, compression piston, Second groove, Will work for 338403R1

4шт.

3

NSS

NOT SOLD SEPARAT

RING, oil piston, Third or bottom groove

4шт.

4

316335R93

PACKAGE

RING SET, piston, Consists of eight compression rings and four oil regulating rings

1шт.

5

338835R1

SNAP RING,1.125", Int, #112

Ring, Snap, , piston pin 1.125", Int, #112

8шт.

6

332436R1

PIN,28.57mm OD x 17.48mm L

piston, Std.

4шт.

6

332437R1

PIN, piston, .005 O/S

4шт.

7

320017R91

PACKAGE

CYLINDER SLEEVE PACKAGE, Consists of 1 sleeve, 278272R1, shim, 320000R1 and two shims, 320018R1

1шт.

7

278272R1

SLEEVE CYLINDER

SLEEVE, cylinder, Std.

4шт.

7

323802R1

SLEEVE CYLINDER

SLEEVE, cylinder, .002 O/S

4шт.

7

601289C1

SLEEVE CYLINDER

SLEEVE, cylinder, .010 O/S

4шт.

320018R1

SHIM

cylinder sleeve, .003

1шт.

8

318377R2

PISTON

4шт.

9

332682R91

SLEEVE

SET, crankcase, Consists of four sleeves 332672R91

1шт.

9

609344C91

PACKAGE, REPAIR

SLEEVE ASSY., cylinder, Consists of

4шт.

338835R1

SNAP RING,1.125", Int, #112

Ring, Snap, 1.125", Int, #112

2шт.

615288C1

RING

1шт.

615289C1

RING

1шт.

278329R1

RING

1шт.

320017R91

PACKAGE

SLEEVE ASSY.

1шт.

9

609346C91

SLEEVE CYLINDER

SLEEVE ASSY., cylinder, O/S, Consists of

4шт.

332436R1

PIN,28.57mm OD x 17.48mm L

1шт.

318377R2

PISTON

1шт.

338835R1

SNAP RING,1.125", Int, #112

Ring, Snap, 1.125", Int, #112

2шт.

615288C1

RING

1шт.

615289C1

RING

1шт.

278329R1

RING

1шт.

323802R1

SLEEVE CYLINDER

SLEEVE ASSY., .002 O/S, replaces 320217R91

1шт.

10

306708R1

BUSHING,28.28mm ID x 31.89mm OD x 33.33mm L

piston pin

4шт.

11

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING ASSY., connecting rod, 2 halves, Std.

4шт.

11

367632R11

BEARING ASSY

BEARING ASSY., connecting rod, 2 halves, .002 U/S

4шт.

11

376666R11

BEARING ASSY

ASSY., connecting rod, 2 halves, .010 U/S

4шт.

11

376668R11

CONN. ROD SHELL

BEARING ASSY., connecting rod, 2 halves, .020 U/S

4шт.

11

367631R11

BEARING ASSY

ASSY., connecting rod, 2 halves, .030 U/S

4шт.

12

306280R12

ROD, CONNECTING

Includes ref. nos. 10 and 13

4шт.

12

735237C91

REMAN-CONNECTING ROD

Reman for New PN 306280R12

4шт.

12

1928147C1

CORE-ROD CONNECTING

Return Number

4шт.

13

316366R1

BOLT,3/8" - 24 x 2"

connecting rod

8шт.
