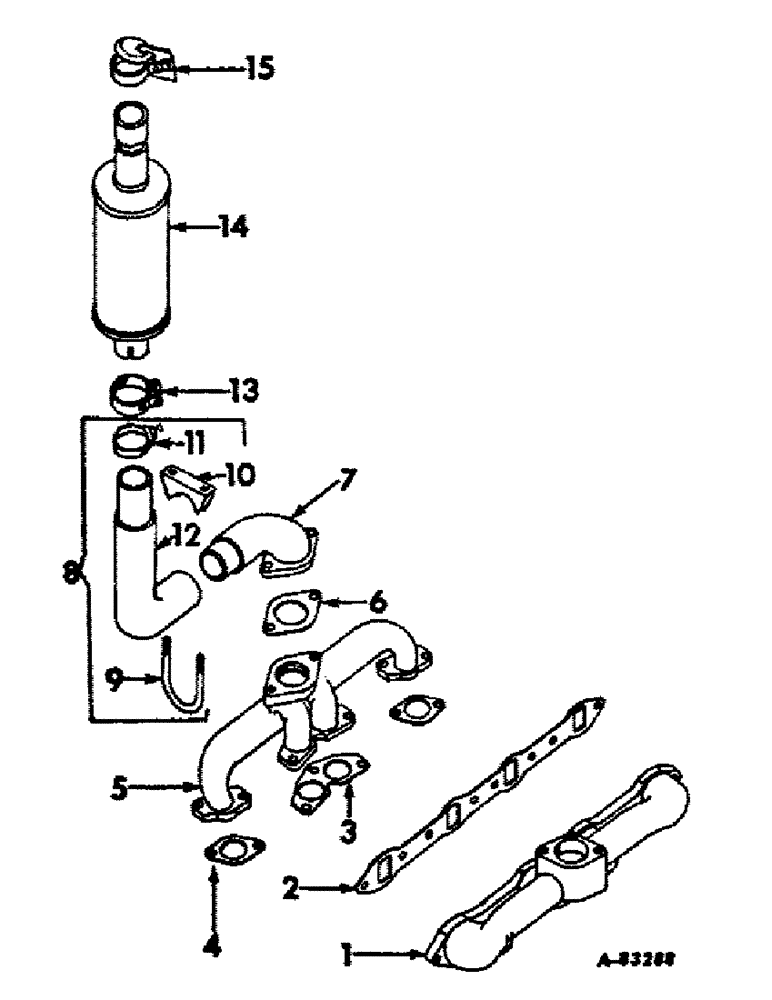

Запчасти Case IH D-188 (C-25) - EXHAUST SYSTEM, 3514 TRACTORS

1

308389R1

MANIFOLD, intake

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

2

308390R1

GASKET

intake manifold

1шт.

3

278314R1

MANIFOLD GASKET

exhaust manifold center

1шт.

4

278313R2

GASKET

exhaust manifold end

2шт.

5

308388R1

MANIFOLD, exhaust

1шт.

39524DA

NUT

manifold stud

7шт.

113934H

WASHER

manifold front stud nut

2шт.

6

369282R2

GASKET

exhaust elbow

1шт.

7

389927R1

ELBOW, exhaust

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

2шт.

8

389924R11

PIPE ASSY., exhaust

1шт.

9

371636R1

U-BOLT, exhaust pipe

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

371637R1

CLAMP, exhaust pipe

1шт.

11

39219H

CLAMP

exhaust pipe gasketing tape

1шт.

12

389916R1

SLEEVE, exhaust pipe gasketing

1шт.

13

403585R1

CLAMP

exhaust muffler, 125E crawlers

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

403551R1

MUFFLER

exhaust, Replaces 370644R92

1шт.

14

403551R1GV

MUFFLER

Value, Muffler

1шт.

15

321574R91

PLUG

CAP ASSY., exhaust

1шт.
